Complete UniFi Solution For The Church: Network, Access, Cameras, Sensors & Audio (1 Year Later)

Infrastructure Summary

This multi-building house of worship deployment integrates a license-free security layout across a high-traffic campus. Operating continuously for twelve months, the infrastructure consolidates a 29-door access control network, high-density surveillance arrays, Bluetooth entry sensors, and a centralized PA system under a single management console backed by an extended 10-hour power failover matrix.

Project at a Glance

Site Overview

• Location & Client: Chinese Christian Church, Thousand Oaks, CA
• Industry Vertical: House of Worship / Non-Profit K-5 Educational Spaces
• Project Scope: One-Year Field Audit & Multi-Node Hardware Expansion

Network & Routing Infrastructure

• Core Gateway Engine: UniFi Dream Machine Pro (UDM Pro)
• Central Management System: UniFi Network Application Core Configuration
• Wireless Access Nodes: UniFi U6 Long Range (U6-LR) Access Points (Dual WiFi & BLE Gateway Role)

Surveillance & Security Hardware

• Access Control Readers: UniFi Access Reader G3 Pro and Standard G3 Readers
• Physical Locking Matrix: Heavy-Duty Magnetic Locks & Internal Electrified Lever Trim Sets
• Perimeter Sensor Array: UniFi Multipurpose Entry Sensors (Bluetooth Low Energy Connectivity)
• Surveillance Cameras: UniFi Protect G5 Turret Cameras (Continuous High-Definition Logging)
• Core Video Management: UniFi Network Video Recorder Pro (UNVR Pro)
• Centralized Power Failover: Heavy-Duty Smart UPS paired with an Extended External Battery Pack
• Audio & PA Integration: Dual UniFi Amps running 4 Indoor/Outdoor Speaker Zones

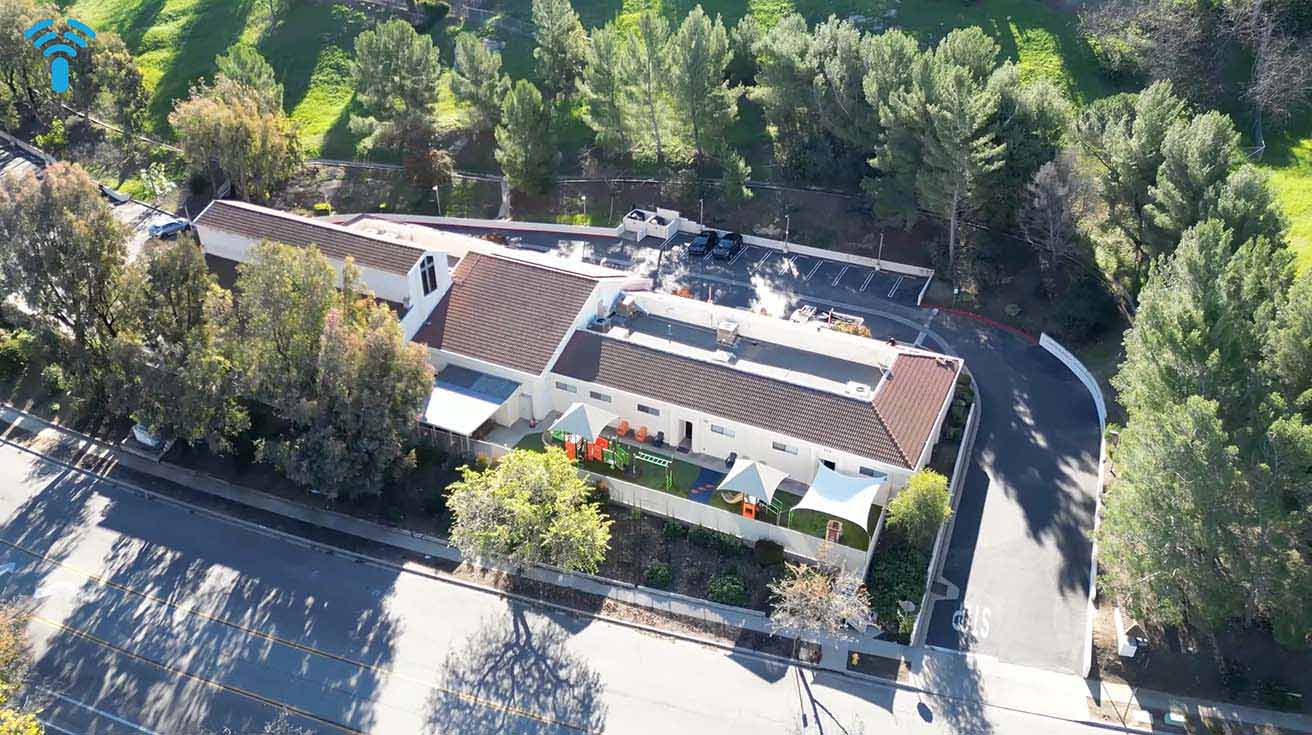

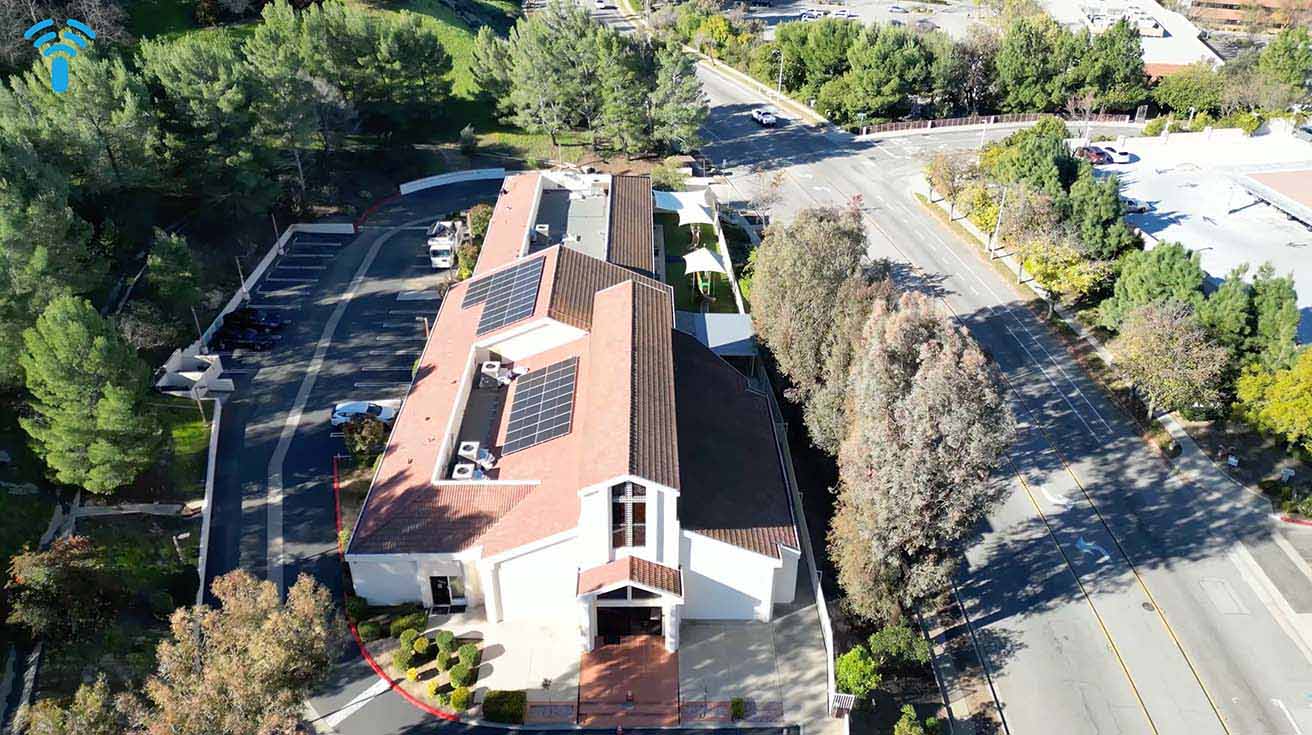

Campus Profile and Client Requirements

Securing a modern multi-building church campus presents unique operational trade-offs. The facilities must remain open, highly accessible, and welcoming to congregants during weekend services, yet rapidly lock down into a secure environment during the week to protect administrative staff, valuable AV production gear, and specialized childcare facilities.

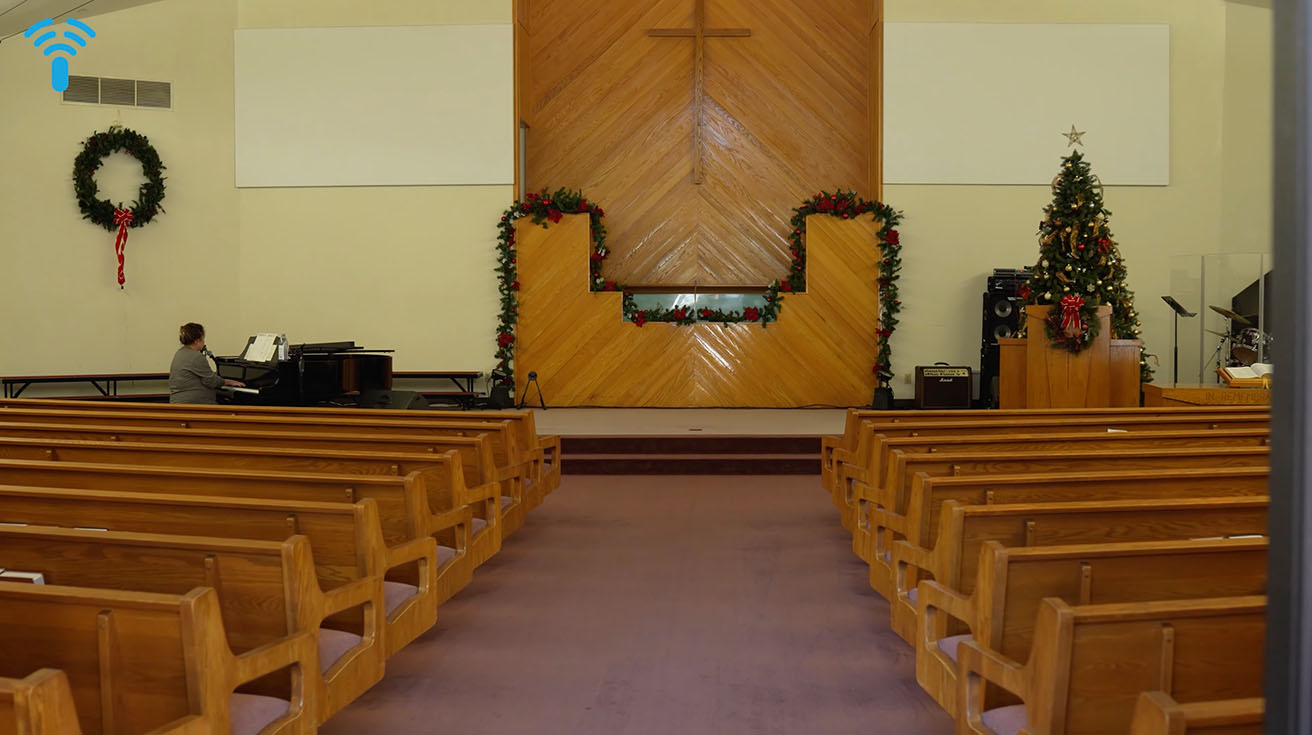

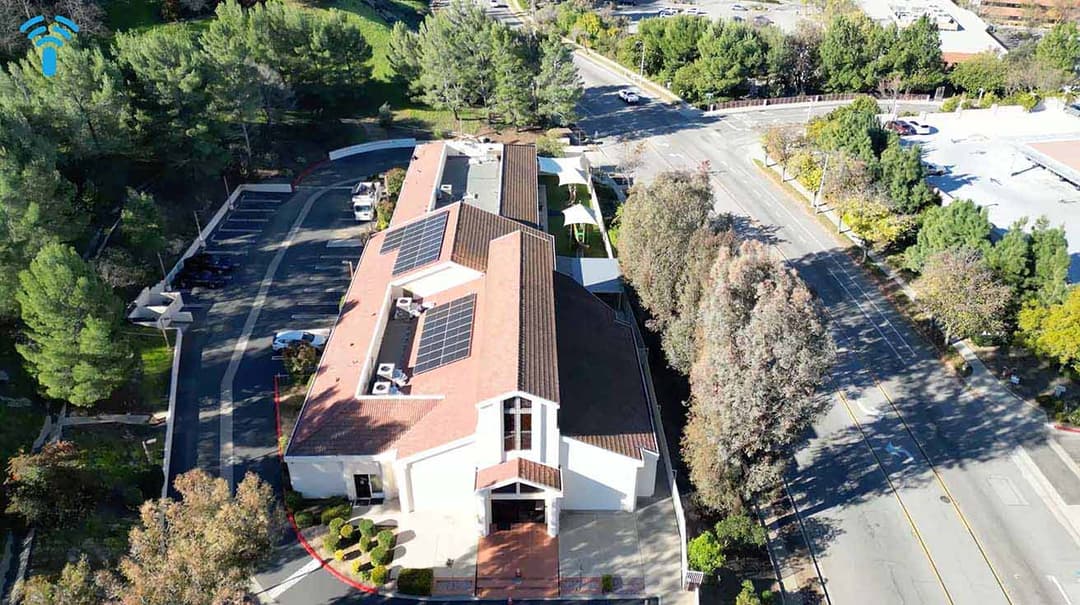

The leadership team at the Chinese Christian Church in Thousand Oaks, California, managed a complex property spanning main worship sanctuaries, administrative offices, a dedicated nursery, and a highly active weekday Sunday school program.

Prior to our technical intervention, the facility faced significant logistical bottlenecks:

• Key Control Fragmentation: Dozens of physical brass master keys were distributed among staff, volunteers, and outside cleaners, leading to zero audit visibility and high re-keying costs whenever a key was misplaced.
• Perimeter Blind Spots: Hallways, child drop-off zones, and secondary parking lot access gates completely lacked coordinated visual monitoring.
• Power Grid Vulnerabilities: The regional electrical grid frequently experienced severe blackouts lasting up to eight hours, which regular consumer battery backups could not sustain, leaving the building vulnerable during utility failures.

To address these vulnerabilities, the church required a comprehensive, centralized church security system that could run without recurring monthly software seat fees, maintain absolute fire code compliance across high-traffic children's spaces, and continue running smoothly during multi-hour grid blackouts.

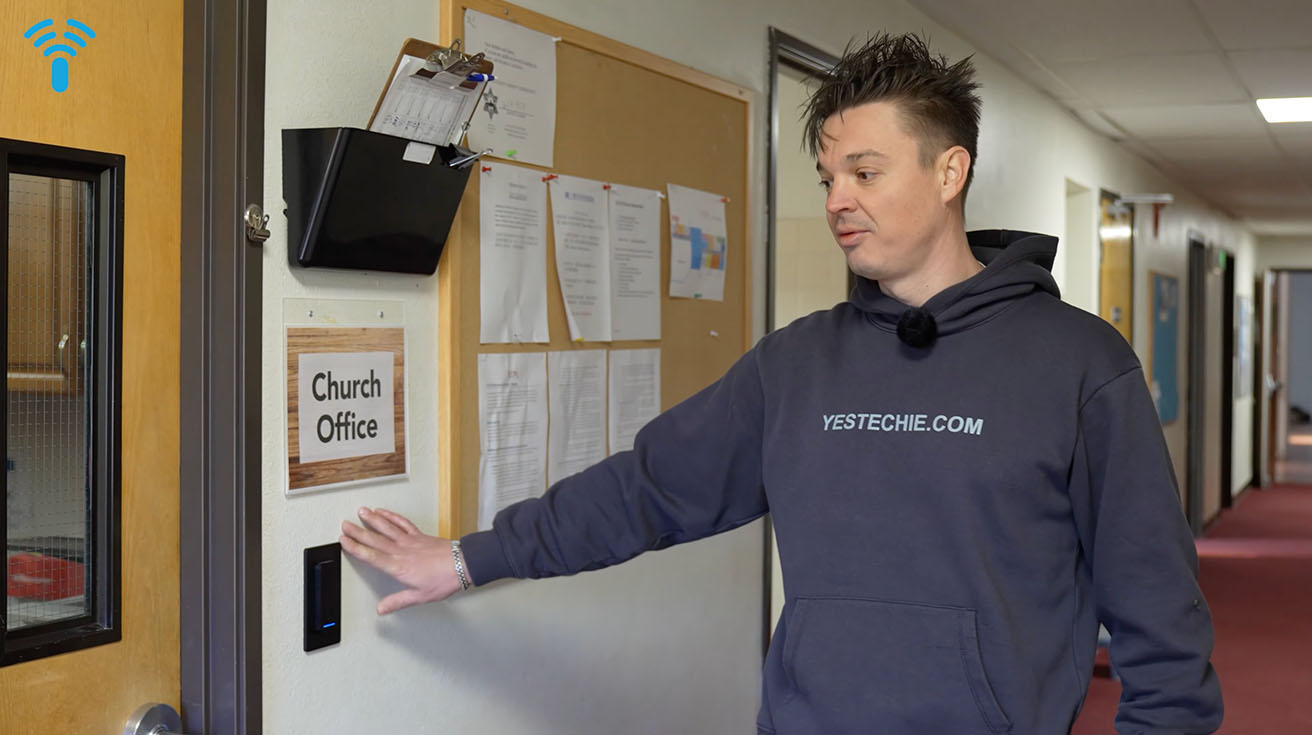

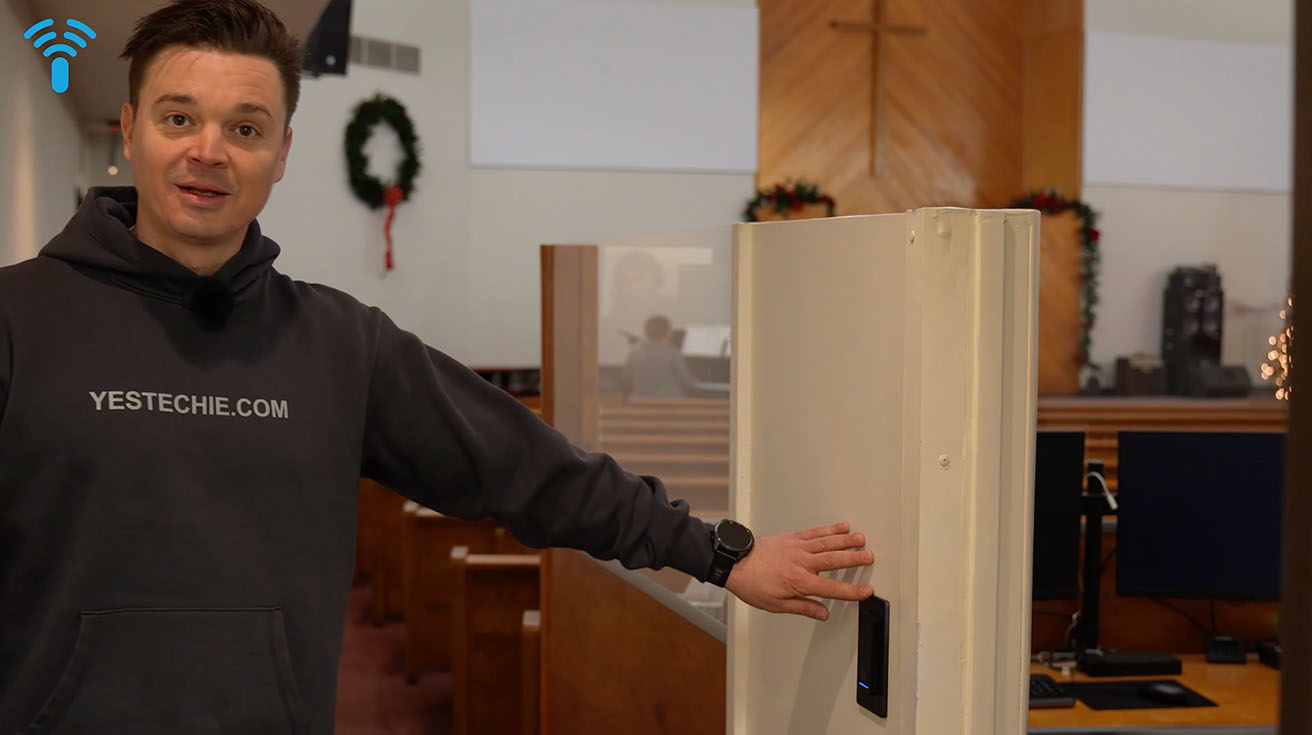

Main Entrance Architecture: Biometric Access Control Integration

The central lobby entrance serves as the primary security checkpoint for the facility. The physical hardware deployed at this opening needed to process hundreds of people on high-traffic weekend mornings without causing congestion, while remaining locked down to the public during administrative hours.

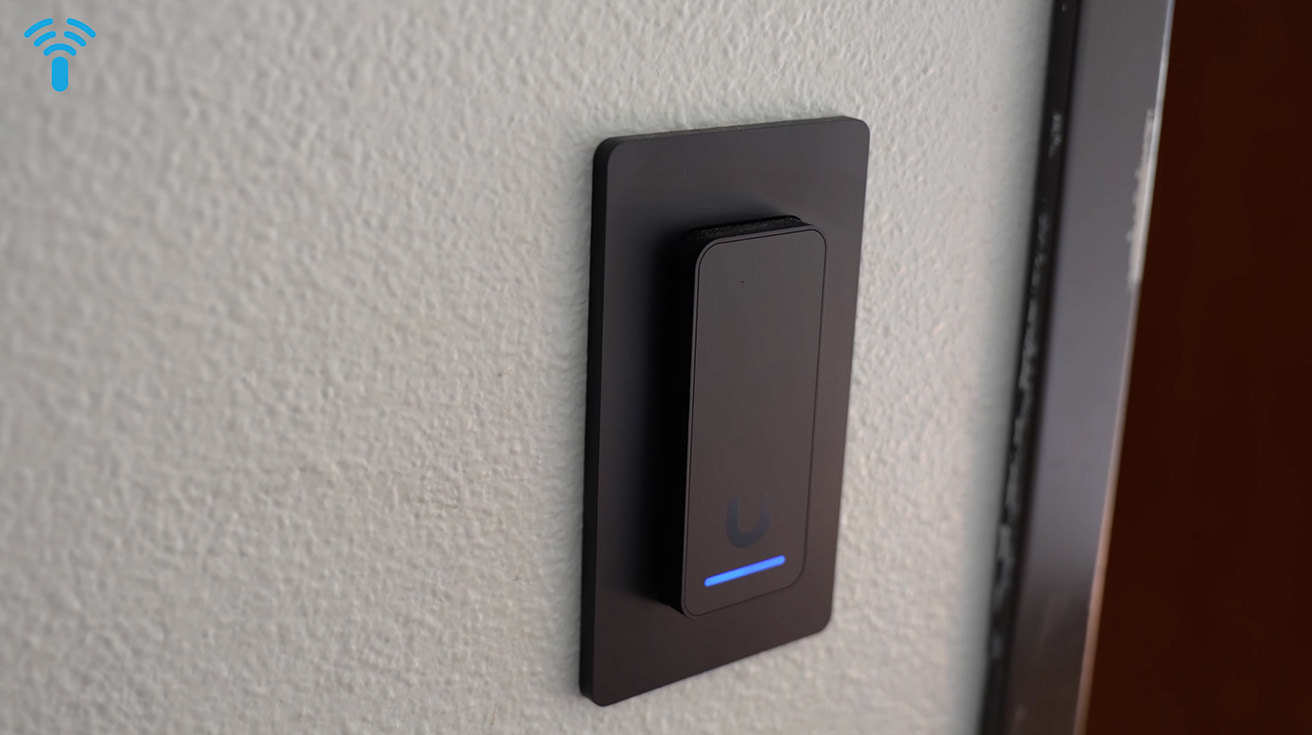

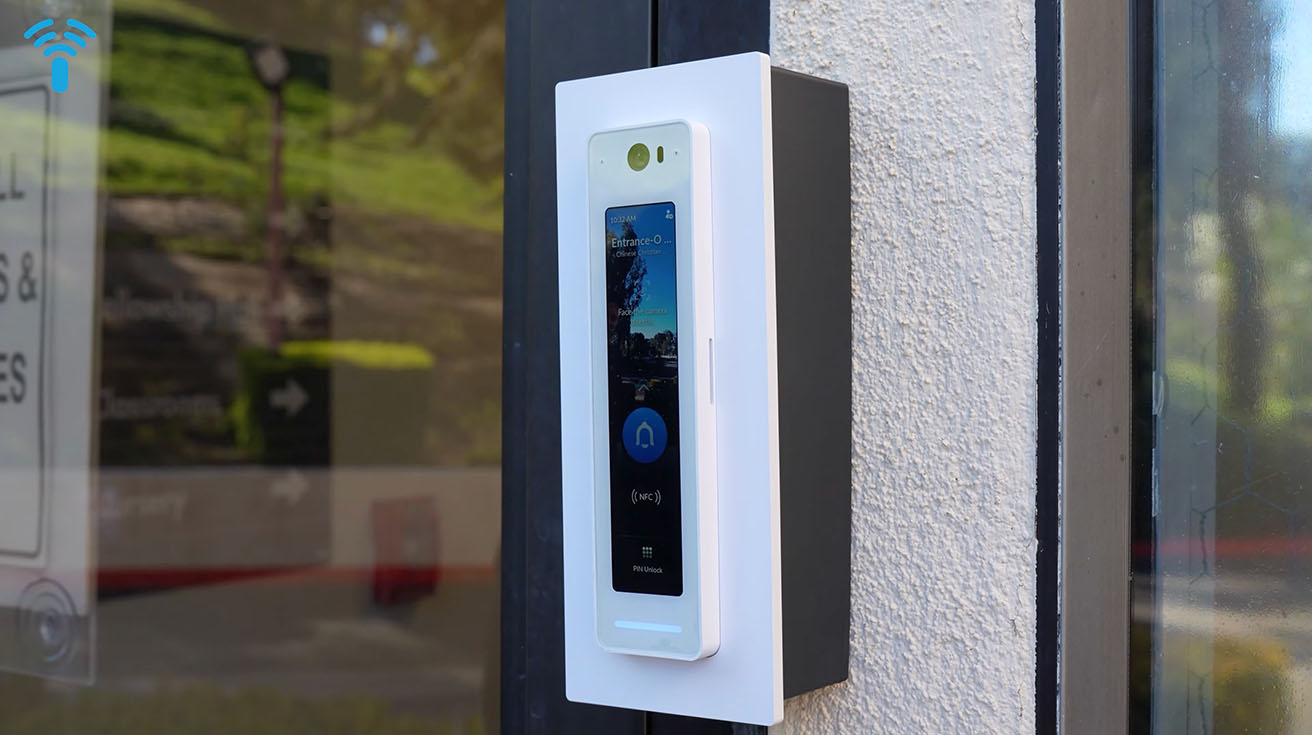

Our low-voltage technicians implemented a specialized commercial door access control configuration built around the UniFi Access Reader G3 Pro. The G2 and G3 Pro readers support rapid authentication methods, including secure NFC cards, mobile smartphone tokens, customizable PIN codes, and automated facial recognition.

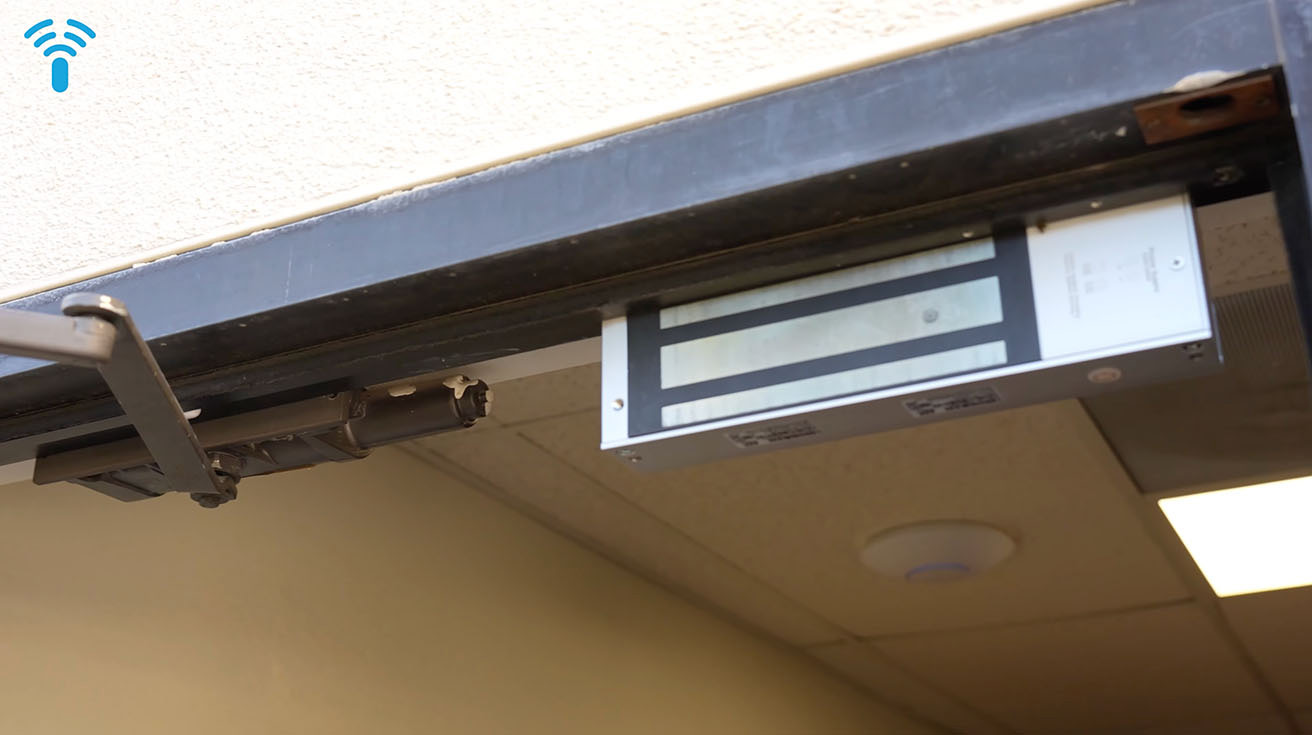

For the physical locking hardware, we anchored a high-grade magnetic lock to the upper structural frame, wired directly into an adjacent UniFi Access Hub. From the secure interior side, the door interfaces with a manual push-to-exit button alongside a standard physical crash handle. This layout ensures that if an emergency arises, anyone can clear the exit route immediately with a single mechanical movement, keeping the entrance fully compliant with municipal safety regulations. On busy Sunday mornings, administrative staff use the central console to change the door schedule to an unlocked state, returning the system to a secure lockdown mode the moment services conclude.

High-Traffic Children's Wing Security & Code Compliance

Protecting the nursery and Sunday school classrooms represents the highest-stakes component of this house of worship layout. Parents trust the facility with their children, and maintaining that safety boundary requires an intelligent, multi-layered approach to access management.

Our field technicians electrified 29 separate doors across the entire facility, focusing heavily on the access pathways into the children's education wing. Rather than relying solely on magnetic locks, we retrofitted several interior doors with internal electrified lever trim sets. Executing this layout required our teams to drill straight through the core of the heavy wood doors, routing low-voltage lines invisibly from the frame hinge knuckles straight to the internal latch solenoids.

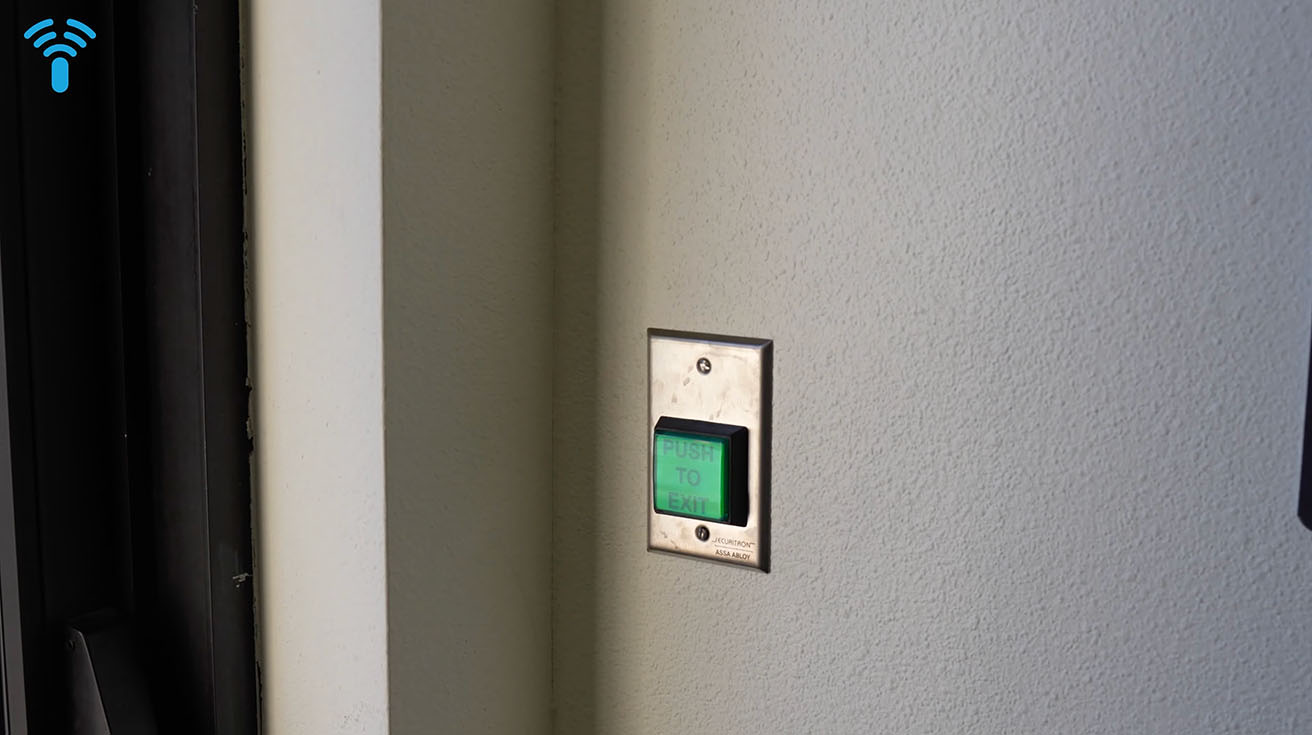

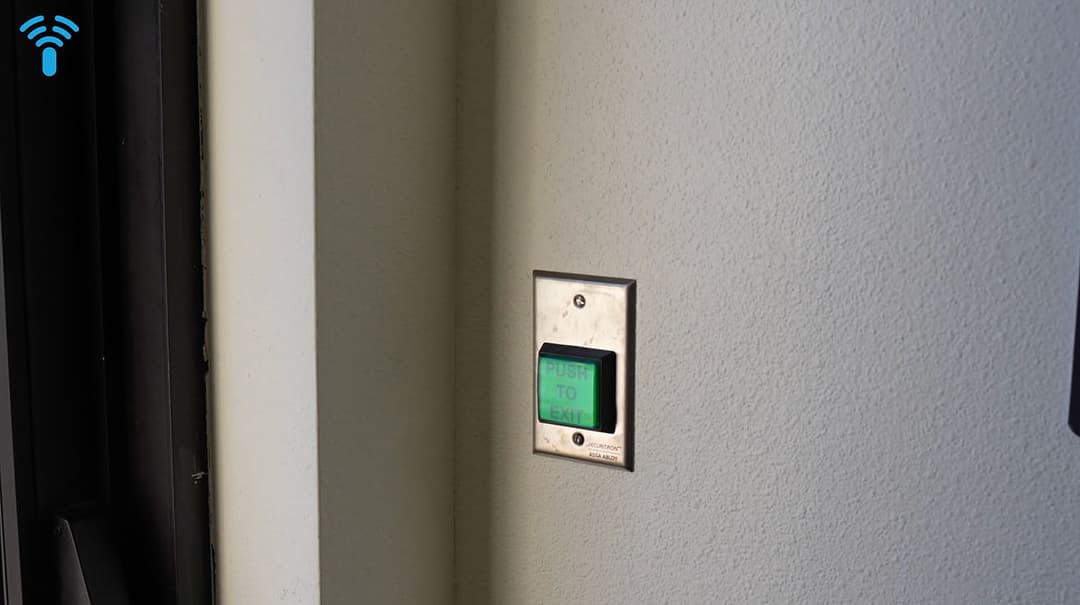

This hardware combination balances security with immediate egress: from the hallway side, access is completely blocked to anyone without active digital permissions or temporary volunteer PIN codes; from the inside, turning the handle mechanically overrides the latch instantly. This layout prevents children from being trapped inside a room during a sudden fire incident or power loss.

To streamline daily operations, the church uses the UniFi Access console to issue temporary, expiring PIN codes to third-party cleaning teams and short-term contractors, completely eliminating the need to give out physical facility keys.

Perimeter Defense: Parking Lot Surveillance and Outdoor Audio

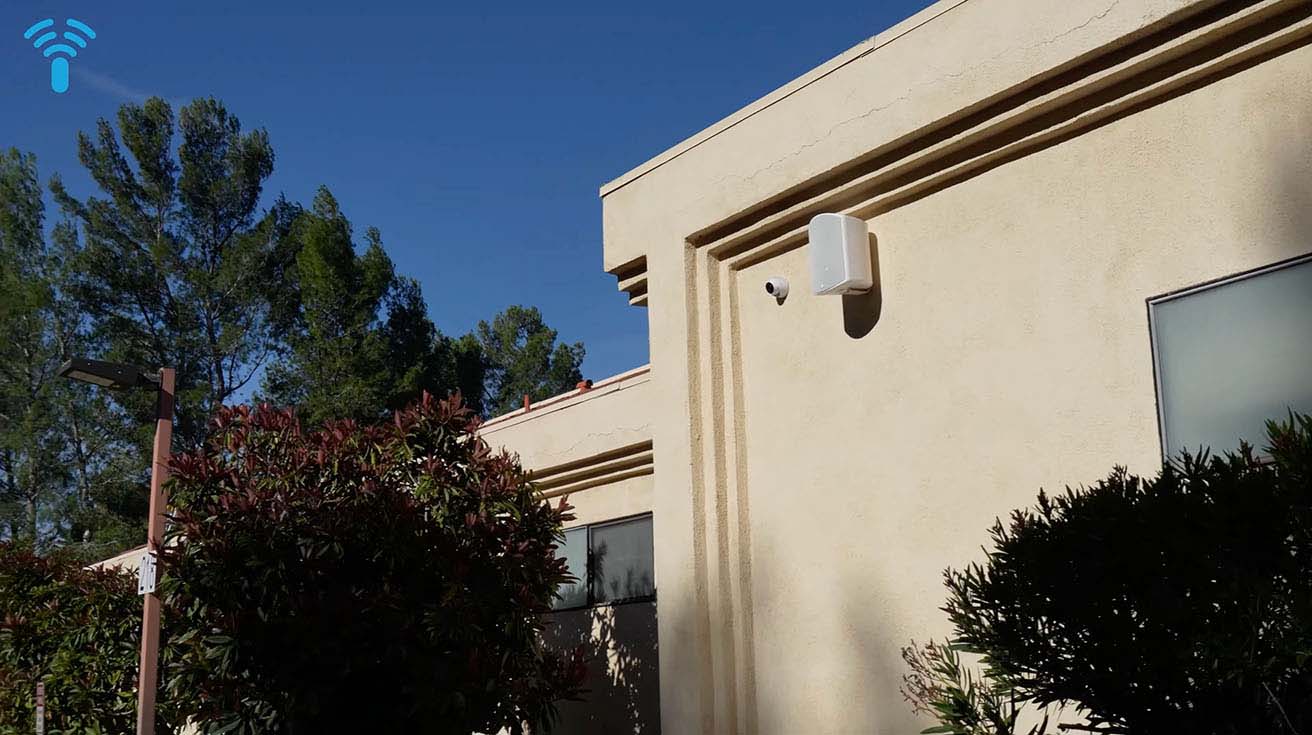

The security perimeter extends beyond the building's physical walls to encompass the high-traffic exterior vehicle zones. On the side fascia of the building, our low-voltage technicians implemented a targeted commercial security camera installation featuring a UniFi Protect G5 Turret camera positioned to overlook the entire side parking lot and its adjacent entrance.

This camera node generates a continuous, high-contrast visual log of all arriving vehicles, logistical deliveries, and individuals entering the property boundaries, complementing the interior surveillance layers. Mounted directly alongside this camera is an all-weather outdoor speaker driven by the central UniFi Amp infrastructure.

This hardware pairing bridges visual monitoring with real-time audio coverage, allowing administrative staff to broadcast background music during outdoor youth programs or execute targeted announcements straight to the parking area through the integrated PA platform. One platform handles Protect, Access, and audio communication, so the church does not have to juggle multiple vendors.

Surveillance Network Layout: Full Area Coverage

To complement the physical door locks, we designed a comprehensive commercial security camera installation that removes blind spots from all internal corridors, classroom entry paths, and perimeter fences.

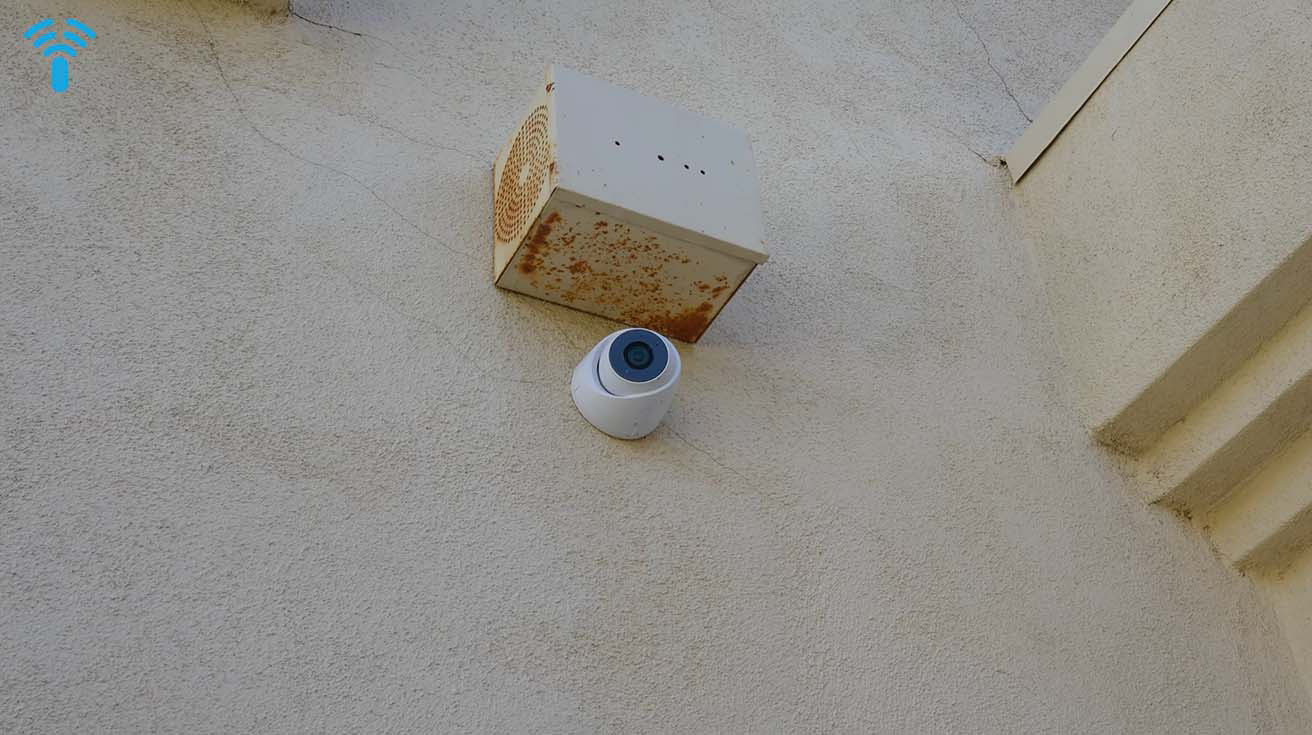

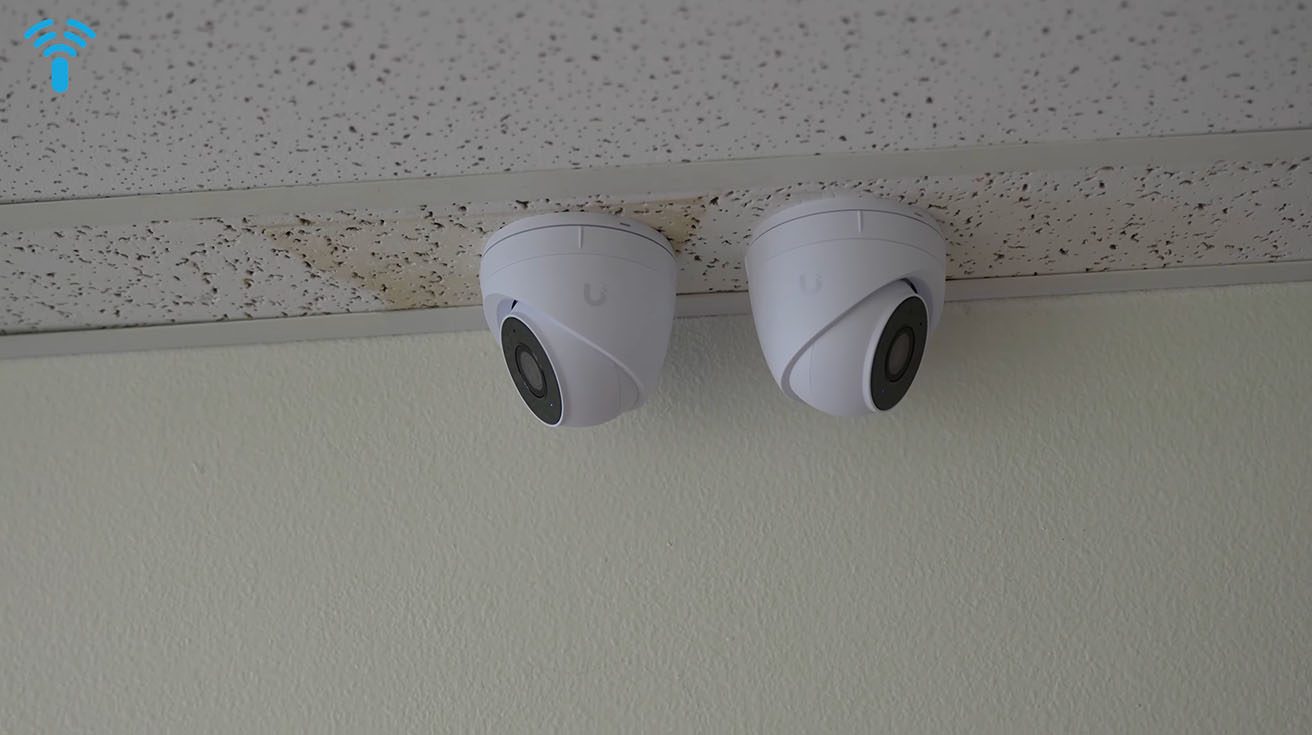

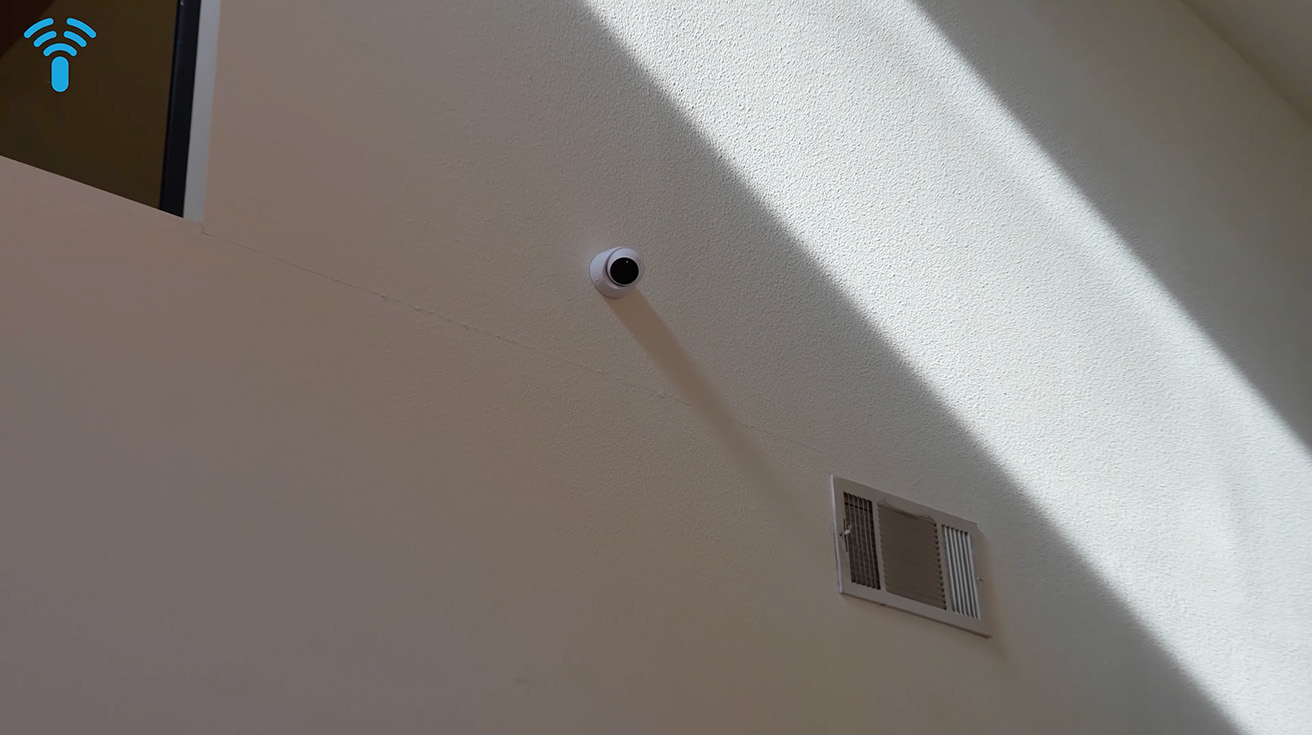

To monitor the facility's internal spaces, we deployed an array of UniFi Protect G5 Turret cameras. These high-definition units capture crisp video with exceptional low-light clarity. While these units operate on a highly stable legacy firmware generation without advanced multi-stage AI classification, they deliver clean, high-contrast imagery that easily tracks faces and clothing profiles across wide common areas.

Every hallway intersection, classroom entrance, and roof access ladder was mapped so that an individual cannot move through the facility without being recorded by at least one camera node. This dense visual layering matches the engineering principles our team utilized when deploying an AI-powered video surveillance network for a high-security warehouse facility, where uncompromised perimeter accountability was the primary metric.

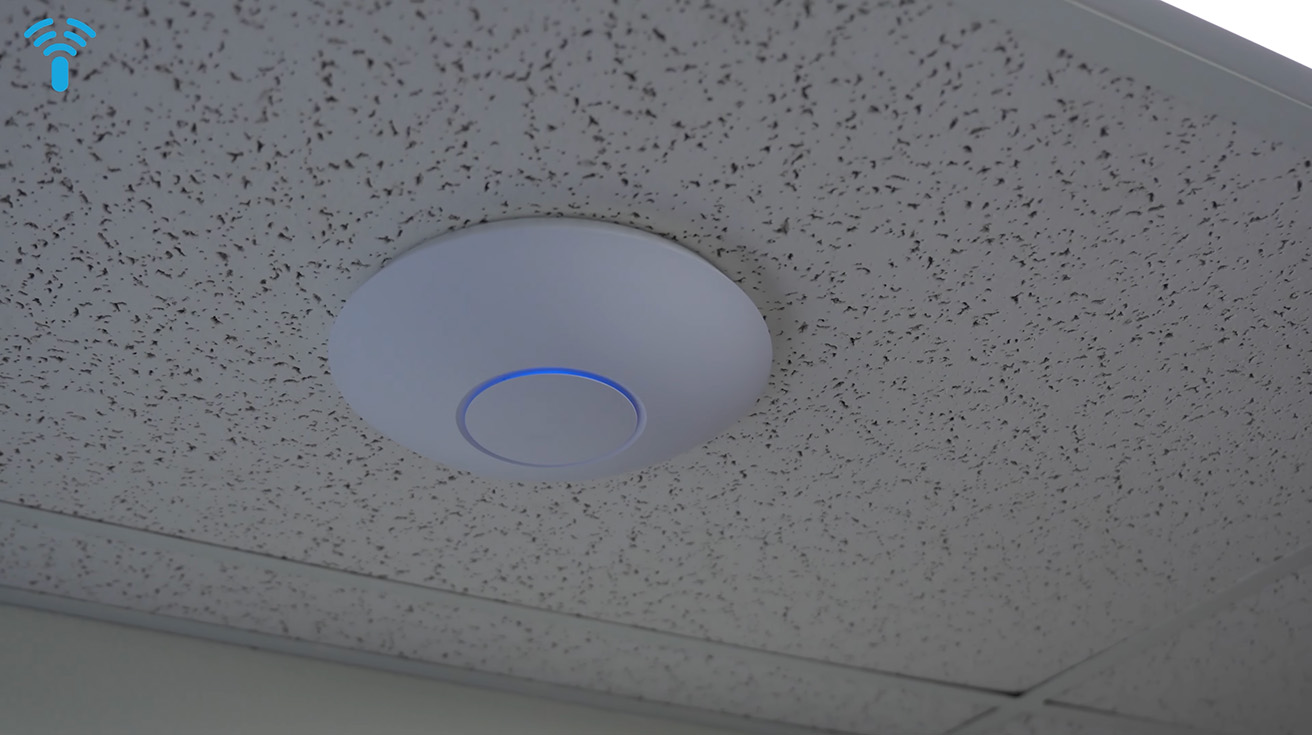

Wireless Infrastructure and BLE Sensor Tracking

The deployment of the wireless access network across the church required an architecture that could handle both standard user data and critical security communication simultaneously. This requirement guided our choice for a professional WiFi installation strategy utilizing UniFi U6 Long Range (U6-LR) access points.

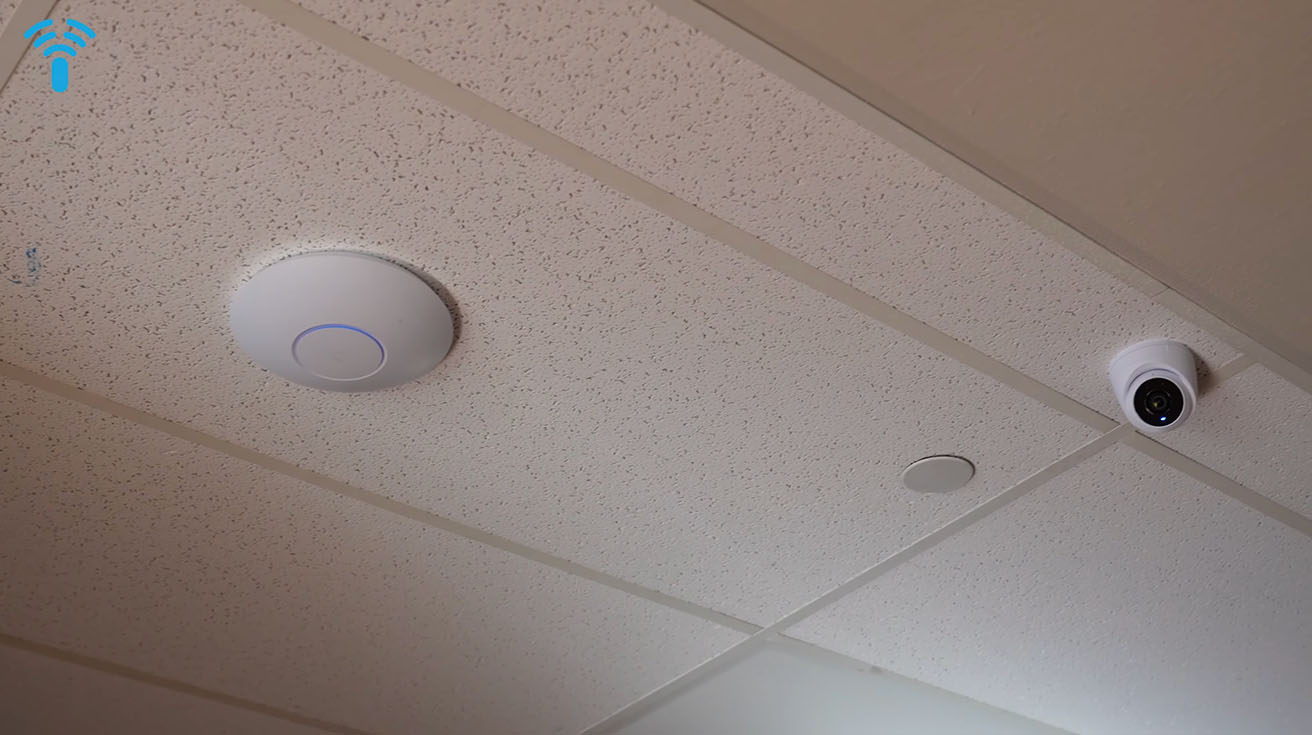

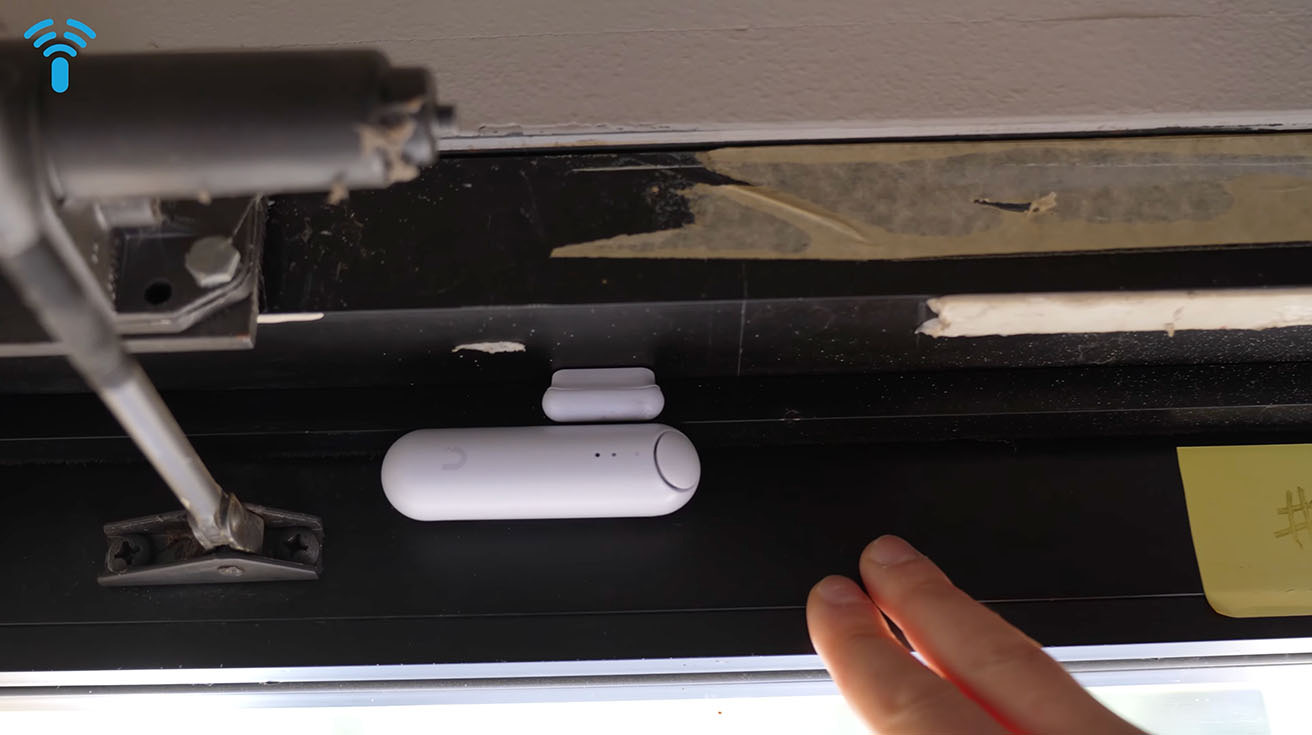

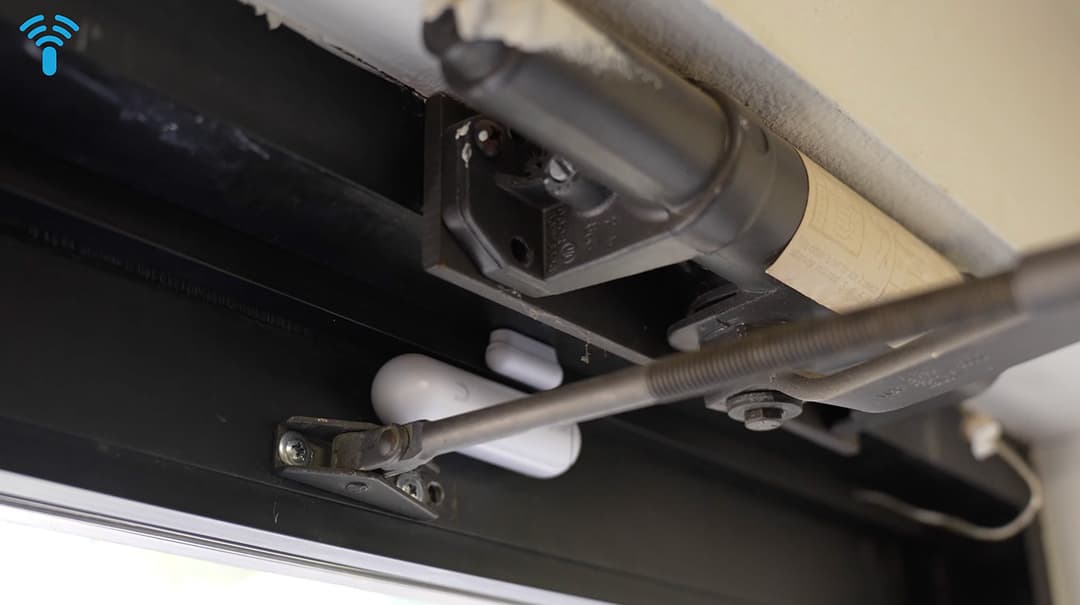

Beyond delivering stable wireless internet to staff and guests, the U6-LR access points act as essential Bluetooth Low Energy (BLE) gateways for the building’s security system. Every exterior door and playground gate across the campus is fitted with a UniFi multipurpose entry sensor. These compact, battery-powered sensors track door states in real time, transmitting their logs over an encrypted BLE link straight to the nearest U6-LR access point.

This integration lets administrators open a single dashboard to check if an instructor propped open a side playground gate or left a kitchen exit unlatched after a midday program. If a door remains unlatched past a designated time window, the system generates an immediate alert on the staff's mobile applications, allowing them to secure the opening before a vulnerability arises.

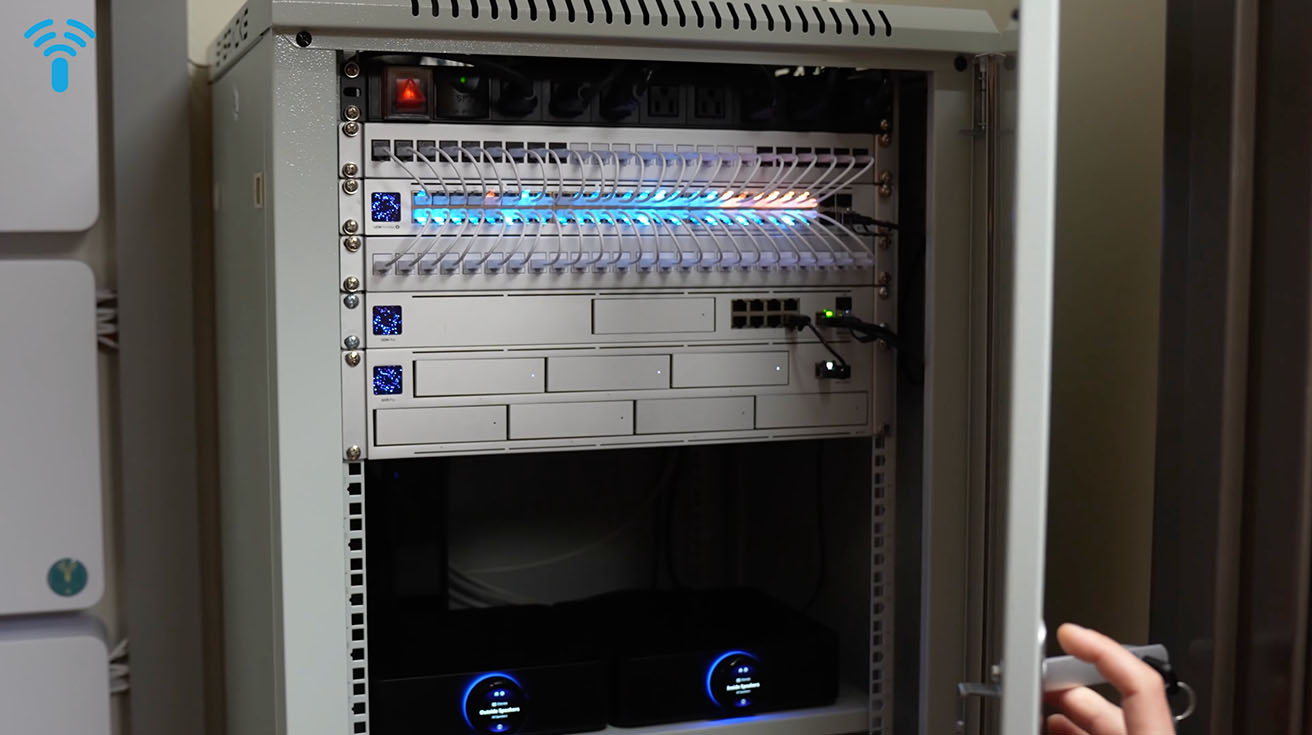

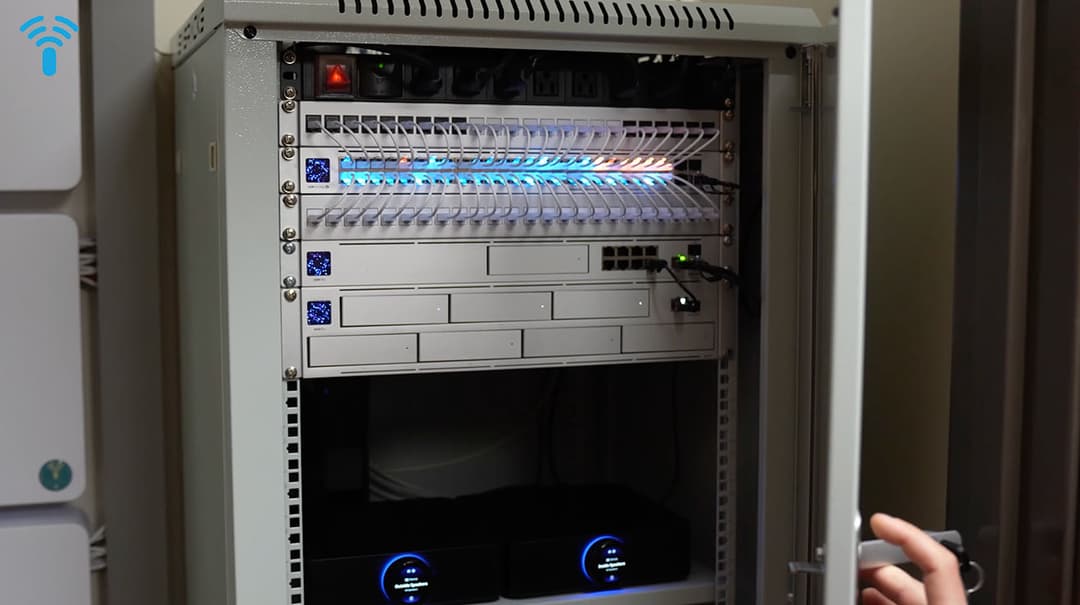

Centralized Core Rack and Power Resilience Architecture

The nerve center for all data processing, power regulation, and audio distribution is housed inside a dedicated IT room, secured by its own Access Reader G3 Pro to block unauthorized entry.

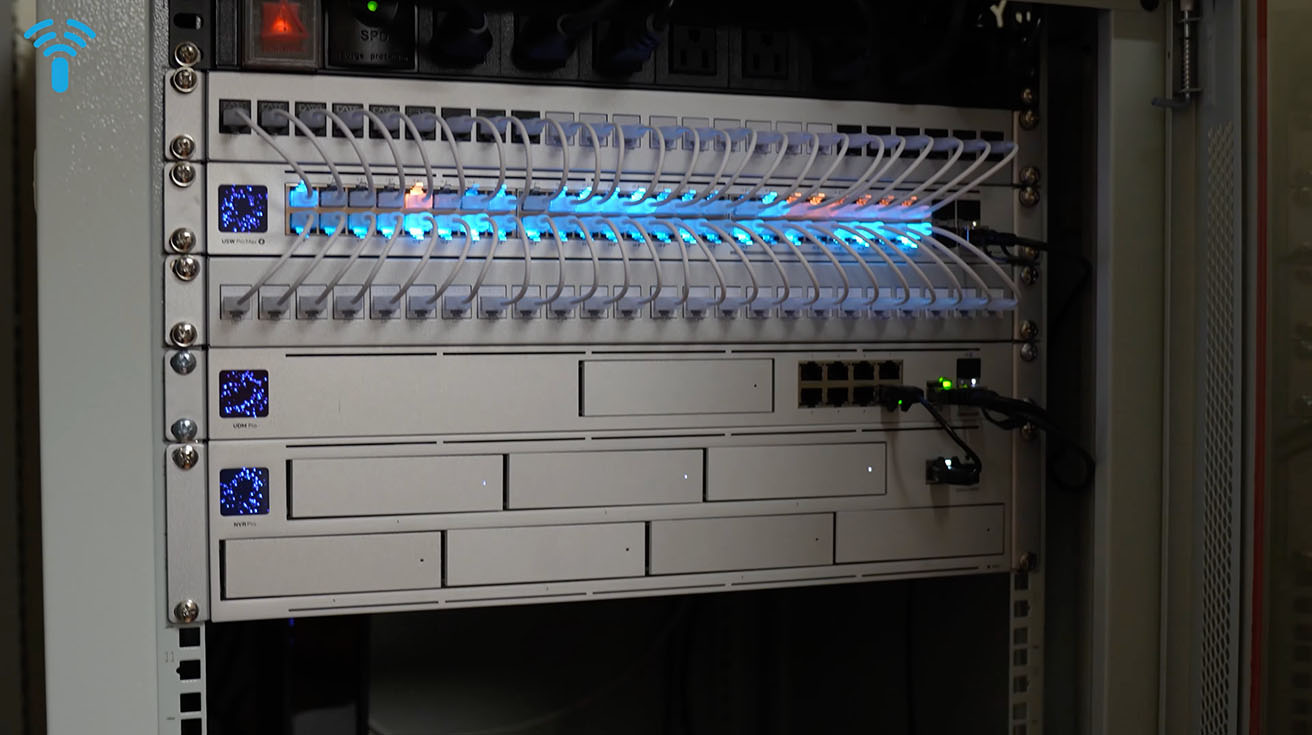

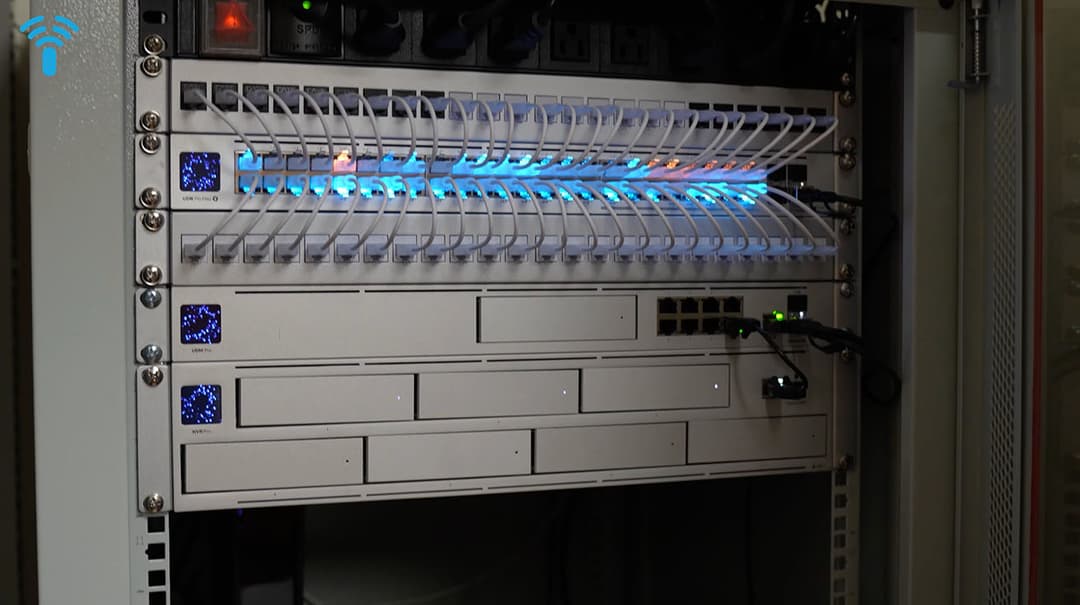

Inside the central low-voltage cabinet, our field engineers constructed a clean, enterprise-grade rack assembly comprising:

• UniFi Dream Machine Pro (UDM Pro): Acts as the main security routing engine, running the global UniFi Network application layer.
• UniFi Network Video Recorder Pro (UNVR Pro): A dedicated, multi-drive storage console that records and indexes video feeds from the Protect cameras and entry logs from the Access nodes.

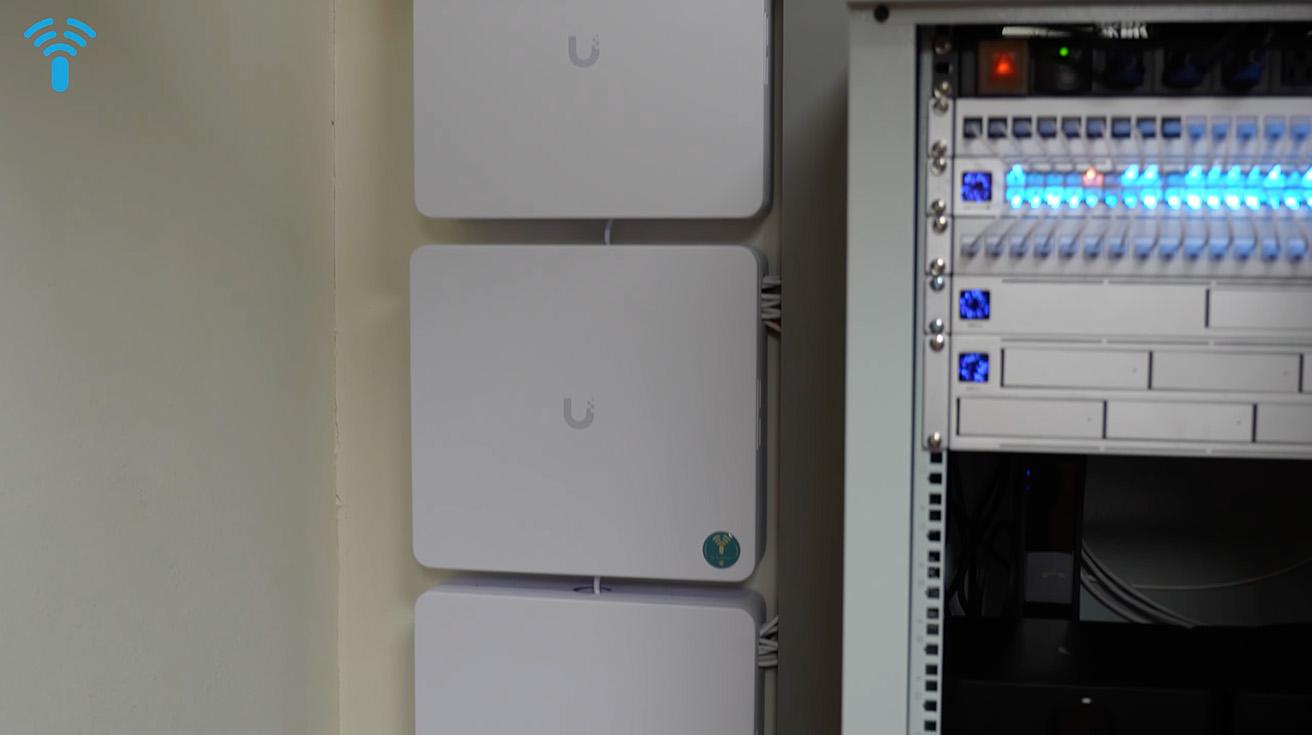

• Enterprise Door Access Hubs: Four multi-port controllers that centralize the electrical connections and sensor loops for the 29 electrified doors.

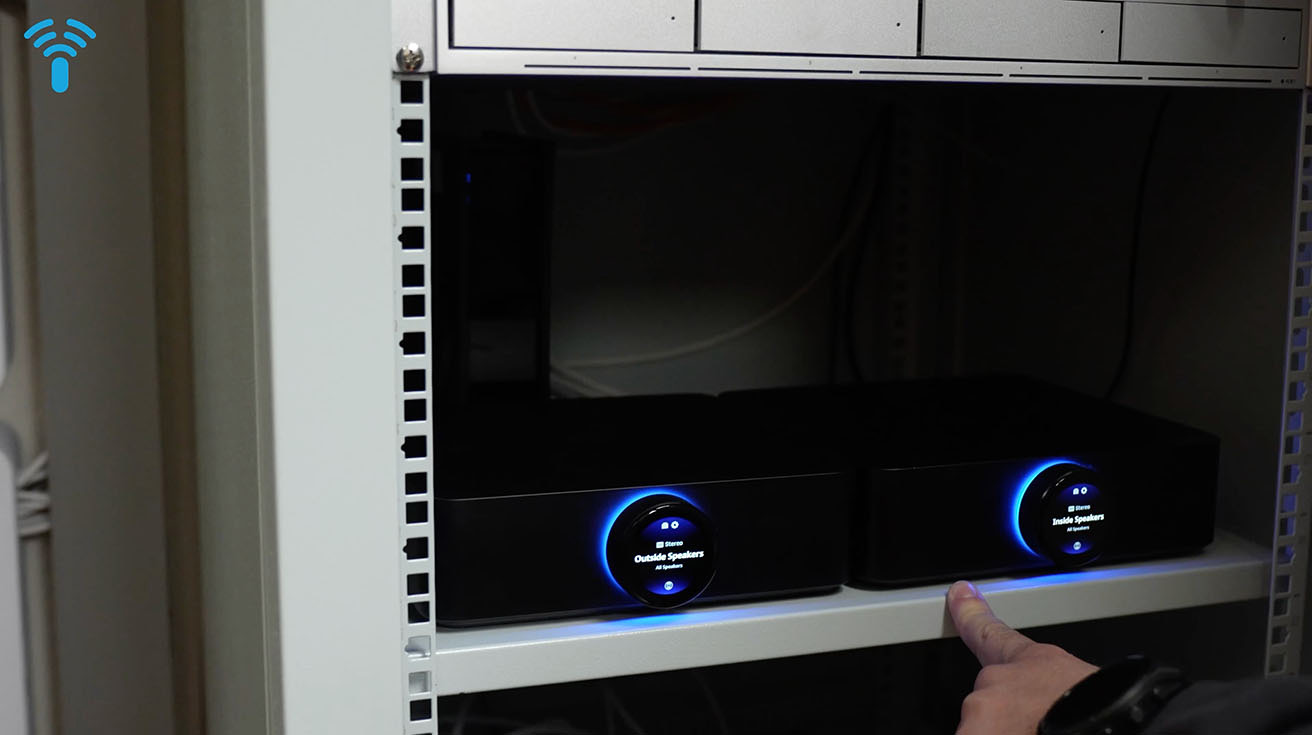

• UniFi Amps: Two dual-zone digital amplifiers integrated straight into the network core to run the building's custom Public Address (PA) system.

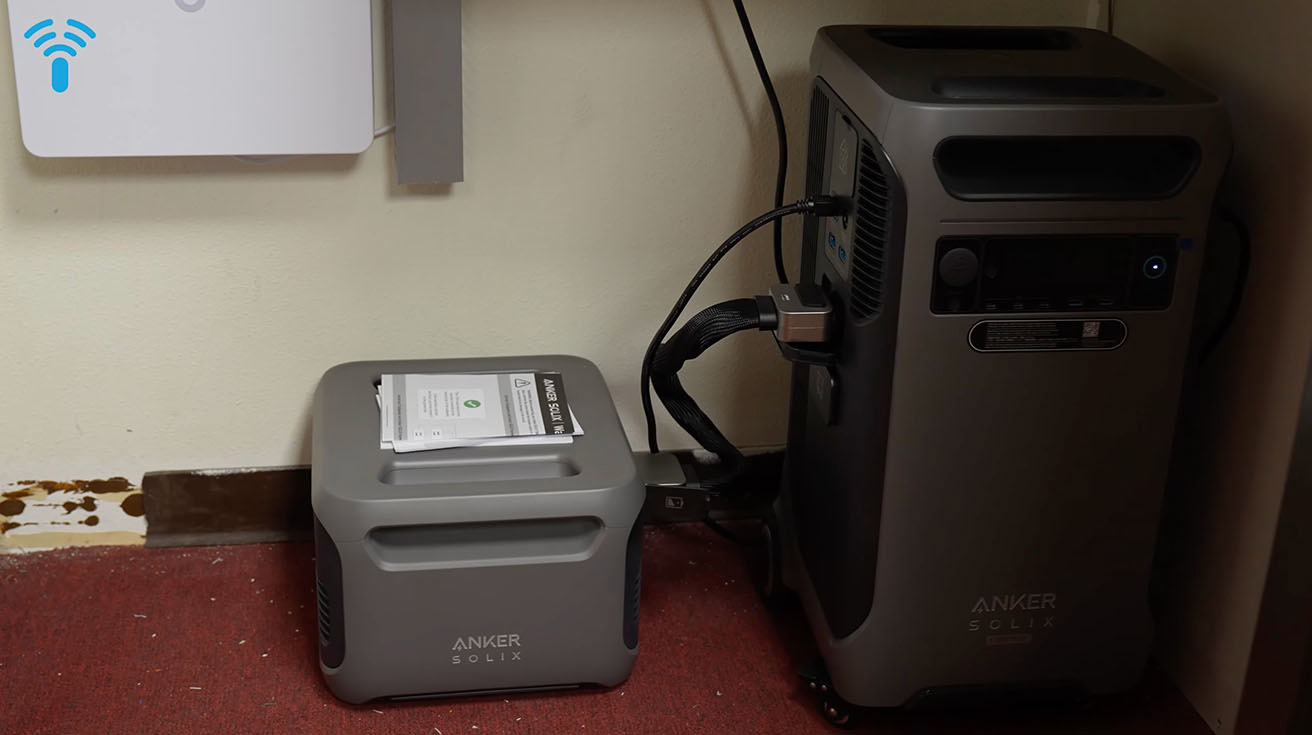

To address the region's history of multi-hour utility blackouts, we deployed an uncompromised managed network infrastructure power strategy. The master equipment rack is backed by a heavy-duty Uninterruptible Power Supply (UPS) paired with an extended external battery pack. This power system was calculated and configured to keep the gateway, core switches, UNVR Pro storage arrays, 29-door access hubs, and critical U6-LR access points fully operational for 8 to 10 hours during a blackout. If the neighborhood loses municipal power, the church's entry readers, safety sensors, and internal cameras continue running without dropping a single packet.

Integrated PA System and Audio Distribution

The church required a reliable Public Address framework to handle both background music zoning during youth activities and clear, facility-wide announcements during structural emergencies. We solved this requirement by installing two UniFi Amps connected to a total of four high-output indoor and outdoor speaker zones.

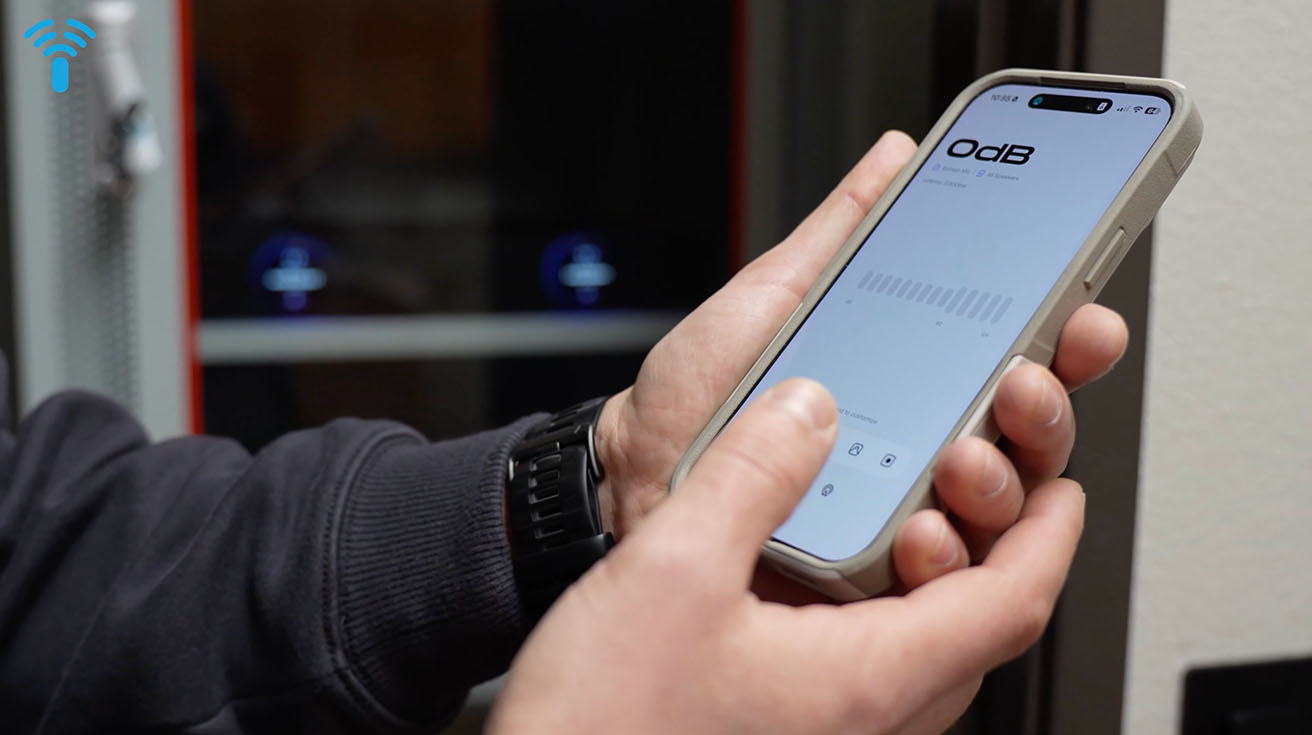

The audio framework interfaces with a streamlined mobile microphone application. With a single tap on a smartphone, administrative staff can broadcast real-time verbal announcements across the front parking lot, side fields, and main interior hallways simultaneously.

While Ubiquiti has since released dedicated UniFi Protect Horn speakers for automated deterrence, our dual-amp configuration delivers a flexible solution for this facility, allowing staff to route high-fidelity audio streams and emergency voice alerts through the exact same hardware footprint. To give the church immediate support, we affixed a custom support contact node onto the face of the server cabinet, allowing the ministry's facilities team to establish a direct voice link with our help desk with a two-click phone tap.

Client Feedback: Operational Impact and Real-World Usability

Rey has served as the general contractor for the Chinese Christian Church for over 14 years. His extensive operational scope requires him to move continuously between different campus structures, manage inventory shipments, and coordinate on-site arrivals with multiple third-party low-voltage and maintenance vendors. He interacts directly with nearly every structural opening on the property multiple times a day.

Before the centralized UniFi integration, managing the property required sorting through a massive ring of mechanical keys, manual lockout tracking, and zero assurance that a side exit wasn't propped open overnight. Today, he carries zero brass master keys, accessing any secure zone instantly via facial identification or a smartphone tap. The automated hardware ensures the perimeters lock down instantly the moment a frame closes behind him.

Furthermore, the UniFi Protect camera array functions as an essential project accountability tool. If an outside contractor claims they completed a specific facility task at a designated time, Rey can audit and review the recorded timeline remotely within the application to verify the work without needing to be physically present.

"It has been absolutely magnificent to use. I'm constantly having to go from door to door, in and out, carrying things, and it's so effective and efficient by electronically being able to just use a fast key to get in and out with a touch. It's made my life a lot easier. The doors lock immediately behind me, keeping people out that shouldn't come in.

I can also use the cameras if I want to see if someone has been here that I requested to come. I can go back and replay to check on things that should have been done."

— Rey, General Contractor, Chinese Christian Church

One-Year Operational Verdict

After 12 months of daily use, the unified system has radically changed how the Chinese Christian Church manages its security:

• Zero Licensing Overhead: Operating an extensive 29-door and multi-camera network without paying monthly or annual software subscriptions has allowed the ministry to reallocate thousands of dollars back to community programs.
• Flawless Power Failover: The extended UPS battery layout has successfully carried the security core through multiple real-world power outages, keeping the locks secured and the cameras recording without a single system crash.
• Enhanced Facility Visibility: The combination of G5 Turret cameras and BLE door sensors gives administrative staff full control over the property state, allowing them to verify contractor arrivals and check for unlatched doors right from a smartphone.

Partner Perspective

Oleg Bordiian, Founder and Lead Auditor at Pipl Systems, joined our low-voltage engineering team on-site in Thousand Oaks to evaluate how the system performed after a full year of real-world use:

"Most project profiles in the physical security sector are captured the afternoon the installation wraps up, showing a clean system that hasn't faced true operational wear. We partnered with YesTechie to audit this church deployment precisely one year after the field team signed off on the initial build.

Reviewing the site after 12 months of constant use by staff, volunteers, and children proves the value of professional installation. The 29-door access control layout and the U6-LR BLE sensor network continue to operate with excellent stability. This long-term audit shows how a properly integrated UniFi platform handles the real-world demands of a busy multi-building facility."

— Oleg Bordiian, Founder of Pipl Systems (Review the complete B2B system evaluation via Oleg's Church Infrastructure Performance Audit on LinkedIn).

About YesTechie

YesTechie operates as a premium commercial low-voltage contracting firm based in Los Angeles, California. As certified Ubiquiti deployment specialists, our engineers design, implement, and support integrated physical security networks, smart access control arrays, high-density enterprise WiFi systems, and commercial automation platforms for houses of worship, schools, logistics centers, and multi-building corporate campuses.

We approach building security by aligning modern hardware choices with long-term operational needs and municipal code rules. Whether updating a multi-floor corporate headquarters layout or implementing a full IT modernization for a food production plant, our team ensures your technology works reliably from day one. Explore our full portfolio of engineering capabilities by browsing our complete commercial integration services index.

Engineering Consultation: Secure Your Campus Infrastructure

Managing a multi-use commercial or non-profit campus requires a security architecture that keeps pathways safe and code-compliant without burdening your staff with separate software platforms and ongoing subscription fees. Guessing on door hardware or miscalculating your power backup capacity can lead to system failures, fire code fines, or building vulnerabilities during a blackout.

Our engineering team delivers complete, end-to-end design and low-voltage integration services tailored to your property's specific layout and compliance rules. To eliminate coverage blind spots, automate your access tracking, and review your facility's power resilience, connect with our layout group today to schedule a comprehensive technical site survey.

• Strategic Intake: Request a Professional On-Site Security & Network Layout Consultation

To source the exact enterprise-grade hardware assets utilized across this house of worship infrastructure project, you can browse the official inventory directly via our verified affiliate link: Official Ubiquiti Enterprise Store.

thousandoakschurch/UniFi_system_cover_hallway.jpg

Field Tour: Watch the Full System Walkthrough

To see the physical hardware layout across this Thousand Oaks campus and review the performance of the core server rack during our one-year audit, watch our complete field video here:

FAQ: Church Security Systems & Hardware Integration

Why is a license-free model a major advantage for non-profit and church security systems?

Traditional commercial access control and camera platforms demand ongoing monthly or annual software subscription fees for every active user profile, door path, and connected camera node. Over time, these seat fees can cost thousands of dollars annually, straining non-profit operational budgets. The UniFi platform operates on a completely license-free model, meaning you buy the physical hardware assets once and retain full access to all software updates, user additions, and cloud remote management tools without recurring fees.

How do electrified doors maintain compliance with local fire and life safety codes?

Fire safety regulations require that building occupants can always exit a room instantly during an emergency without needing special keys, digital tokens, or technical knowledge. To satisfy this requirement, our low-voltage teams configure doors using mechanical push-to-exit bars or internal electrified lever sets. These configurations keep the door locked to unauthorized traffic from the outside, but allow the interior handle to mechanically retract the latch instantly when turned, ensuring unhindered exit during a fire or utility failure.

What is the operational benefit of using enterprise access points as BLE gateways?

The UniFi U6 Long Range access point houses built-in Bluetooth Low Energy (BLE) radios alongside standard high-speed Wi-Fi antennas. This allows the access points to pull double duty: they deliver wireless internet to your staff while functioning as central listening nodes for wireless entry sensors mounted on distant exterior doors and gates. This dual-purpose design removes the need to buy separate wireless sensor hubs, cutting down on equipment costs and simplifying your device layout.

Can a church security system continue to run safely during an extended 8-hour power outage?

Yes, provided the central distribution rack is engineered with an extended power backup system. Standard computer battery backups are only sized to keep equipment running for 15 to 30 minutes, so files can be saved before a shutdown. By pairing a commercial Uninterruptible Power Supply (UPS) with an extended external battery pack, we can keep core gateways, network video recorders, PoE camera switches, and 29-door access hubs running smoothly for up to 10 hours during a neighborhood power outage.

What is the difference between an electrified lever, a set, and a standard magnetic lock?

A magnetic lock uses an intense electromagnetic plate mounted to the upper frame to keep the door held closed with massive physical force, requiring an electrical break (like a push-to-exit button) to release the bond. An electrified lever lockset houses its electronic release solenoid entirely inside the door's internal latch mechanism. Electrified levers provide a cleaner look with no visible hardware on the frame, deliver higher physical strength, and allow users to exit instantly using a standard door handle.
