Deploying UniFi Across 8 School Buildings (Santa Monica)

Securing a modern educational facility requires an infrastructure that balances data integrity with immediate physical site visibility. It demands a highly scalable, robust, and completely isolated topology capable of handling continuous high-definition video traffic without degrading the bandwidth needed for daily classroom learning.

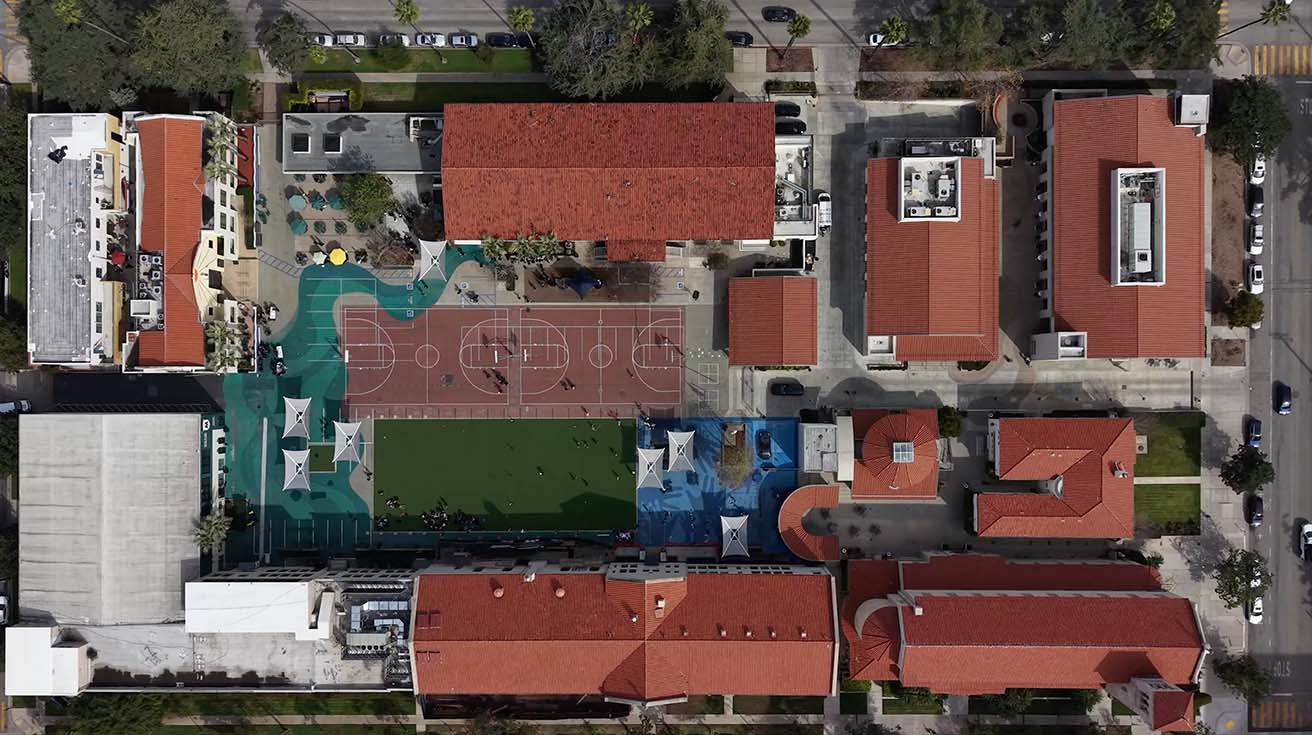

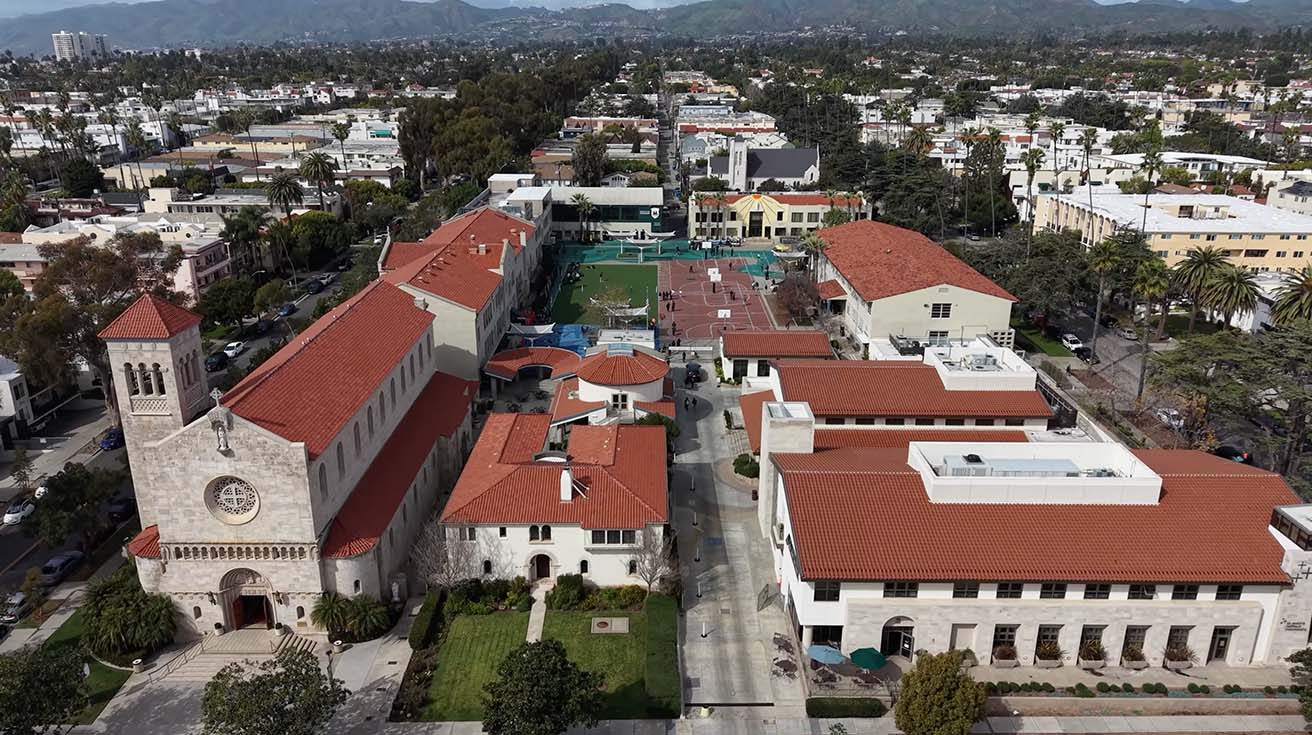

Our engineering team at YesTechie finalized Phase 1 of a massive campus-wide modernization project at St. Monica Preparatory, a prominent Catholic school located in the heart of Santa Monica, California. The physical layout of the campus spans eight detached buildings alongside expansive outdoor common zones and centralized playgrounds.

This project profile details the technical design used to construct a reliable backbone for the facility's school security network infrastructure, focusing on fiber-optic distribution nodes, localized switching matrices, and high-performance edge AI surveillance hardware.

Project at a Glance

Site Overview

• Location & Client: St. Monica Preparatory, Santa Monica, CA
• Industry Vertical: K-12 Private Education Sector
• Project Scope: Phase 1 — Isolated Security Core & Perimeter Surveillance

Network & Routing Infrastructure

• Core Engine: UniFi Dream Machine Pro Max (UDM Pro Max)
• Fiber Distribution: UniFi Pro Aggregation Switches (10 Gbps SFP+ Backbone)
• PoE Access Layer: USW Pro Max Switches (Dedicated Per-Floor Nodes)

Surveillance & Storage Hardware

• Camera Deployment: G6 Pro Bullets (with Vision Enhancers) & AI-PTZ Industrial
• Data Retention: Dedicated UniFi Enterprise NVR (ENVR)
• System Roadmap: Expansion-ready for UniFi Access door hardware and indoor subnets

Campus Introduction & Project Scope

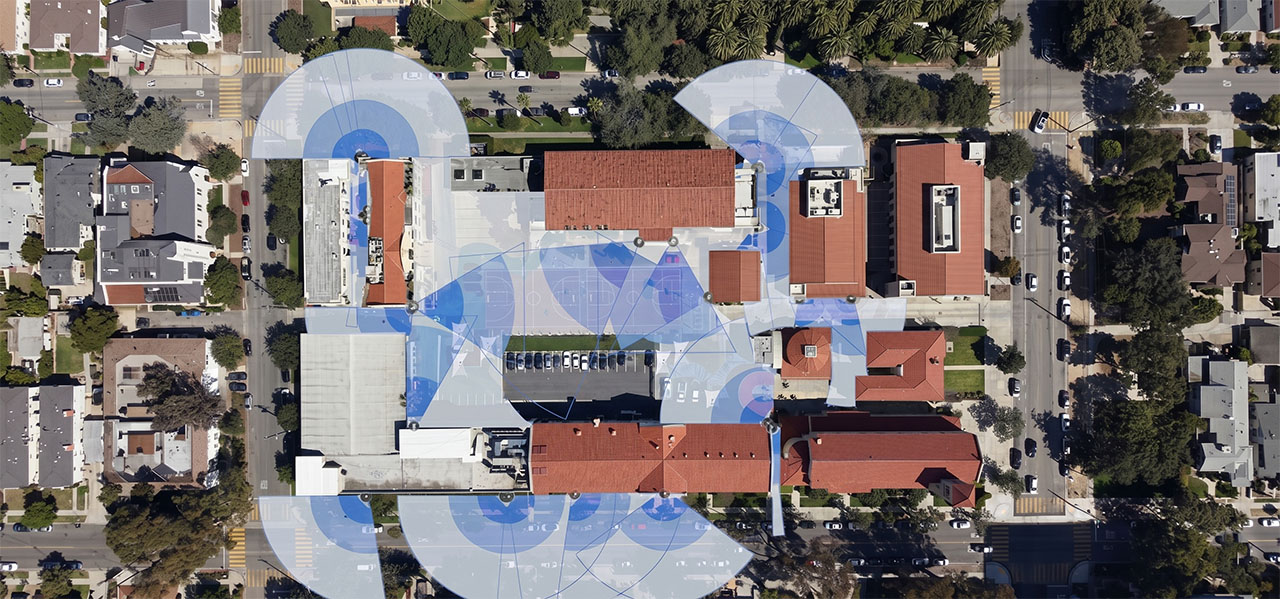

The physical landscape of St. Monica Preparatory presents clear challenges for standard wireless or copper-based surveillance systems. Spanning eight individual buildings with dense concrete walls and wide outdoor play spaces, the property layout could not rely on basic network links without risking severe frame drops and packet loss.

Our main directive for Phase 1 was to engineer a dedicated security network that remains completely isolated from the school's primary administrative and student data subnets. This separation is more than an engineering preference; it is a vital step toward achieving K-12 physical security compliance.

By running surveillance traffic on an entirely independent network segment, we protect sensitive campus video logs from local user access while ensuring that constant high-volume 4K camera streams never interrupt classroom internet access. This technical strategy mirrors the design principles our team used when implementing a comprehensive network modernization project for a large-scale logistics facility.

Camera Deployment Details: Superior Nighttime Performance

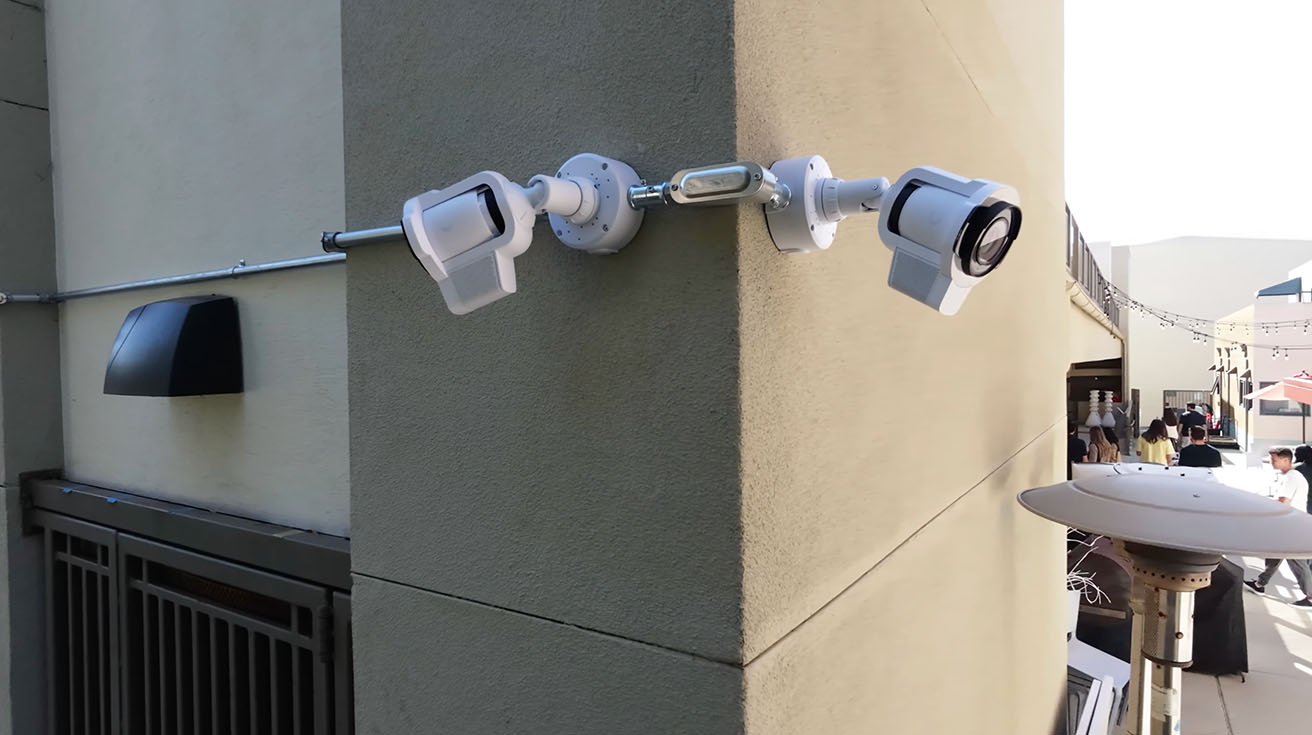

School safety requires dependable performance long after regular school hours conclude, making clear night vision capability a core requirement for the perimeter camera layout. To cover the main exterior boundaries and walkways, we deployed the high-performance UniFi Video Camera G6 Pro Bullet (UVC-G6-Pro-Bullet-W).

Each G6 Pro Bullet unit was paired with an external Vision Enhancer attachment. This specialized accessory combines an intense infrared floodlight with a high-intensity spotlight, completely changing the camera's low-light video clarity. With these enhancers tuned, the system captures crisp, high-contrast details across dark playground corners and entry vestibules in total darkness.

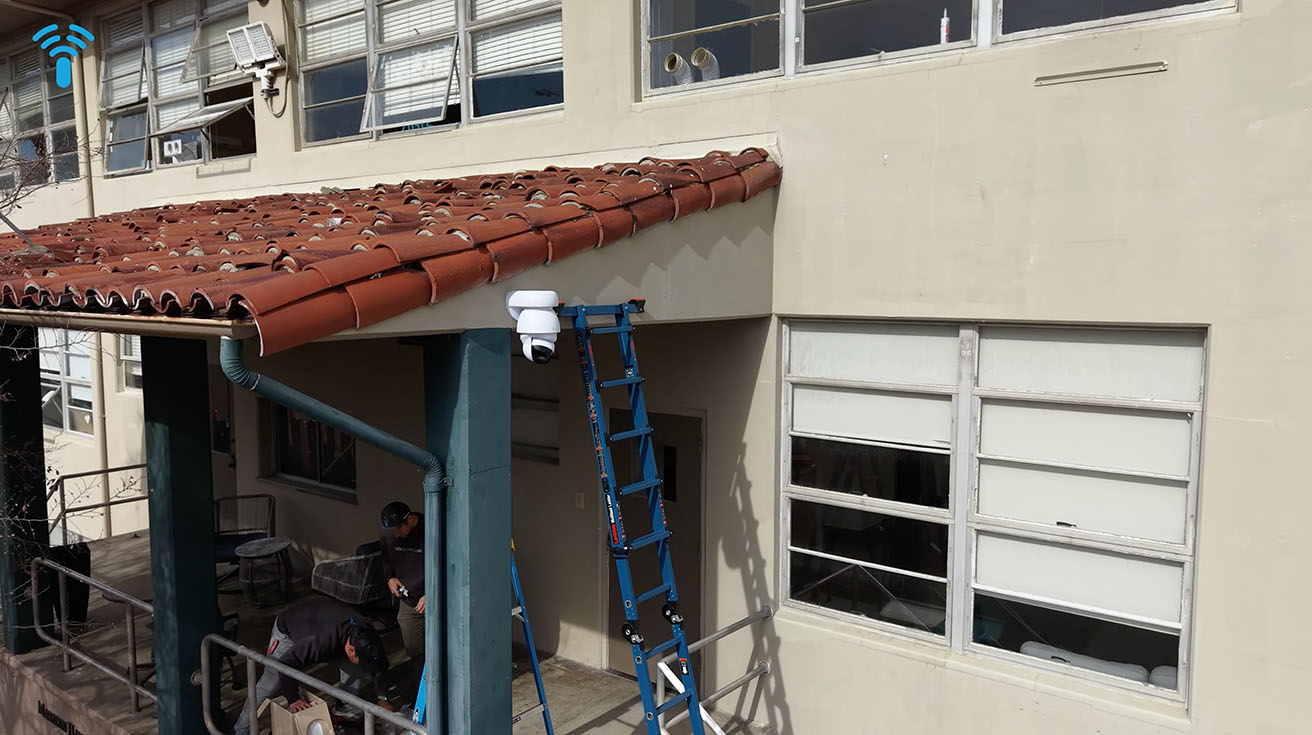

For wide-open common areas and central fields, we deployed the ruggedized UniFi Video Camera AI PTZ Industrial. This industrial-grade unit features high-speed, motorized pan-tilt-zoom control backed by deep-learning classification engines. The camera automatically tracks moving subjects across long distances and utilizes its powerful optical zoom to resolve sharp details like license plates or facial profiles.

This multi-tiered surveillance design uses a structural architecture similar to our perimeter protection project for a high-security storage facility, where long-range visibility and automated edge detection were the primary project requirements.

Campus Network Infrastructure: The Fiber Backbone

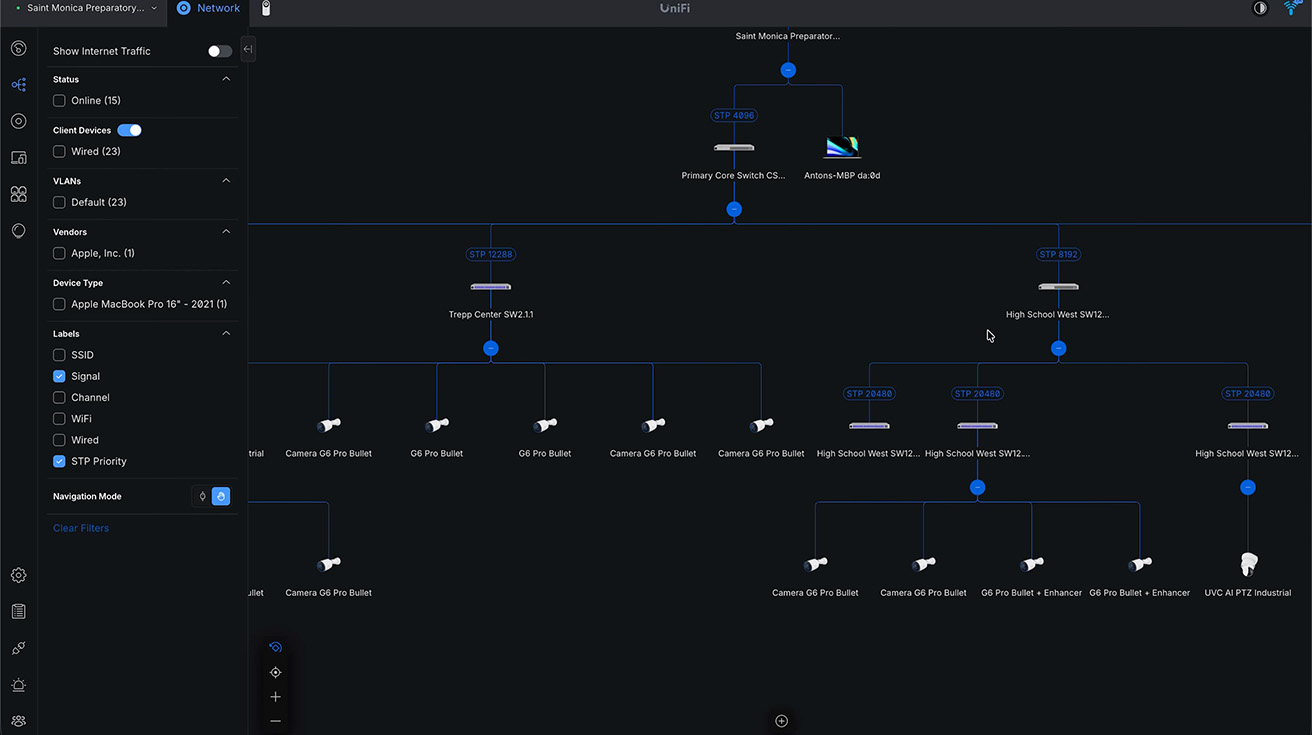

Linking eight physically separate buildings back to a central server room requires an enterprise-grade distribution layout. We executed this by deploying a dedicated multi-strand fiber optic backbone across the campus. At the center of the network distribution layer, we installed UniFi Pro Aggregation switches. These high-density SFP+ consoles act as the main sorting nodes, directing 10 Gbps data paths out to each individual building on the property.

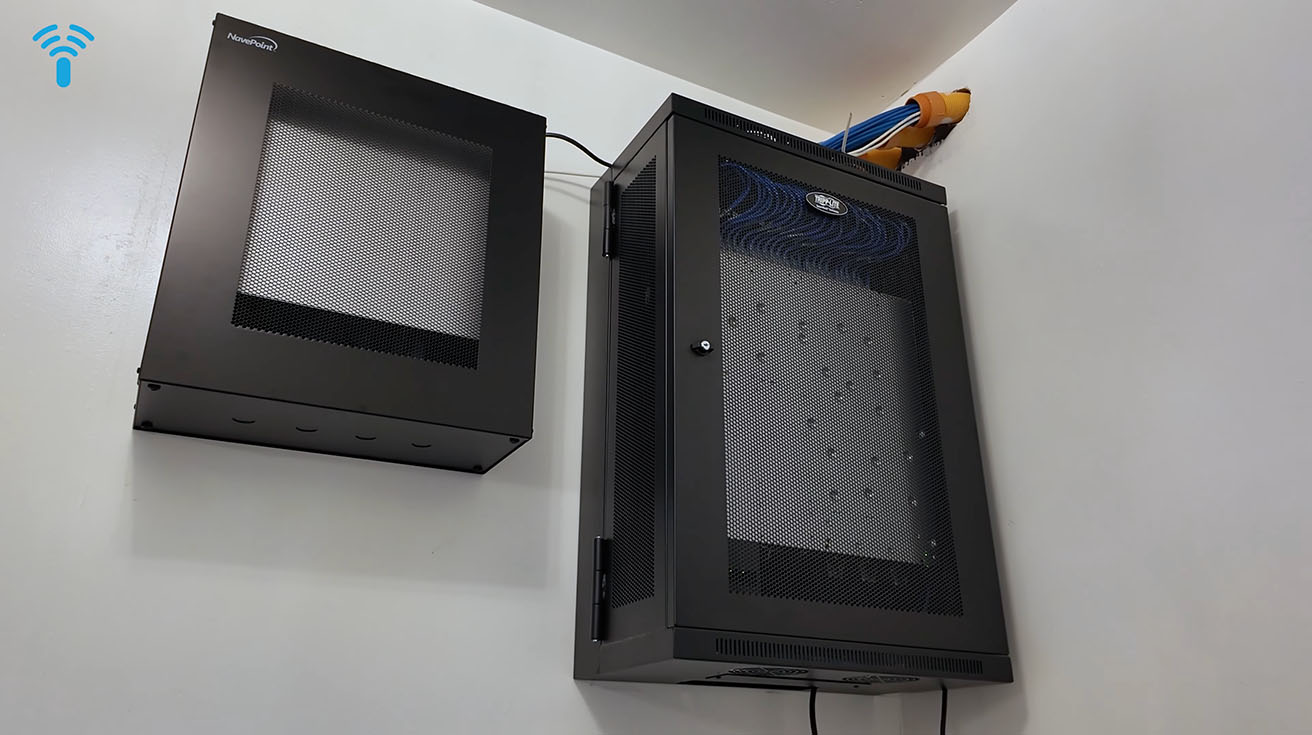

Inside each of the eight buildings, we deployed USW Pro Max switches, positioning them on every single floor to create localized PoE access nodes. These switches supply reliable Power over Ethernet to the outdoor cameras while maintaining high-speed uplink paths back to the central server core.

This access layer is designed to be fully future-proof. While Phase 1 focuses heavily on outdoor security cameras, these Pro Max PoE switches provide ample port capacity and power budgets to support upcoming interior camera expansions and electronic door hardware. This high-density network engineering follows the exact structural layout we deployed during our enterprise physical network upgrade for a massive manufacturing plant, where long-term system uptime and port readiness were essential.

Isolated Security Network Setup with UDM Pro Max

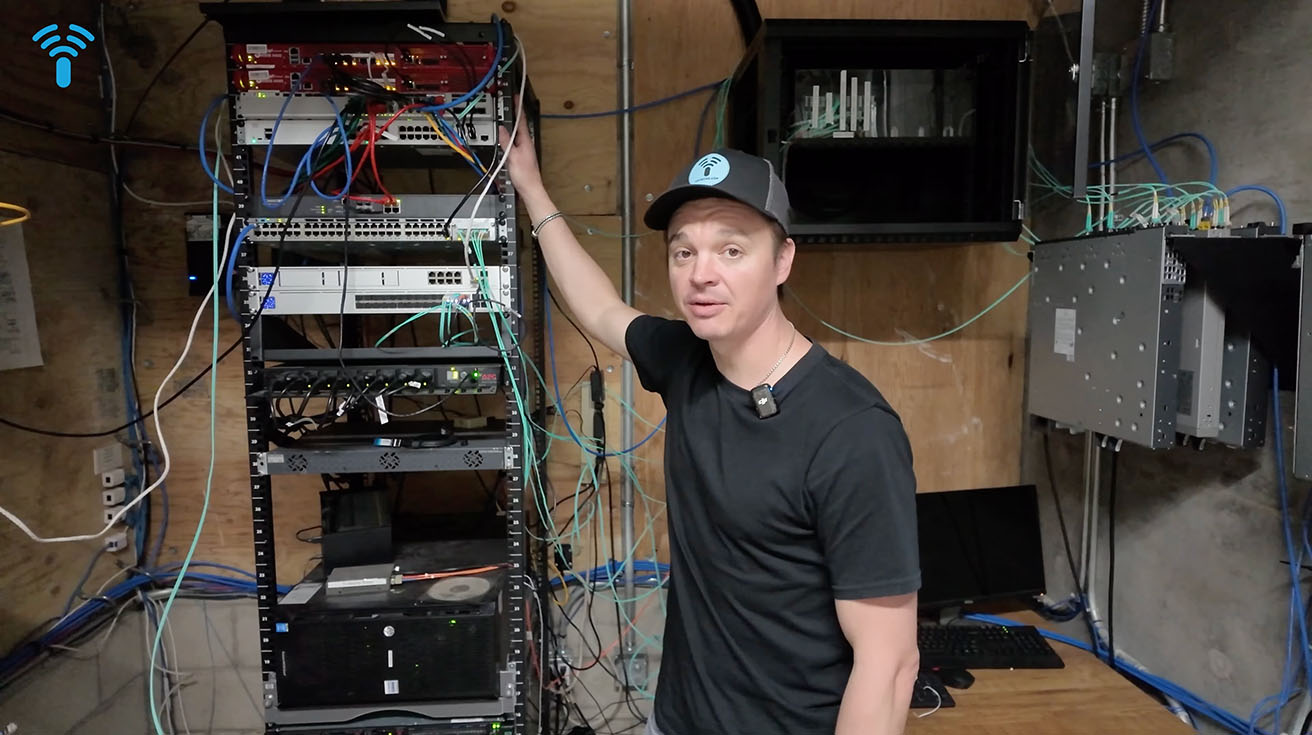

The routing core and main dashboard engine for the entire security network is the UniFi Dream Machine Pro Max (UDM Pro Max). We deployed this dual-power-supply security console to run the isolated network. By using the UDM Pro Max as a dedicated security engine, we can easily manage firmware upgrades, device rules, and user profiles independently of the school's general administrative IT network.

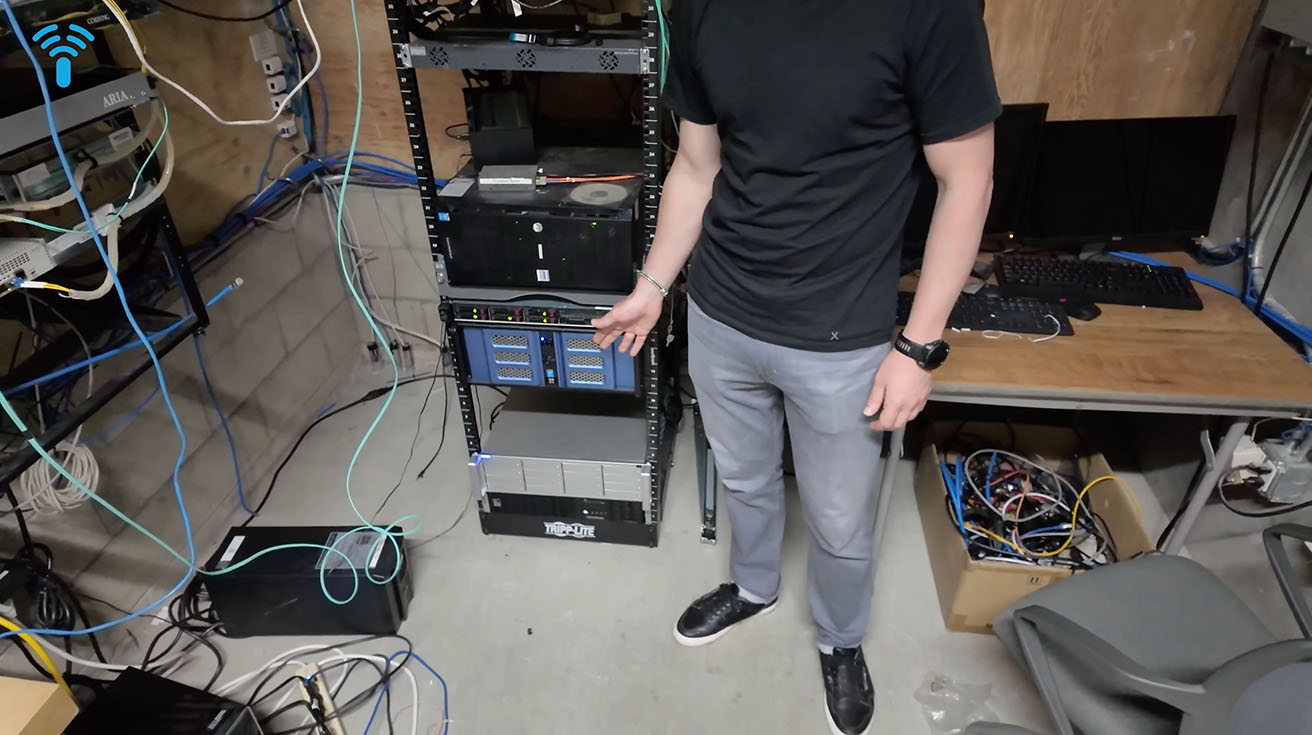

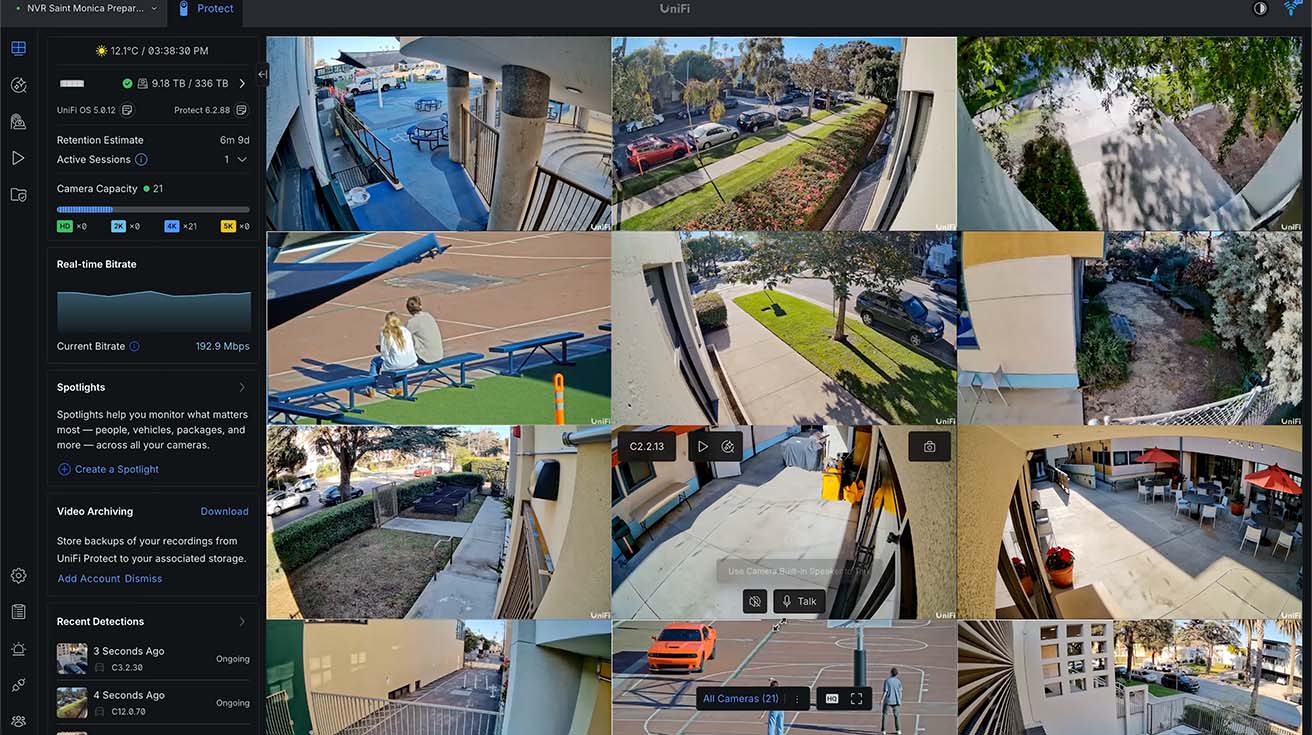

All real-time video storage is processed and retained on a high-capacity UniFi Network Video Recorder Enterprise (UNVR-Enterprise). For this phase of the rollout, the NVR runs the UniFi Protect application to record, index, and organize the multi-view streams from the G6 Pro Bullet and AI PTZ camera nodes.

As the school moves into subsequent deployment cycles, the same UNVR-Enterprise console will host the UniFi Access application. This unified platform approach allows property managers to link incoming badge entries directly with corresponding camera recordings from a single dashboard, creating an integrated physical security environment.

Project Phase Summary & Future Outlook

This initial installation at St. Monica Preparatory establishes a reliable foundation for long-term campus protection. By running a high-performance fiber optic infrastructure and installing versatile PoE switching nodes today, the school can expand its system capabilities without needing to re-engineer its core layout down the road.

The upcoming deployment phases will focus on installing indoor dome cameras along high-traffic student hallways and building entry points, alongside a campus-wide rollout of UniFi Access controllers on all perimeter doors. Because the underlying network infrastructure was built to professional standards in Phase 1, adding these components will be a simple plug-and-play integration process.

If your educational institution or campus facility requires a clean, compliant, and high-capacity network design, partnering with an experienced integration team is critical. You can review our full design capabilities by exploring our complete catalog of enterprise IT projects, or reach out through our network solutions page to schedule a consultation with our system design team.

Contact YesTechie

Our integration team provides comprehensive IT infrastructure layouts designed specifically for K-12 schools, industrial complexes, and corporate spaces. We specialize in high-capacity networking, fiber-optic distribution, and edge-AI physical security platforms.

• Official Portal: yestechie.com
• Project Consulting: Schedule an On-Site Engineering Layout Consultation
• Core Competencies: Enterprise Network Engineering • Certified Ubiquiti Deployment • Fiber Optic & Category Cable Splicing • Wireless Network Bridges • Smart Surveillance Arrays • Door Access Control Systems • Intercom Deployments

To check out the equipment utilized during this educational campus modernization project, you can browse the official inventory directly via our affiliate link: Ubiquiti Systems Equipment Store.

Field Tour: Watch the System Deployment

To see this campus infrastructure layout from the field and examine the real-world performance of the G6 Pro Bullet hardware, check out our project overview video here:

Frequently Asked Questions

Why is an isolated security network recommended for K-12 school campuses?

Network isolation provides two critical advantages for school environments: data safety and performance consistency. Running continuous, high-volume 4K surveillance streams generates heavy network traffic that can easily slow down the educational subnets used daily by students and staff. By separating the security network into an independent topology, you ensure zero interference with classroom learning while blocking unauthorized local users from viewing sensitive camera feeds.

What specific benefit does the Vision Enhancer bring to the G6 Pro camera layout?

The UniFi Vision Enhancer is an external, high-output hardware accessory that mounts directly around the camera lens. It integrates a powerful infrared floodlight with an intense LED white spotlight. This tool increases the camera’s effective imaging range in low-light environments, giving security personnel crisp details across dark playgrounds and perimeter lanes in total darkness.

Can the existing switching infrastructure support door access control updates later?

Yes. Our team installed high-capacity USW Pro Max PoE switches on every single floor across all eight campus buildings for this purpose. The power budgets, port allocations, and category cabling runs are already configured on-site. When the school transitions into the next deployment phase, technicians can simply mount the door hubs and access readers directly into the nearest network rack without pulling new home-run cables back to the main server room.

How are the separate, detached campus buildings connected back to the central server?

The buildings are linked using a dedicated multi-strand outdoor fiber optic backbone terminated into UniFi Pro Aggregation switches. Fiber optic lines are crucial for multi-building campus layouts because they permit high-speed, low-latency 10 Gbps data transit over long distances while completely avoiding the signal loss, electrical grounding issues, and distance limits that affect standard copper cabling.

What primary security role does the AI PTZ Industrial camera handle on campus?

The AI PTZ Industrial camera is utilized for active wide-area tracking across large open spaces like primary playgrounds and main vehicle access lanes. Its advanced edge processor automatically detects, classifies, and tracks moving subjects or vehicles across a wide field of view. When an event triggers, its built-in optical zoom maintains crisp resolution at long distances, delivering clear images of faces or license plates.
