43 AI Cameras & Access Control: Complete Temple Security Overhaul

Large, historic multi-building complexes present unique physical protection challenges that traditional, fragmented analog hardware cannot solve. Our team at YesTechie recently finalized a comprehensive commercial security system installation for the Los Angeles Hompa Hongwanji Buddhist Temple, located in the heart of downtown Los Angeles.

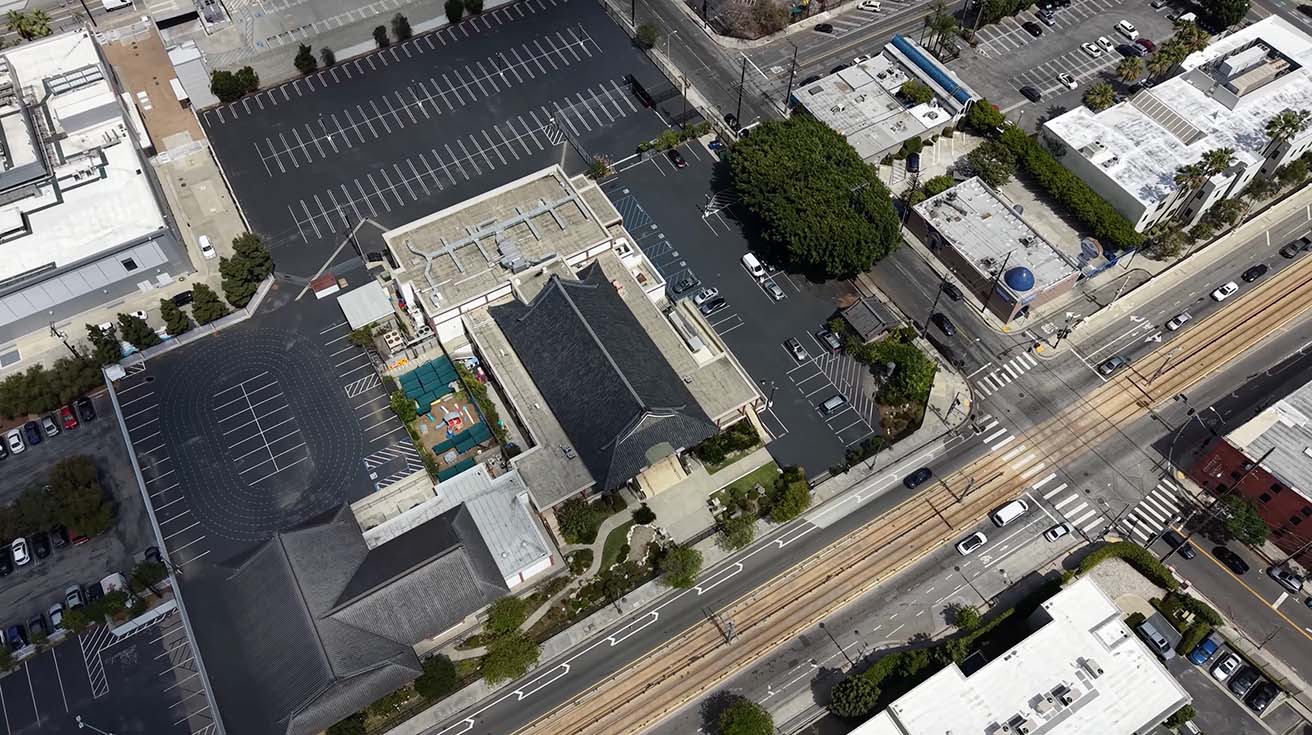

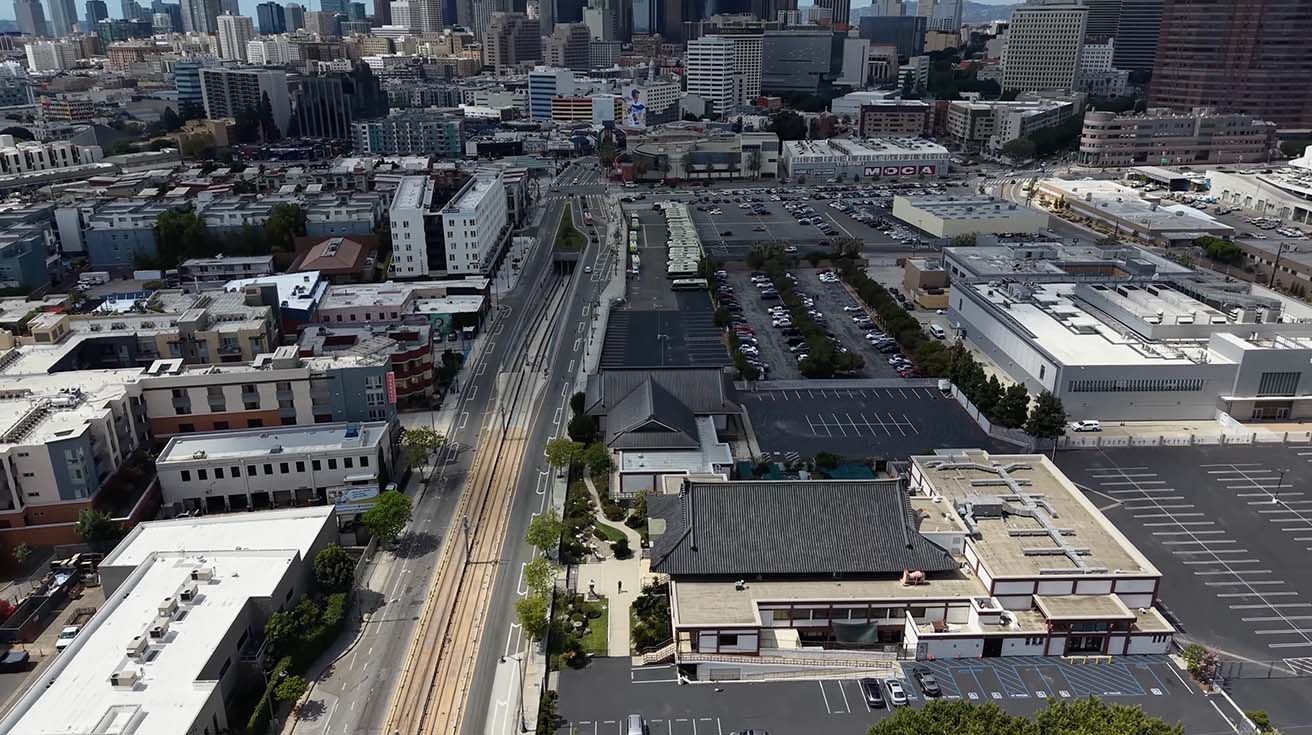

This historic landmark encompasses a main temple, community administrative offices, an active childcare facility, and multiple high-traffic parking lots. The project required a modern, reliable, and centralized physical security platform to replace a failing legacy infrastructure while keeping the entire network completely invisible to preserve the property's unique architectural heritage.

Project Scope: Los Angeles Hompa Hongwanji Buddhist Temple

Managing a multi-use facility means balancing open public access with restricted perimeter protection. The temple management team required an enterprise-grade ecosystem capable of protecting children at the daycare, tracking vehicles in the parking structures, and managing a constant flow of temporary visitors and staff members.

The primary structural goal was to eliminate independent, siloed systems and consolidate all surveillance video feeds, gate operations, and building entry points under a single management interface. When executing a large-scale commercial security system installation, success depends on mapping out hardware placement to support distinct operational zones without creating communication bottlenecks across the campus.

Replacing Legacy Analog Cameras & Outdated Intercoms

When the temple administration contacted us, the existing security layout was completely inadequate. The property relied on an obsolete analog camera array. Over time, multiple cameras had failed entirely, and the remaining live feeds delivered low-resolution video that fell far short of modern operational standards. Major blind spots left significant sections of the courtyard and perimeters completely unprotected.

Furthermore, the existing gate intercom system was outdated, providing poor audio quality and zero remote management functionality for the staff. This created a logistical headache during daily pick-up and drop-off hours at the childcare center. Upgrading from broken coax lines to a modern IP-based infrastructure is a core phase in a comprehensive Ubiquiti enterprise deployment.

Hardware Deployment: UniFi Cameras & Network Infrastructure

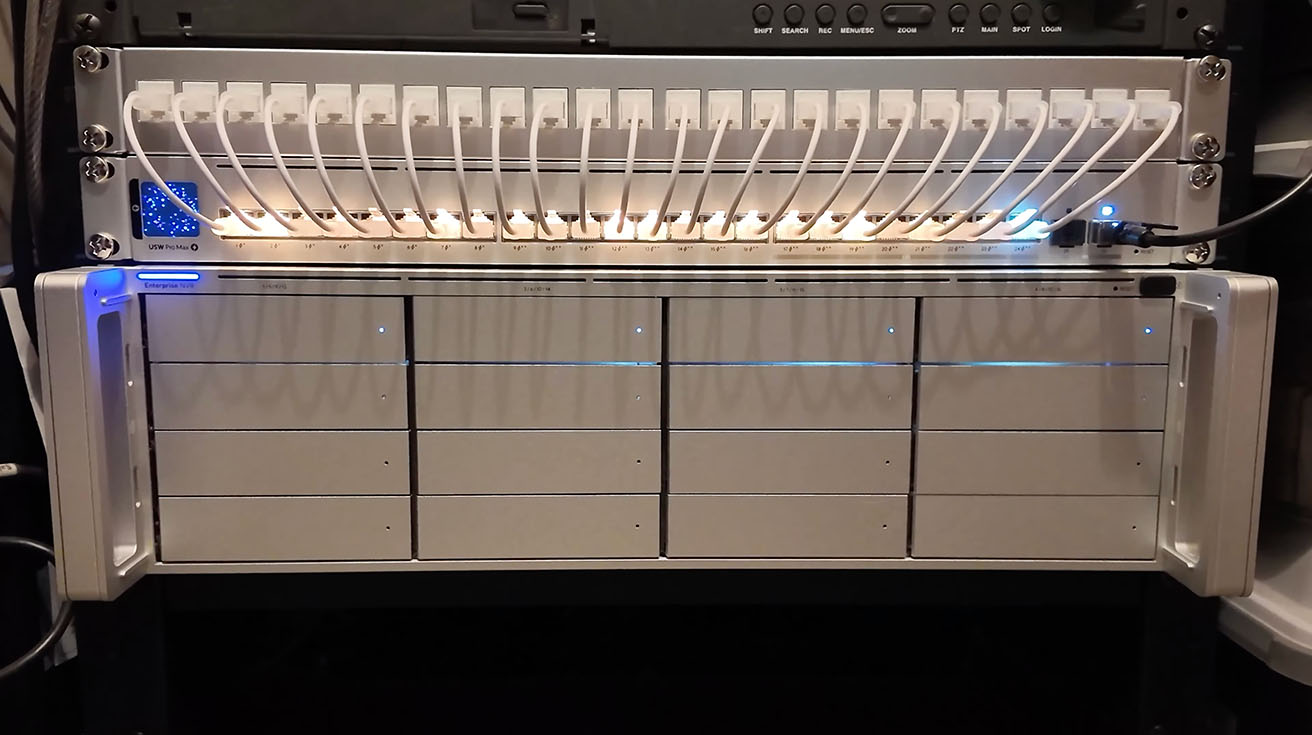

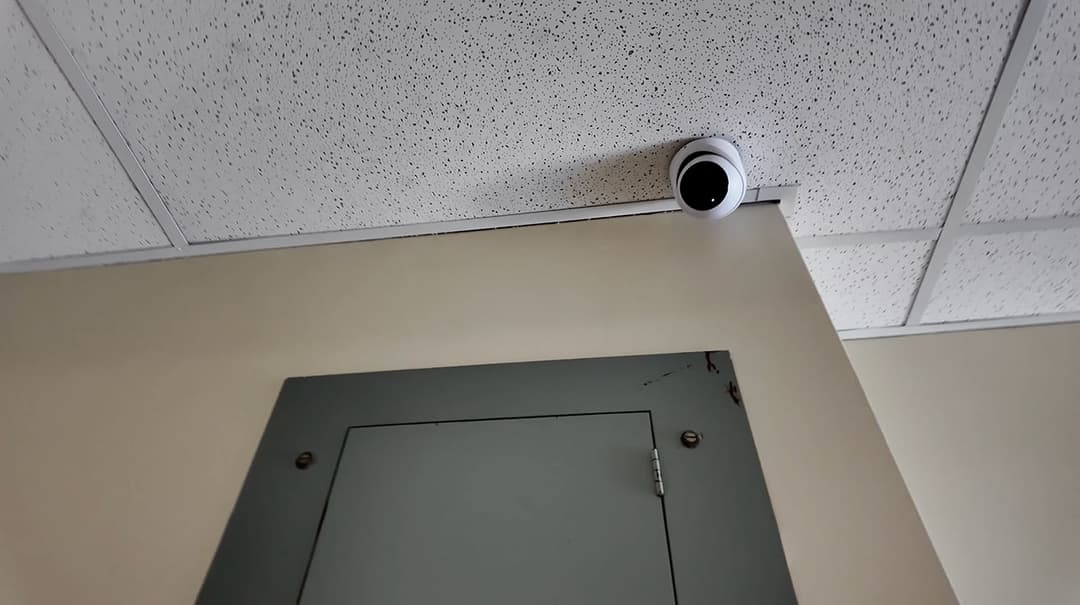

To achieve total coverage, our team deployed a total of 43 high-definition IP network cameras linked to an enterprise network video recorder setup. The bulk of the perimeter and indoor coverage is handled by the UniFi Video Camera G6 Turret (UVC-G6-Turret), which delivers exceptional low-light performance in a compact footprint. The central nervous system of this commercial security system installation is the Enterprise Network Video Recorder (ENVR), running the UniFi Protect and UniFi Access applications natively with redundant storage drives.

The most challenging constraint of this project was the building's intricate, detailed architecture. To avoid running unsightly cables across historic interior and exterior walls, we engineered an invisible infrastructure strategy using three separate Intermediate Distribution Frames (IDFs).

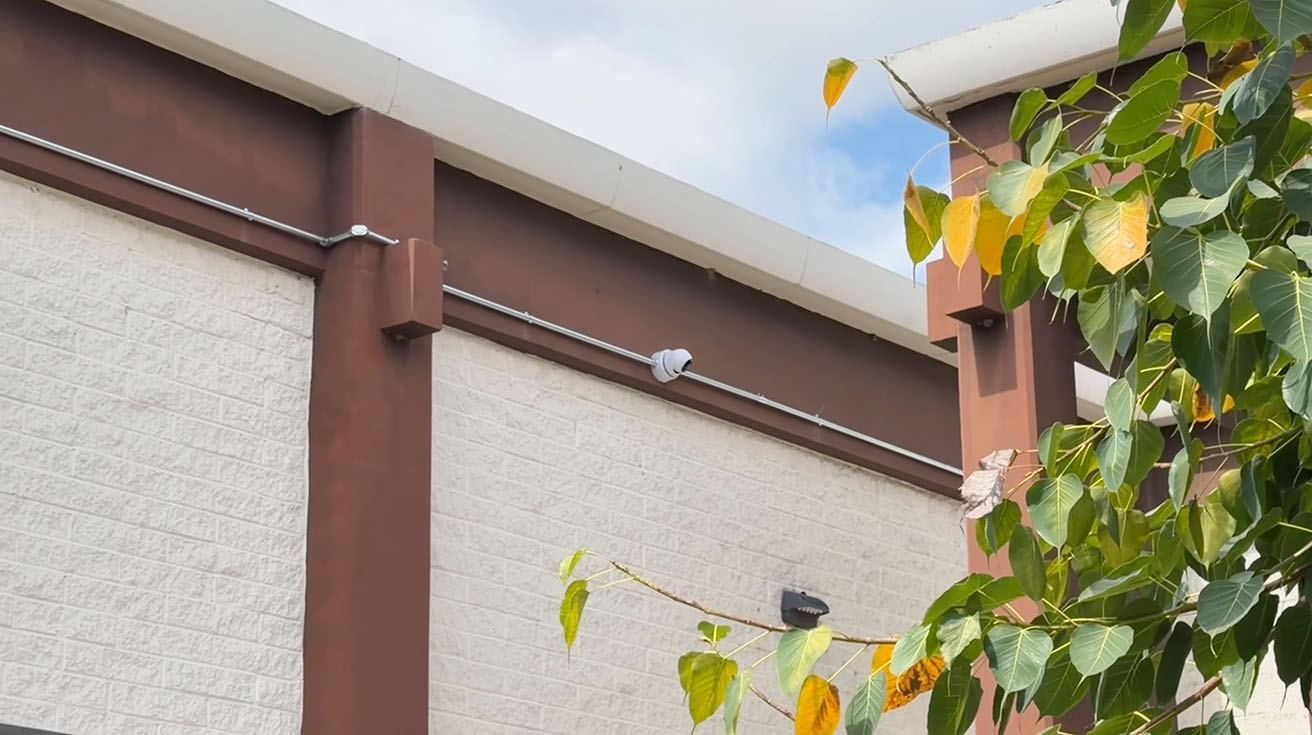

We positioned the main server core — including the Enterprise NVR and the first UniFi Switch Pro Max 24 PoE — in the primary IDF location. To eliminate massive bundles of horizontal cables running through the entire temple, we deployed two additional Pro Max 24 PoE switches in two separate, hidden IDF locations across the complex. By linking these three switch nodes together, we localized the camera cable runs to their nearest distribution point. This intelligent layout kept the network infrastructure invisible, ensuring zero exposed wires inside or outside the temple. For the few unavoidable external drops, we utilized heavy-duty conduit painted to match the building’s exact exterior color scheme.

Next-Gen Gate Access: UniFi Intercom & Visitor Management

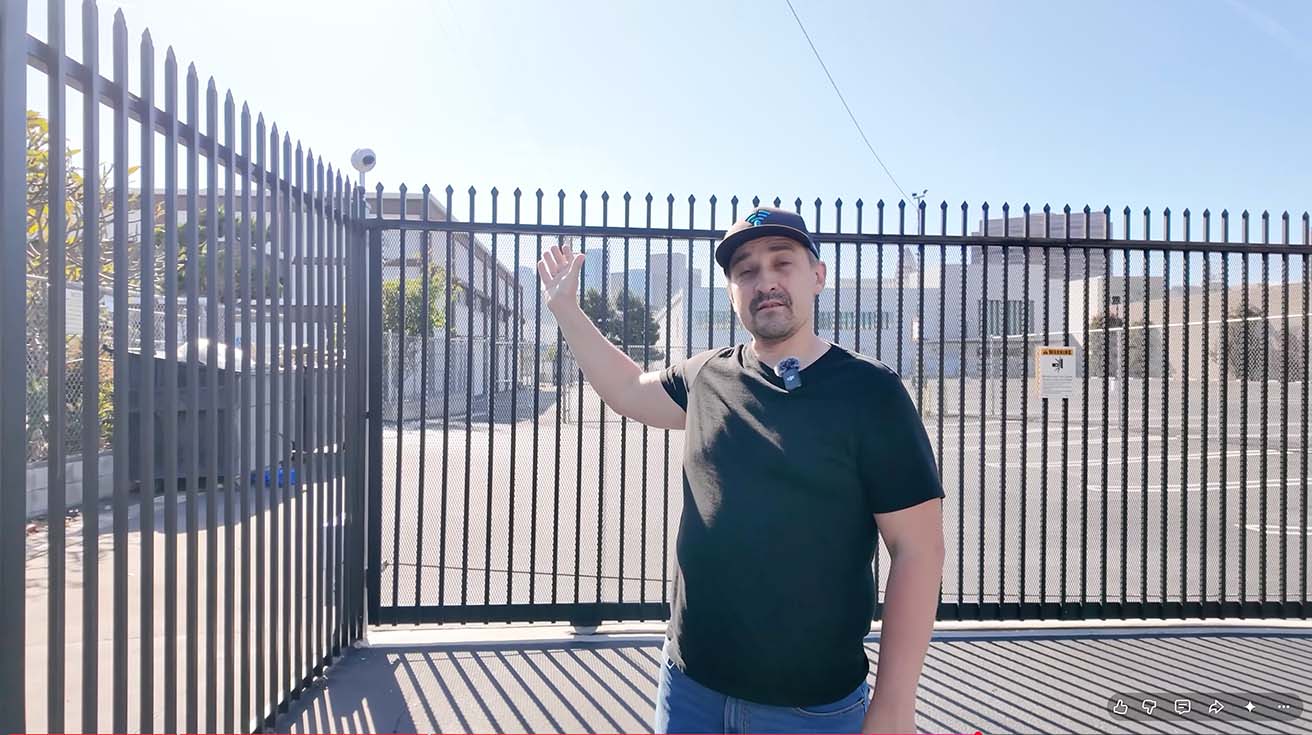

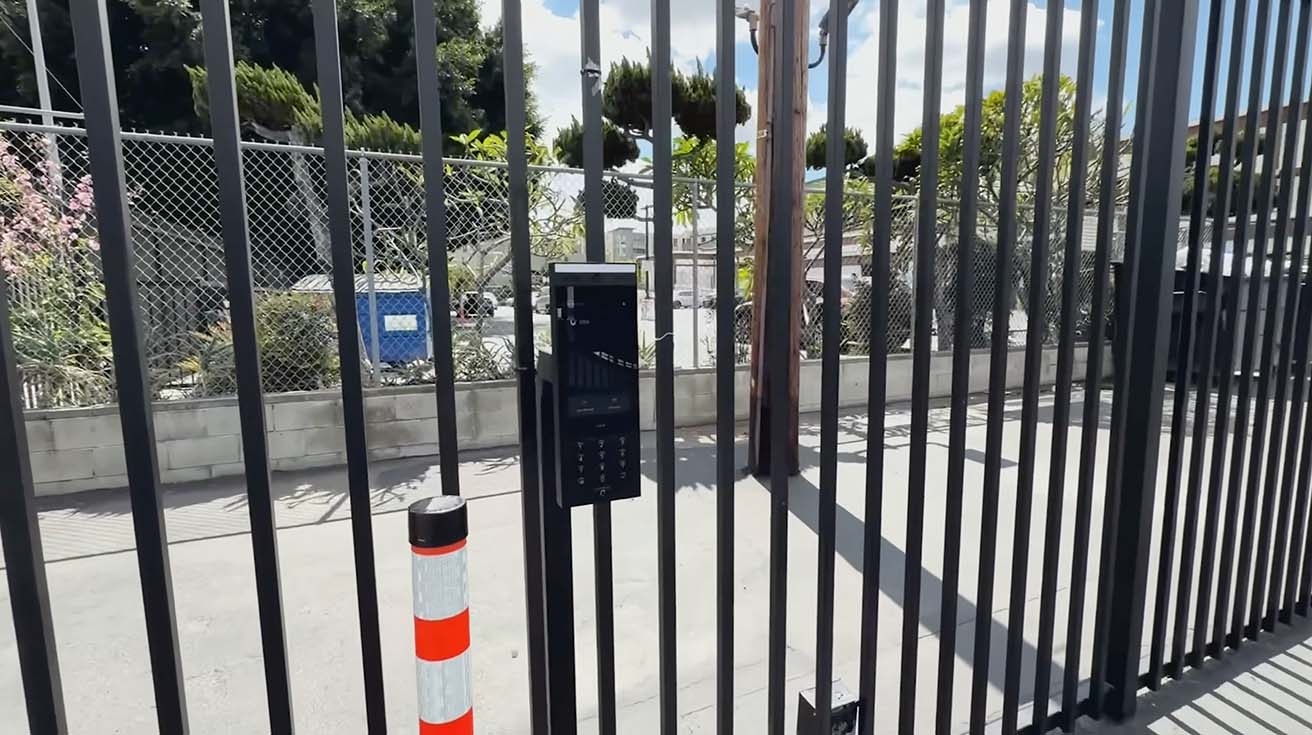

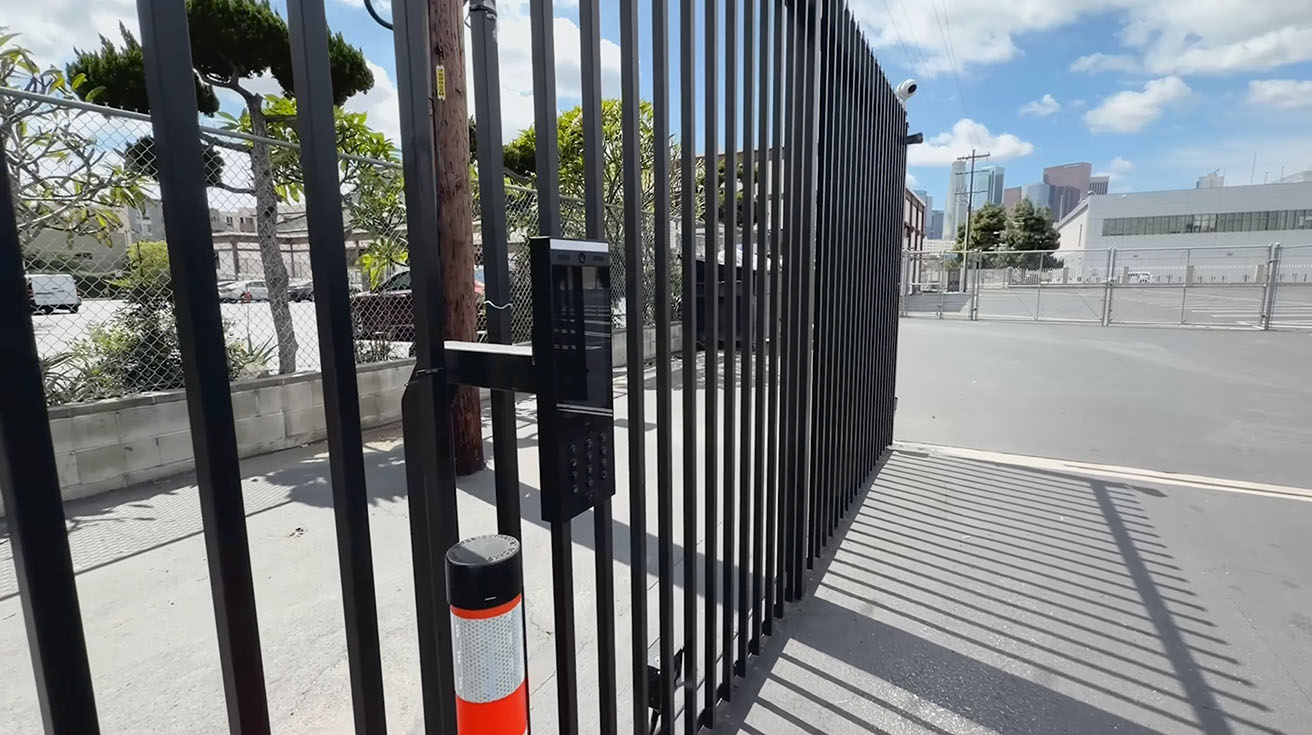

With the network backbone secured, we focused on replacing the broken entrance hardware with a modern door access control framework. At the motorized main vehicle entrance, we installed the UniFi G3 Intercom (UA-G3-Intercom) alongside a dedicated UniFi G6 Turret camera calibrated specifically for automatic license plate recognition gate control. Permanent temple employees can now access the parking lot seamlessly via their registered plates, reducing daily vehicle congestion on downtown streets.

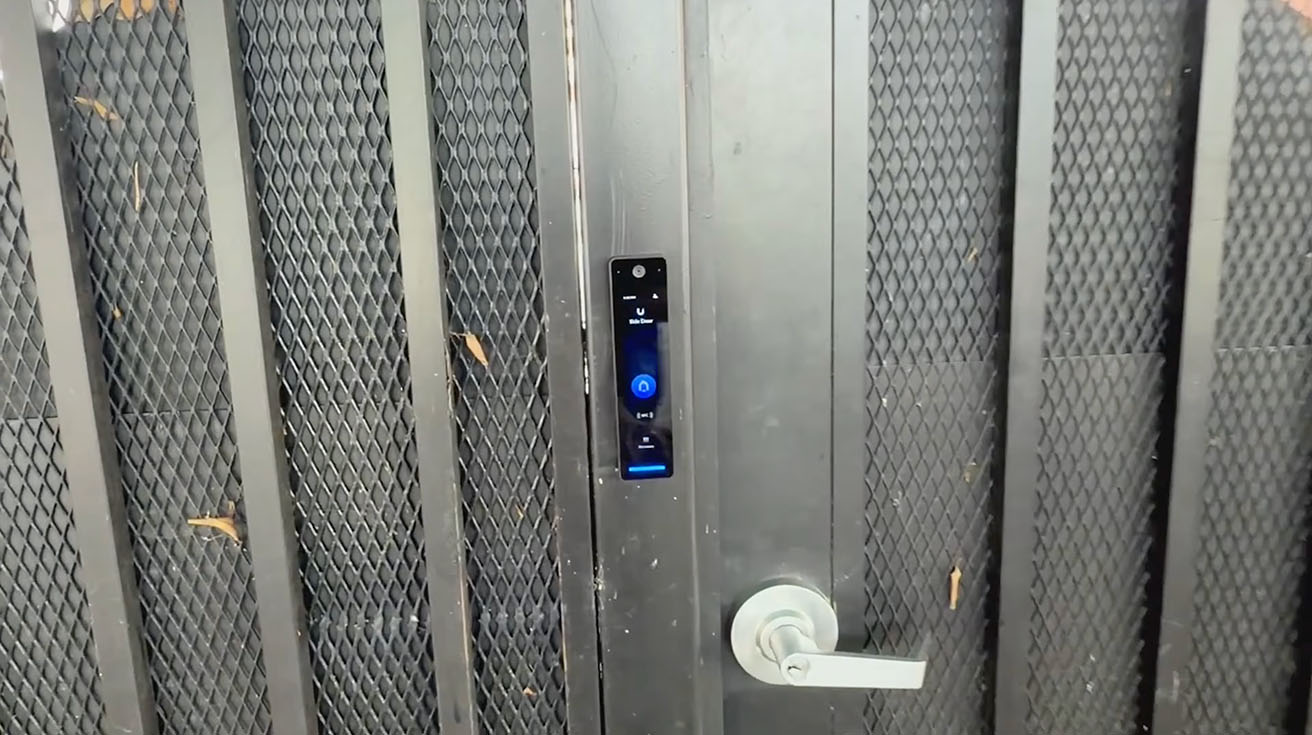

For pedestrian traffic, we secured the perimeter gates and administrative entryways using the UniFi Access G3 Reader Pro (UA-G3-Pro-B). This allows the temple to manage distinct user groups seamlessly:

• Daycare Parents: Access the childcare facility doors during specific drop-off and pick-up hours using secure PIN codes or temporary mobile digital credentials.
• Temple Visitors: Interact directly with the main office via crystal-clear video calls initiated at the entry gate intercom.
• Staff Members: Navigate through the administrative offices and pedestrian gates using encrypted NFC proximity cards.

This multi-tiered access control strategy ensures high security, matching the standards we implement during a dedicated Ubiquiti access control installation for the office.

360-Degree Security Coverage: UniFi G6 Pro 360 Setup

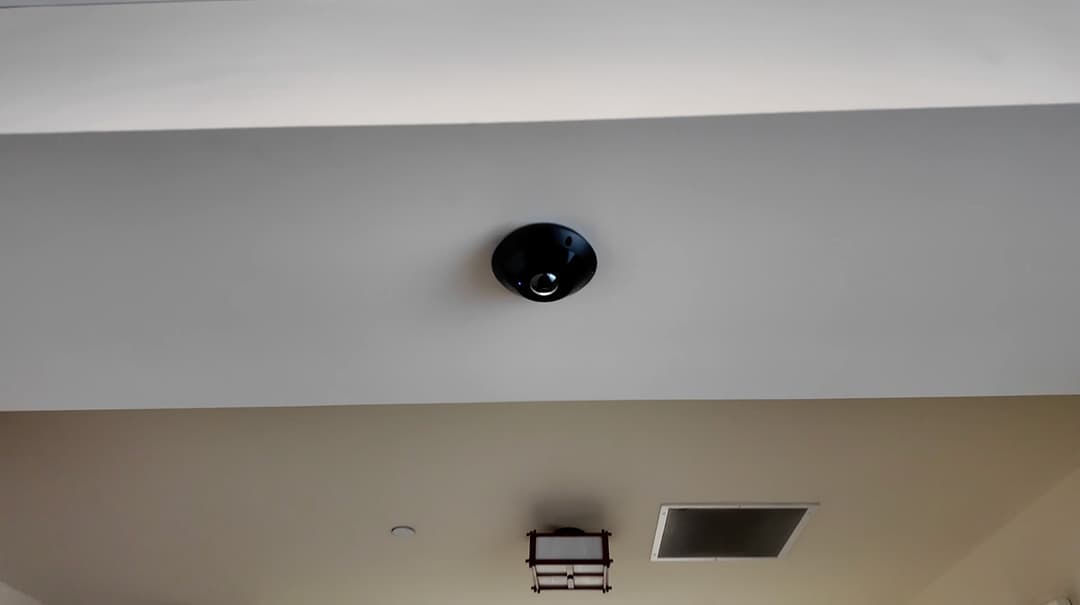

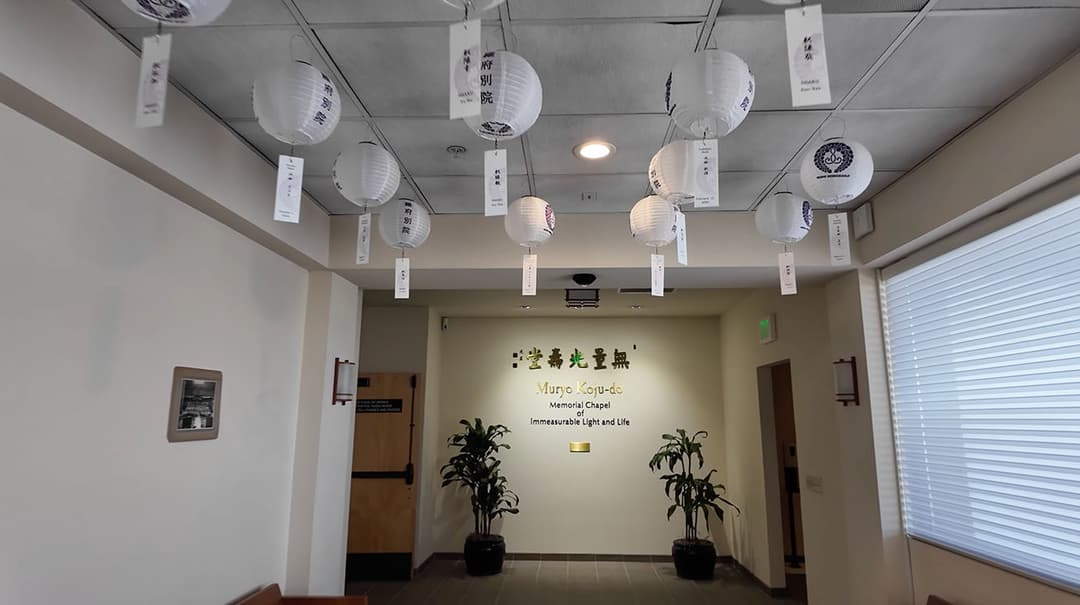

Deploying multiple fixed bullets can sometimes clutter an open architectural space. By analyzing the traffic patterns in the central courtyard, our technicians identified the ideal vantage point to install a UniFi Video Camera G6 Pro 360 (UVC-G6-Pro-360-B) directly above the main building entrance.

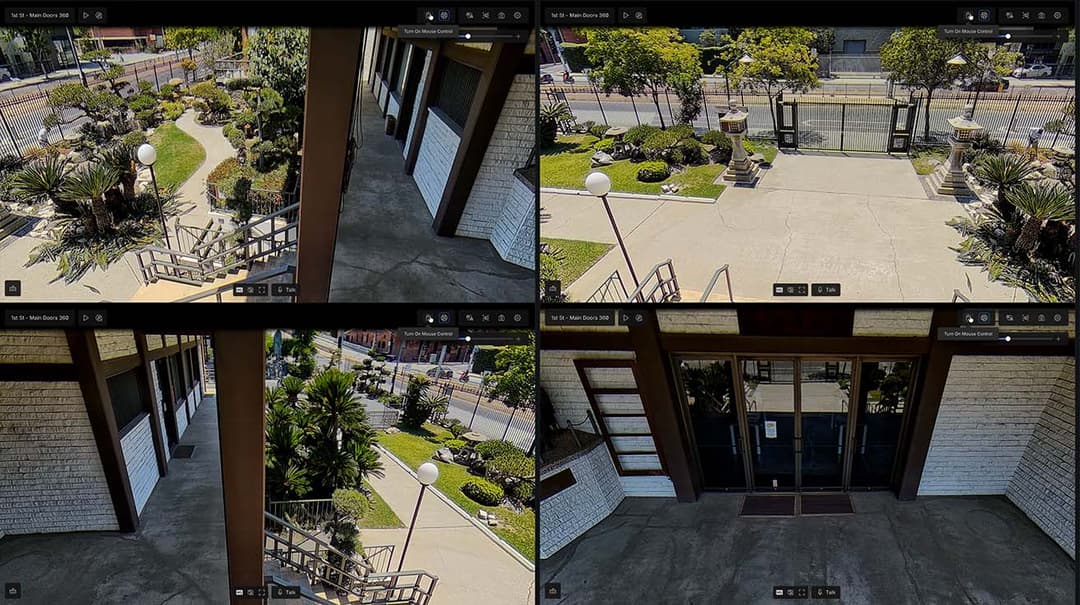

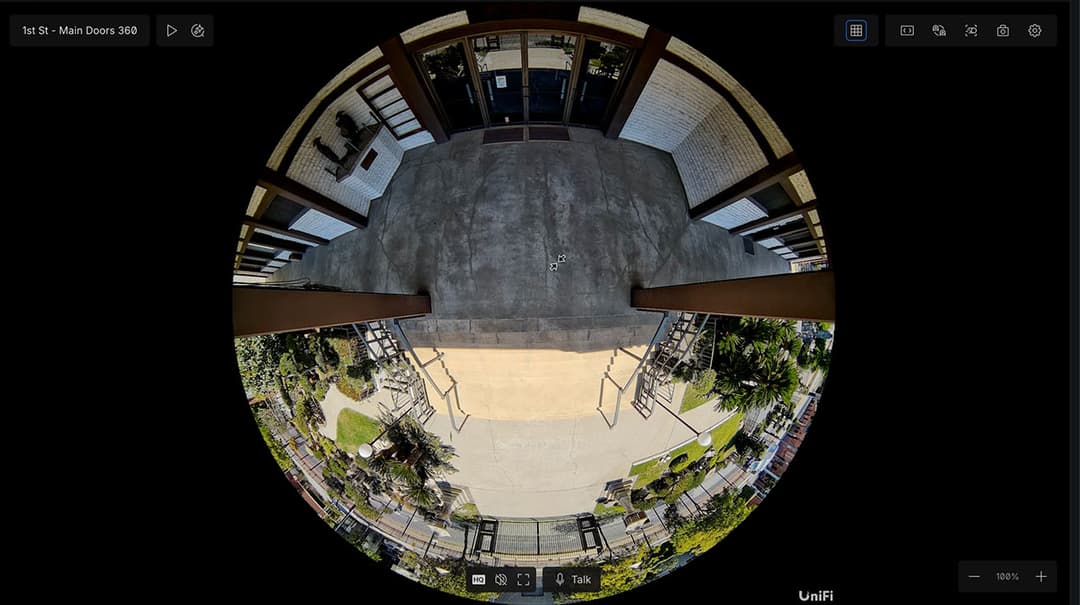

This single ultra-high-definition panoramic camera provides complete situational awareness across a massive radius. From this single video stream, operators can simultaneously monitor the main doors to the temple, all interconnected walkways, the entrance to the childcare wing, the entire open courtyard, the adjacent street front, and the main vehicle gate line. This approach maximizes data capture while keeping the hardware footprint visually minimalist.

Final Summary & Working with YesTechie

The completed commercial security system installation successfully transformed a vulnerable legacy site into a highly secure, modern facility. By migrating the temple’s operations from outdated analog hardware to a centralized physical security platform, the administrative team can now monitor video streams and audit access logs from a single dashboard.

If you are a property manager, board member, or facility director looking to deploy a reliable, professional security infrastructure, choosing the right implementation partner is crucial. Our team at YesTechie Corp. brings specialized technical expertise to every project, ensuring that advanced hardware is integrated cleanly without compromising the aesthetics of your property.

We deal directly with complex multi-site architecture, custom relay logic, and high-density fiber networking to deliver reliable results tailored to your operational needs. For complex scenarios involving dual-gate entry arrays, you can read our technical guide on deploying a dual access control workaround with a single gate hub.

Whether you need a brand-new perimeter layout or a complete modernization of a historic facility, look into our full range of professional security camera services or contact our team directly through our main services portal to schedule an on-site technical consultation.

Check out the video from this deployment:

FAQ: Commercial Security System Installation & Hardware Integration

How do you hide security camera wires in a historic or detailed building?

We use an infrastructure strategy involving multiple localized Intermediate Distribution Frames (IDFs). By placing PoE switches in hidden closet locations throughout the property, we minimize horizontal cable runs. Any external cabling is run through heavy-duty, paintable conduits matched precisely to the building's surface, keeping the installation invisible.

What are the benefits of upgrading from legacy analog cameras to an IP PoE system?

Analog cameras deliver low-resolution imagery over aging coaxial cables, which degrade over time and offer no smart analytics. Modern IP Power over Ethernet (PoE) systems utilize a single CAT6 cable to deliver high-definition 4K video streams, power the camera, and run advanced AI features like Face Detection and License Plate Recognition (LPR) natively.

Can a single 360-degree camera replace multiple fixed surveillance units?

Yes, in open areas like courtyards, parking lots, or large lobbies, a panoramic camera like the UniFi G6 Pro 360 can monitor a massive area from a single point. It captures blind spots that would normally require three or four fixed cameras, though fixed cameras are still recommended for long-distance capture zones like capturing license plates at an exit gate.

How does visitor management work for facilities with distinct entry requirements like daycares?

We deploy smart access platforms like the UniFi G3 Intercom combined with Access G3 Reader Pro units. Permanent staff use encrypted NFC cards, while temporary visitors or parents picking up children can use scheduled PIN codes or make direct video calls to the main office from the intercom gate station to gain authorized entry.

Does an enterprise network video recorder require ongoing monthly software fees?

When you choose a hardware ecosystem like UniFi managed by a certified integrator, the entire platform is completely license-free. There are no per-camera subscriptions, recurring software fees, or user license costs. You own the physical hardware, the recording console, and all surveillance data.
