Ubiquiti Access Control Installation for the Office.

June 1, 2024

Installation of Ubiquiti Access Control in the new office of a large company. We needed to install Access Control on the main door, the media room door, and the server room door.

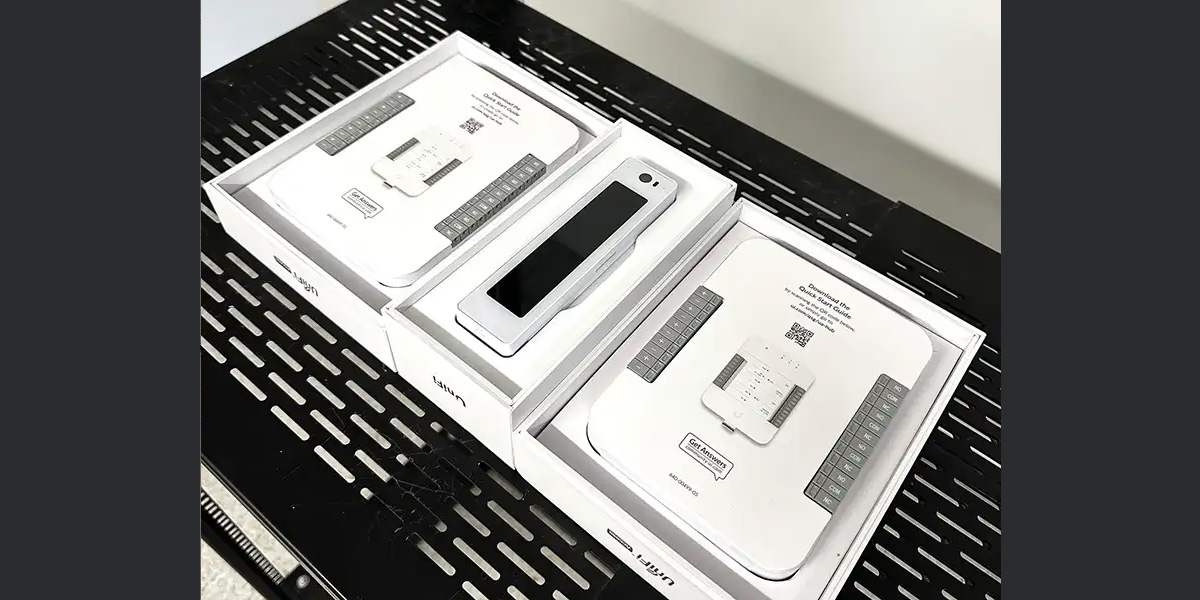

[Image: Ubiquiti Access Control Hub and G2 Reader Pro — https://firebasestorage.googleapis.com/v0/b/yestechiecom.appspot.com/o/Projects%2Ffronteo%2FUbiquiti_Access_hub_and_G2_reader.webp?alt=media&token=8782c431-4087-4098-b21d-549add12ad3c]

Fail Secure Locks

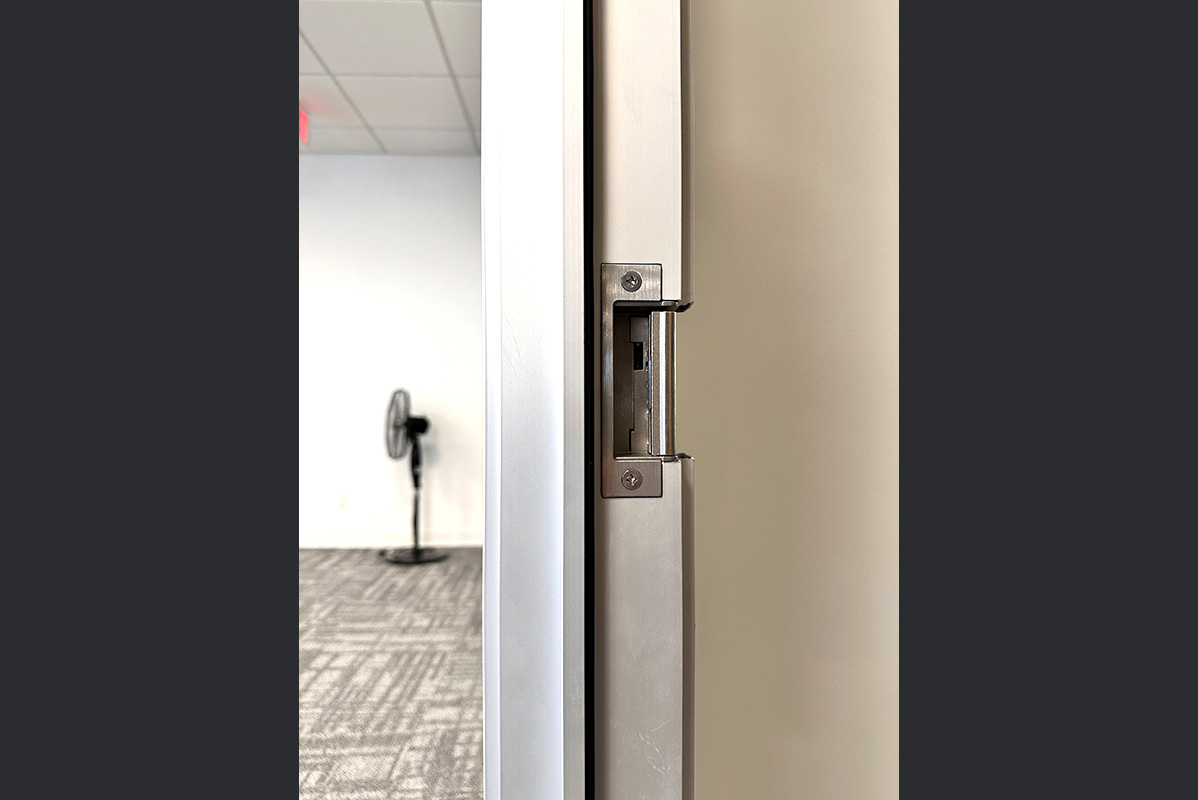

We equipped all the doors with Fail Secure locks. In case of a power outage, they can be opened mechanically with a regular key. All three Access Hubs were installed inside the server room. We installed a separate ethernet line for each door for the reader and a low-voltage line for controlling the lock.

[Image: Ubiquiti Access Control Fail Secure Lock integration — https://firebasestorage.googleapis.com/v0/b/yestechiecom.appspot.com/o/Projects%2Ffronteo%2FStrike_lock.jpg?alt=media&token=f04025df-b2d3-422d-b45f-cf59ed05bc7b]

G2 Reader Pro Installation

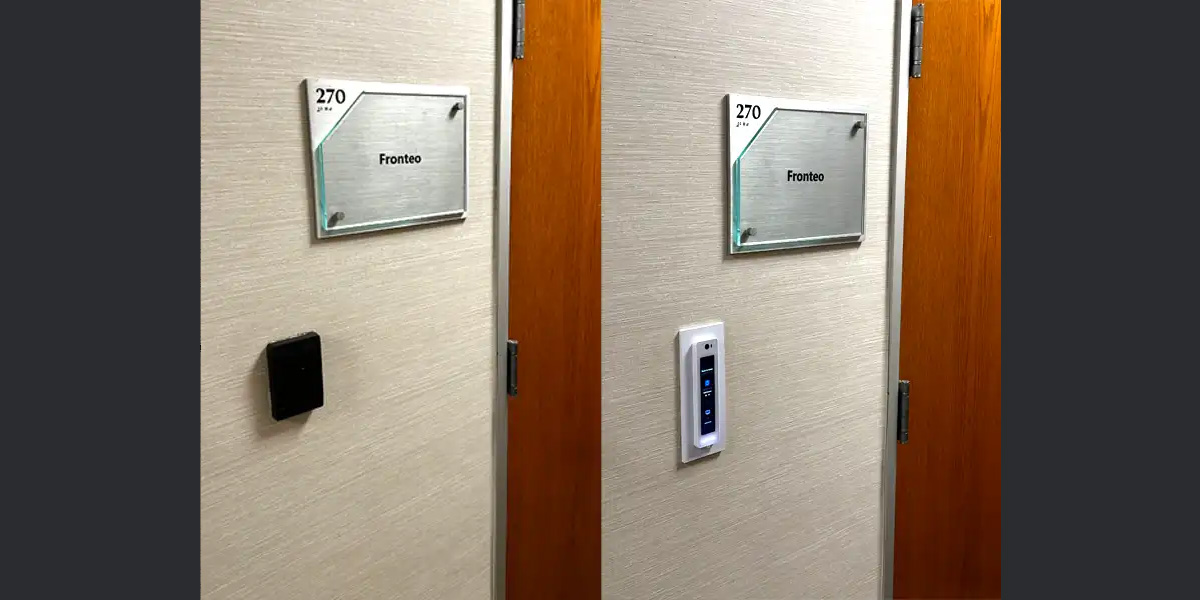

Outside the main door, in the common hallway, we replaced the old generic reader with a G2 Reader Pro so visitors could make video calls. The interior doors were equipped with standard G2 Readers, which are opened with plastic cards.

[Image: UniFi G2 Reader Pro installation — https://firebasestorage.googleapis.com/v0/b/yestechiecom.appspot.com/o/Projects%2Ffronteo%2FReader_upgrade.webp?alt=media&token=7b48e702-3e6e-4a72-8d4f-869f0ba2c28a]

UniFi Access Hub Installation

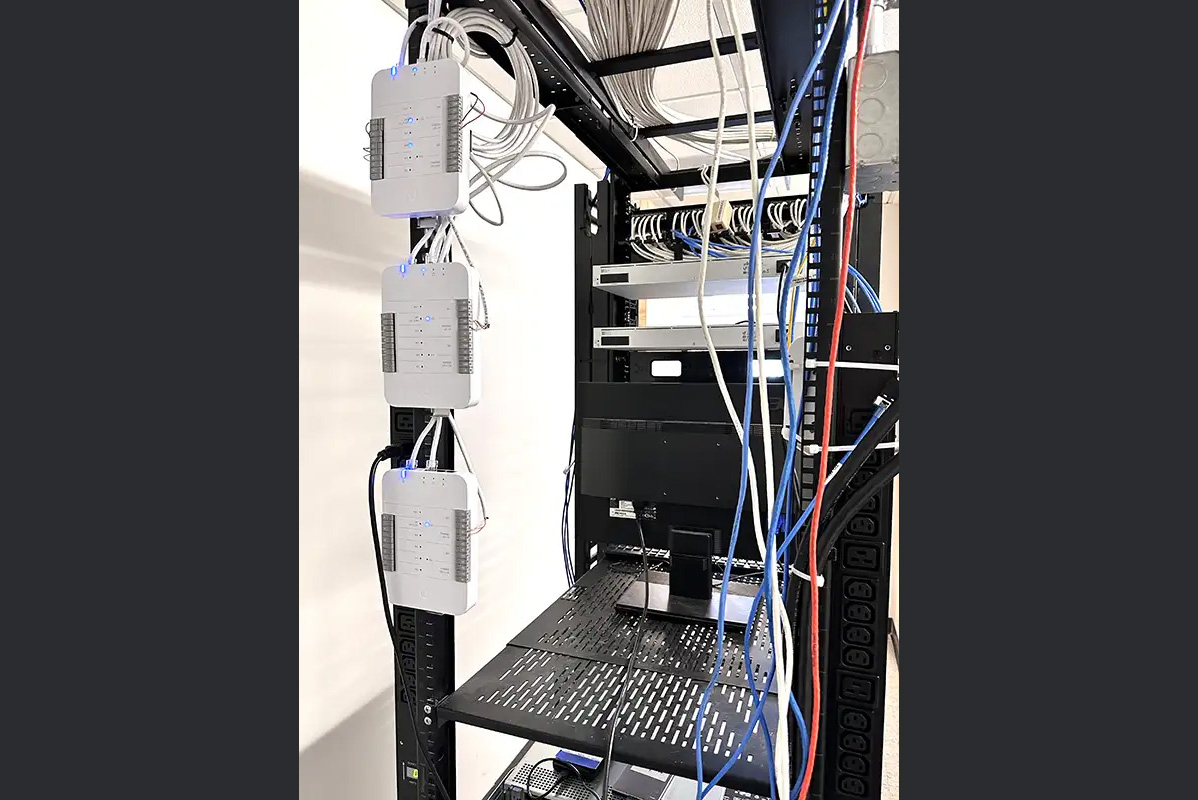

We also ran several additional ethernet lines and connected U6-Pro WiFi access points and G5 Dome cameras. We used a Dream Machine SE and a switch with PoE++ ports to manage the entire system.

[Image: Ubiquiti Access Hub wiring — https://firebasestorage.googleapis.com/v0/b/yestechiecom.appspot.com/o/Projects%2Ffronteo%2FAccess_hubs_rack.webp?alt=media&token=9b16c8f9-dd73-4ff8-96a9-b166e059b7a8]
