UniFi Access: The Perfect Gated Community Security Solution
Securing a premium residential perimeter requires an infrastructure that balances tight physical protection with absolute daily convenience. Our team at YesTechie, acting as certified Ubiquiti integrators, recently finalized a massive structural modernization for a gated community in Malibu, California. Encompassing over 150 permanent residents, this expansive property required a modern, fully integrated gated community security solution to overhaul a broken legacy infrastructure, streamline high-volume entry points, and automate database management.

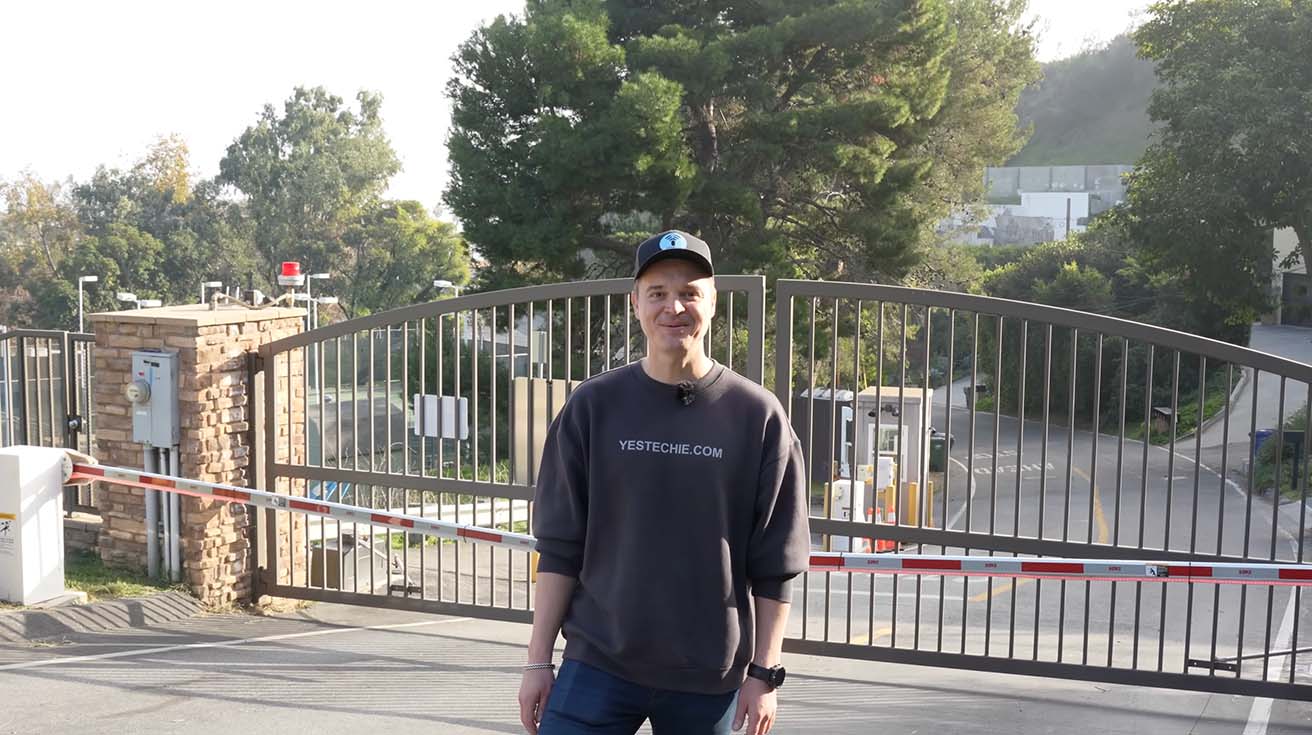

Project Scope: Upgrading the Malibu Gated Community

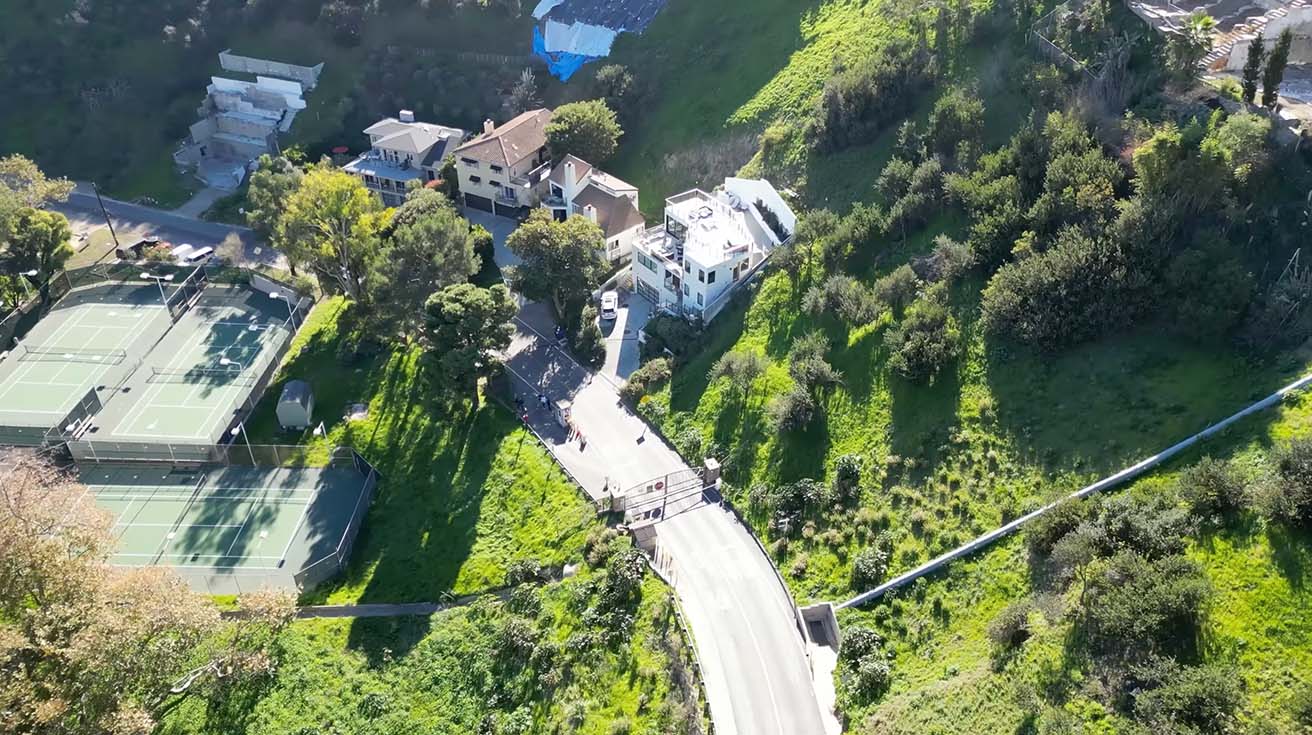

The operational realities of managing a large-scale residential community with multiple access points introduce severe vulnerabilities if the core hardware components are siloed. This Malibu property features two main checkpoints: a lower gate and an upper gate, both experiencing heavy daily traffic from residents, guests, and continuous delivery services. The community management and the Homeowners Association (HOA) board required a unified physical security platform to maintain complete site control.
The core requirement was to bring the entire facility under a single interface umbrella. Management needed a centralized ecosystem where they could oversee resident entry profiles, review high-definition video surveillance streams, and manage temporary visitors without switching between different software platforms. When designing a high-stakes deployment like this, ensuring reliable, low-latency communication across a large geographic perimeter is the first step toward achieving total site visibility. For complexes with similar traffic demands, controlling driveway gates with an integrated access system is essential to eliminate bottlenecks.
Replacing DoorKing & Hikvision Legacy Systems

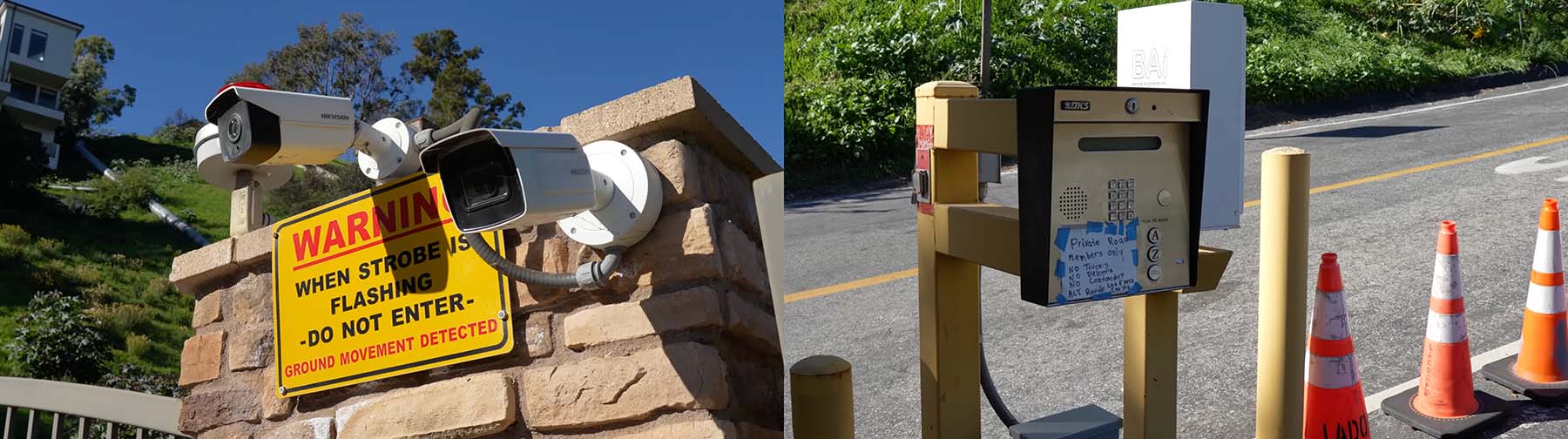

Prior to our deployment, the community’s physical security was at a total breaking point. The existing infrastructure relied on an obsolete patchwork of hardware, including DoorKing intercom enclosures and a legacy Hikvision video surveillance system. To make matters worse, the local infrastructure had been partially destroyed and severely compromised during recent California wildfires. The analog cameras were failing daily, producing low-resolution video fields that fell far short of today's operational standards, making it impossible to accurately read license plates or identify faces at dusk.
The DoorKing visitor entry systems were completely broken, prone to audio dropouts, and lacked modern logging or remote management features. Property management was forced to handle resident data manually, leading to security gaps and inaccurate records. We began the intervention by completely gutting the unreliable legacy units and cleaning up the extensive wiring mess left behind in the gate enclosures. Upgrading from these unmonitored systems to an IP-based network is crucial when planning to deploy sustainable commercial door access control solutions.

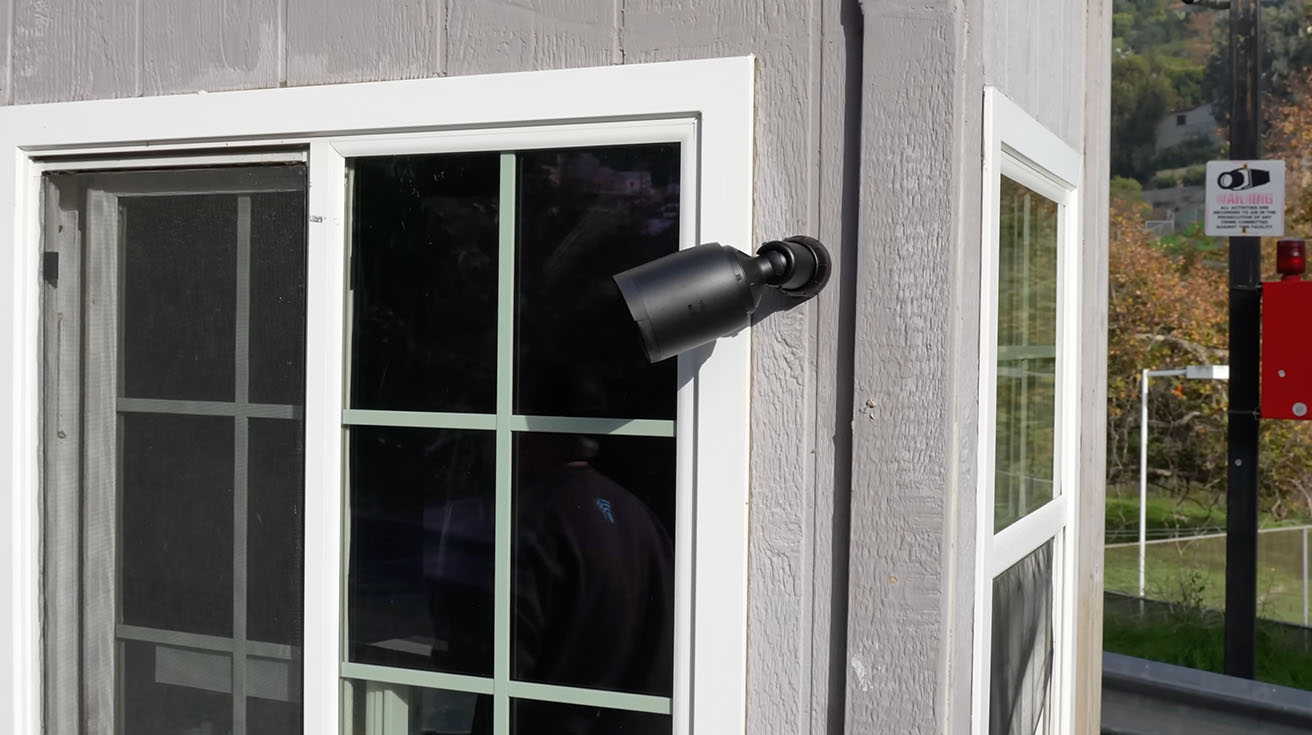

Deploying G6 Pro Cameras for LPR (License Plate Recognition)
To fully automate vehicle entry for the residents, we deployed six UniFi Video Camera G6 Pro (UVC-G6-Pro) units, splitting them evenly with three cameras per gate checkpoint. These high-end cameras are not just for passive perimeter surveillance; they form the physical backbone of the License Plate Recognition (LPR) system. We positioned one G6 Pro camera targeting the front of approaching vehicles and an identical unit capturing the rear view.
This hardware redundancy is critical because if a car approaches the entry barrier and has a front-mounted plate, the camera captures it instantly and triggers the gate open cycle automatically. If a vehicle is missing a front plate, the secondary rear-facing camera records the vehicle as it approaches the gate line, reading the rear plate without a single point of failure. This setup allows permanent residents to get instant gate access using just their license plate number, entirely eliminating the need for physical clickers or fobs, which are easily lost, stolen, or shared with unauthorized individuals.
Network Infrastructure: UDM Pro Max & Gate Hub Setup

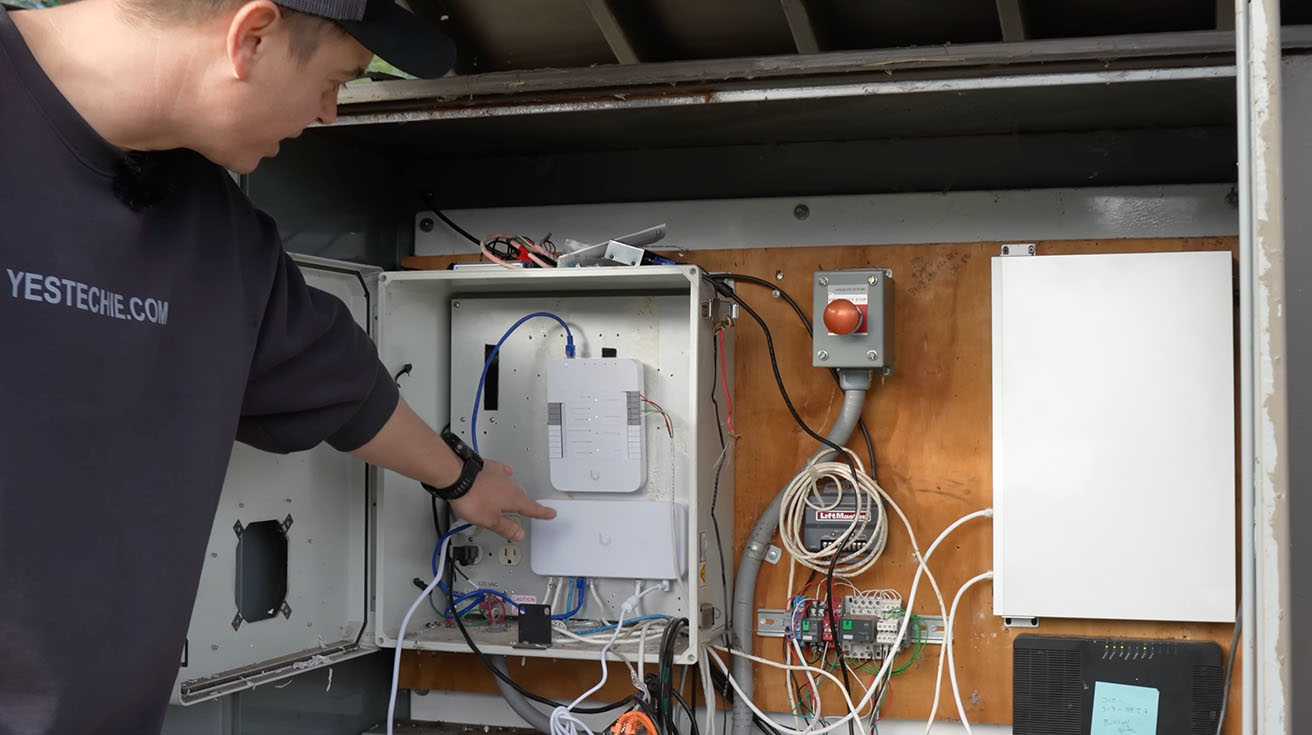

The central routing engine and management brain for the entire property is the UniFi Dream Machine Pro Max (UDM Pro Max). Running both the UniFi Access and UniFi Protect applications natively, this high-performance console handles multi-application operations and complex user databases without latency. We populated the UDM Pro Max with two high-capacity, surveillance-grade hard drives to ensure weeks of continuous high-definition video retention across all cameras.

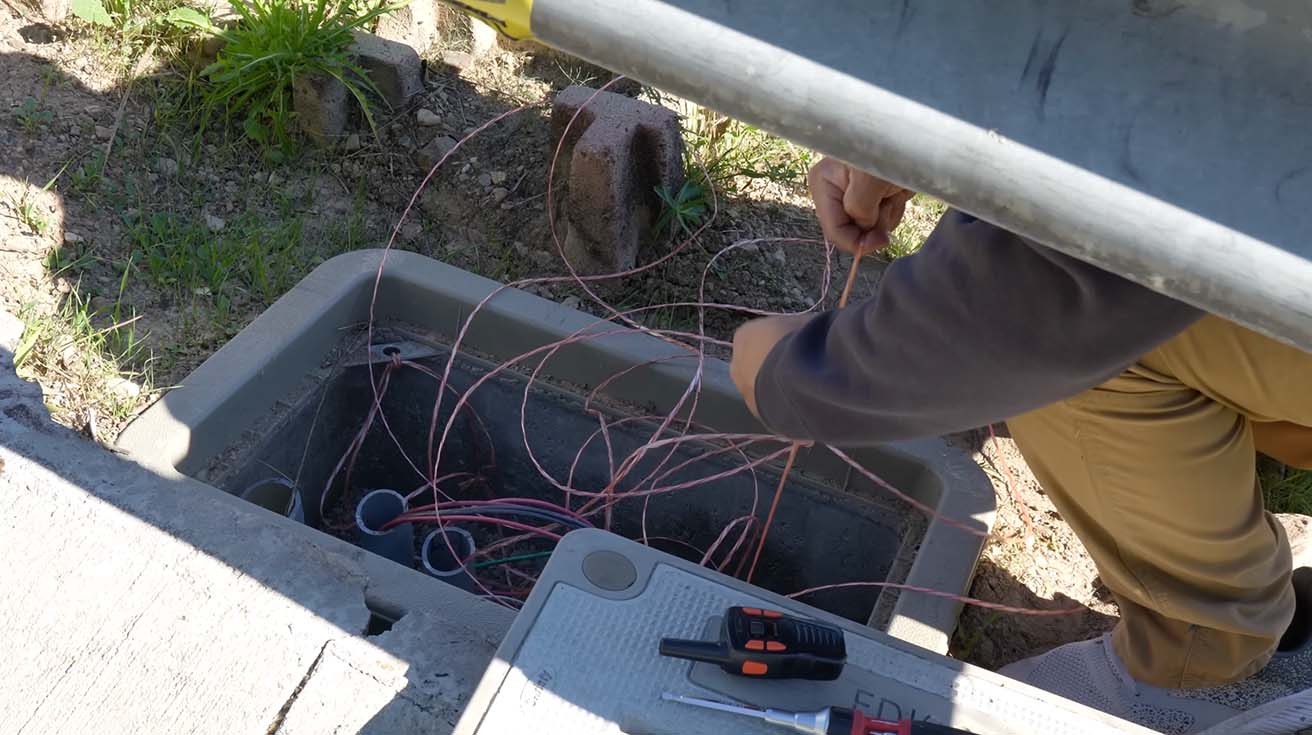

Because the lower gate and upper gate are separated by a significant physical distance across the property, running standard copper network lines was impossible due to signal degradation. Anton managed this network backbone constraint by running a dedicated fiber optic line directly connecting both gate locations back to the central server core. Inside the gate enclosures, we installed UniFi Access Hubs paired with enterprise PoE switches. This system interfaces directly with the property's existing LiftMaster wireless entry terminals. By connecting the dry contact relays of the UniFi Access Hub to the LiftMaster control boards, we created a secure pathway to trigger the motorized gates via network commands whenever a license plate is verified or an app-based command is executed.

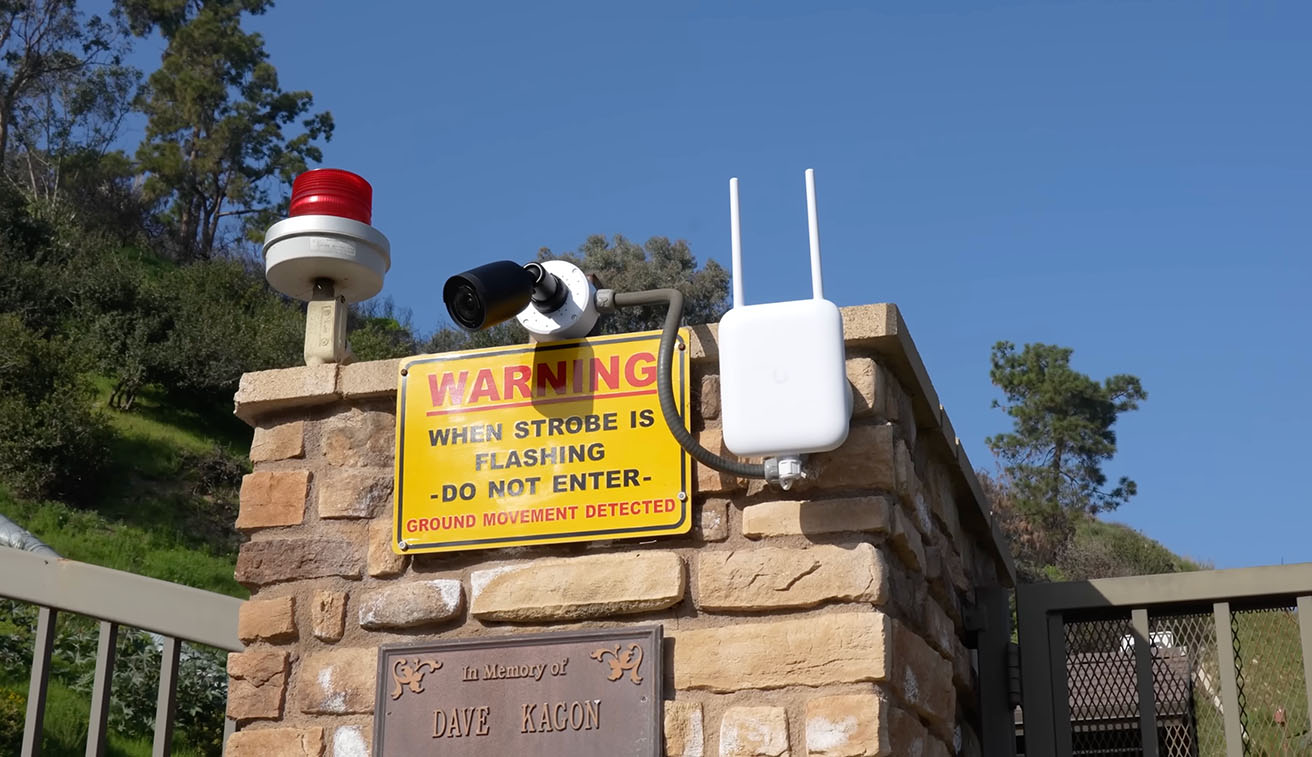

WiFi at the Gates: U7 Pro Outdoor Access Points
A notorious issue in the canyon roads of Malibu is exceptionally poor or nonexistent cellular carrier service. When cellular signals drop at the perimeter, residents and delivery drivers cannot load cloud-based mobile apps, causing severe traffic backups at the entry lanes. To eliminate this technical bottleneck, we integrated high-speed enterprise wireless coverage directly into each gate layout.
We deployed a UniFi U7 Pro Outdoor access point at each gate checkpoint, mounting them directly on the security booth structures. These outdoor APs project a robust, localized WiFi field covering the entire approach lane. Now, if a resident's smartphone loses carrier data, their device instantly pairs with the community's secure wireless network. This guarantees that mobile credentials trigger instantly, and incoming delivery couriers can load visitor passes or use the intercom app without delay. This standard of infrastructure engineering is what sets a premium deployment apart when executing a professional Ubiquiti Access Control Installation for the Office or a massive residential estate.
Installation Reveal: Dual Checkpoint Setup

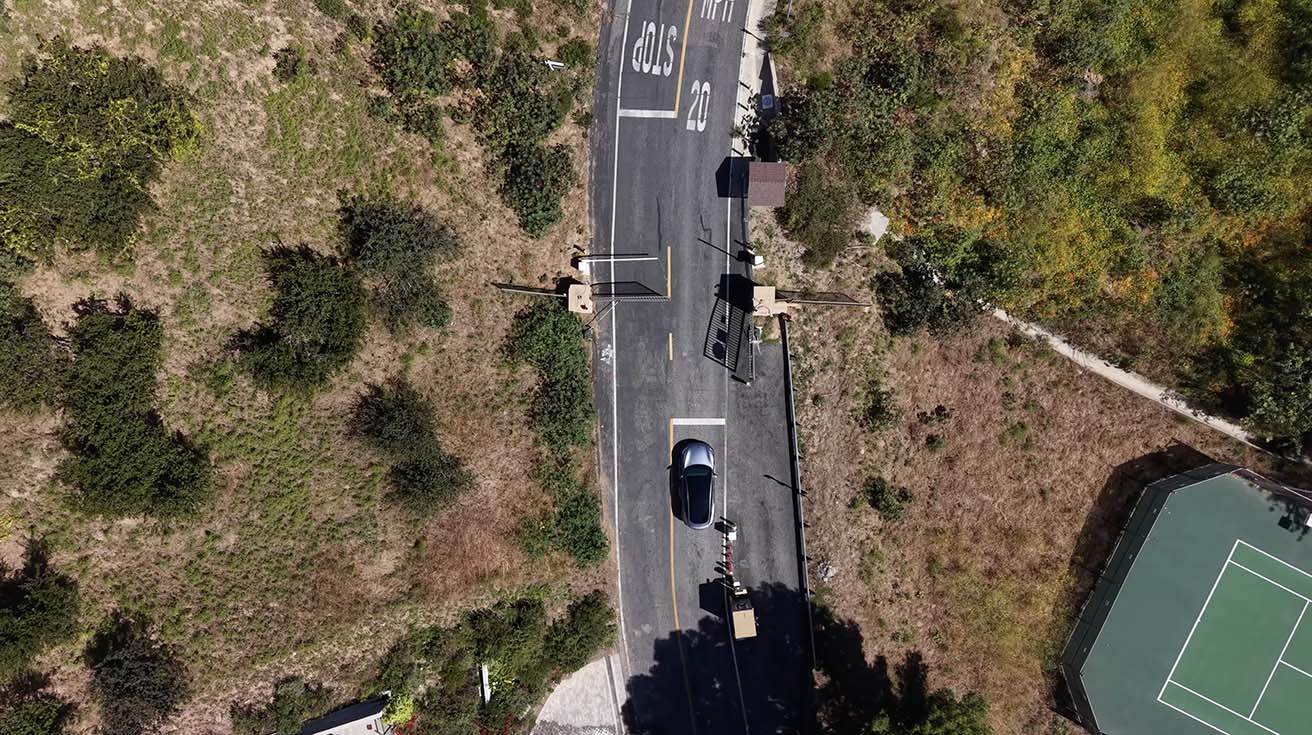

Once the deployment was finalized, both entry lanes, the lower gate and the upper gate, went live under full automated control. The physical hardware layout is identical at both checkpoints. Each gate features a dedicated security booth acting as the mounting point for a localized U7 Pro Outdoor AP and three high-resolution UVC-G6-Pro surveillance cameras.
existing
The system architecture cleanly segments incoming traffic into two primary authorization pathways. Permanent residents utilize hands-free license plate logging or mobile credentials via their smartphones. For temporary visitors, delivery couriers, and contractors, the interactive UniFi Intercom panel provides clear, alternative entry options that remove the day-to-day management burden from the HOA board. Replacing the bulky, weathered metal enclosures of the old legacy setup with a clean, unified Ubiquiti aesthetic has completely modernized the community's entry points.
Solving LPR Challenges for California License Plates
During the field-tuning phase, we ran into a specific engineering challenge unique to California vehicle compliance. The state allows many luxury and sports car owners to skip installing a front license plate, leaving only a rear plate. Additionally, this property uses double-leaf swing gates where the entry and exit leaves operate independently on separate loops. The primary inbound camera was mounted on the security booth structure to capture vehicles entering the community.

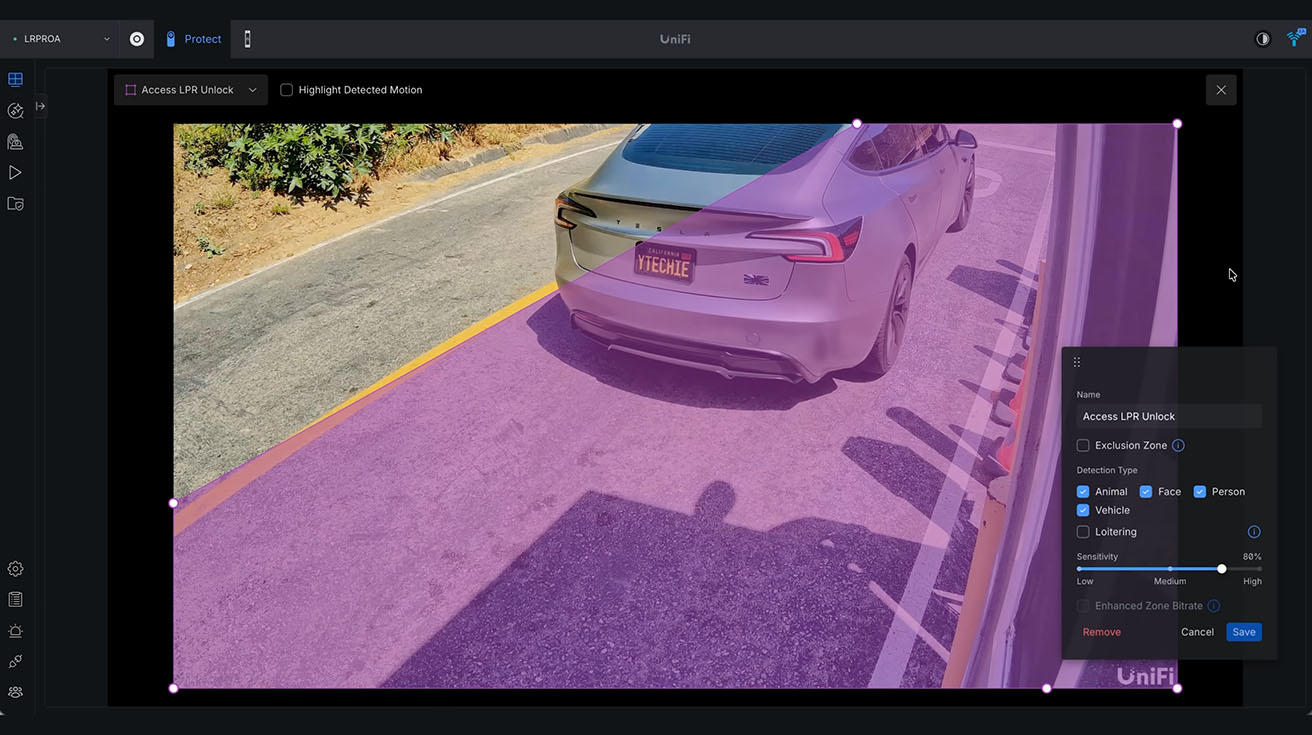

During live tests, we discovered that the wide-angle lens occasionally captured the rear plates of vehicles driving out through the adjacent exit lane, causing the inbound gate to cycle open incorrectly. To eliminate these false triggers, we recalibrated the LPR recognition zones inside the UniFi Protect software. We mapped out a precise, narrow detection grid that forces the AI algorithm to completely ignore existing traffic and isolate only the geometry of the inbound lane. Following a series of real-world test loops, the system achieved 100 percent capture accuracy.
Mobile App & Remote Gate Access Demo
To interact with the checkpoints, residents rely on the UniFi Identity Endpoint mobile application. The main technical advantage of this cloud-backed architecture over traditional radio-frequency clickers is that it completely removes physical distance constraints. We enabled the global remote gate access feature for all authorized resident profiles.
If a homeowner is at the office, traveling, or anywhere away from home, and a trusted contractor or service vehicle arrives at the perimeter, the resident can cycle the gate from their smartphone with zero latency. The app pushes an encrypted command through the UniFi cloud console directly to the local Gate Hub on-site, which immediately triggers the LiftMaster control board loop. The simple, single-tap interface allows users to open or close any specific gate in real time, solving the issue of lost or forgotten gate clickers.

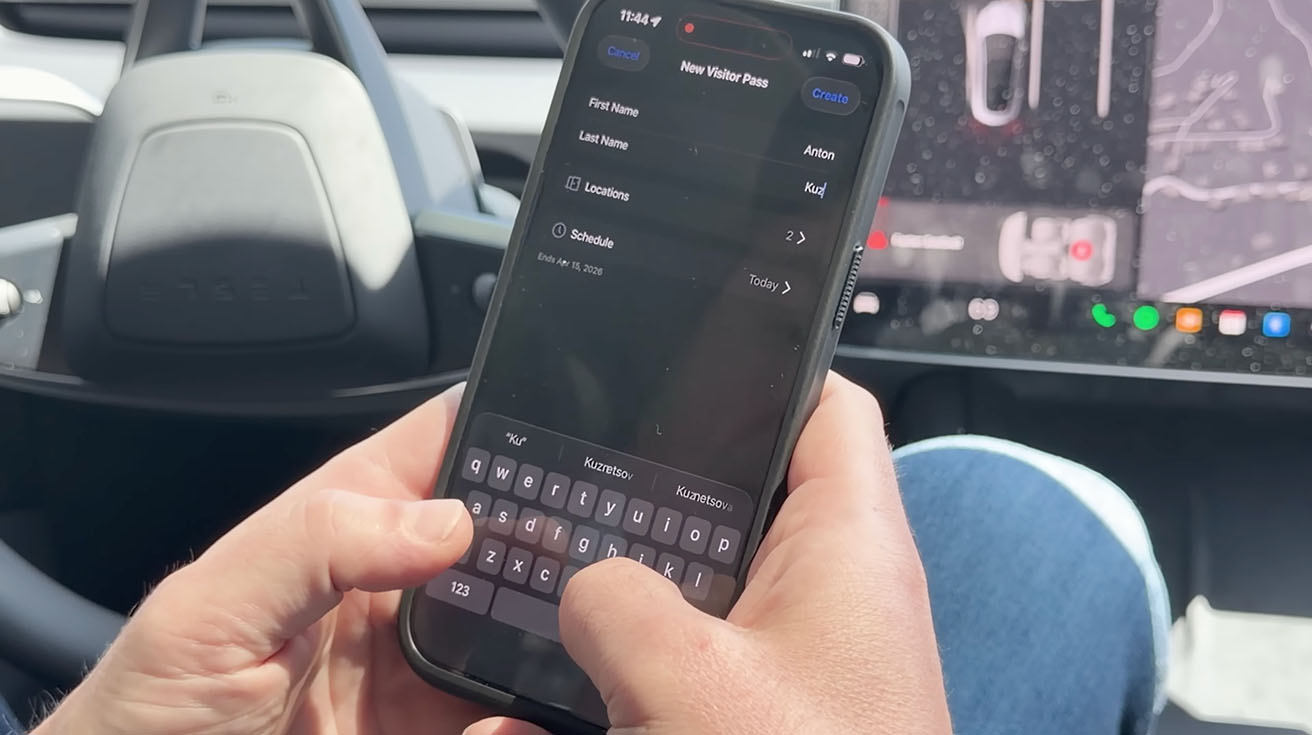

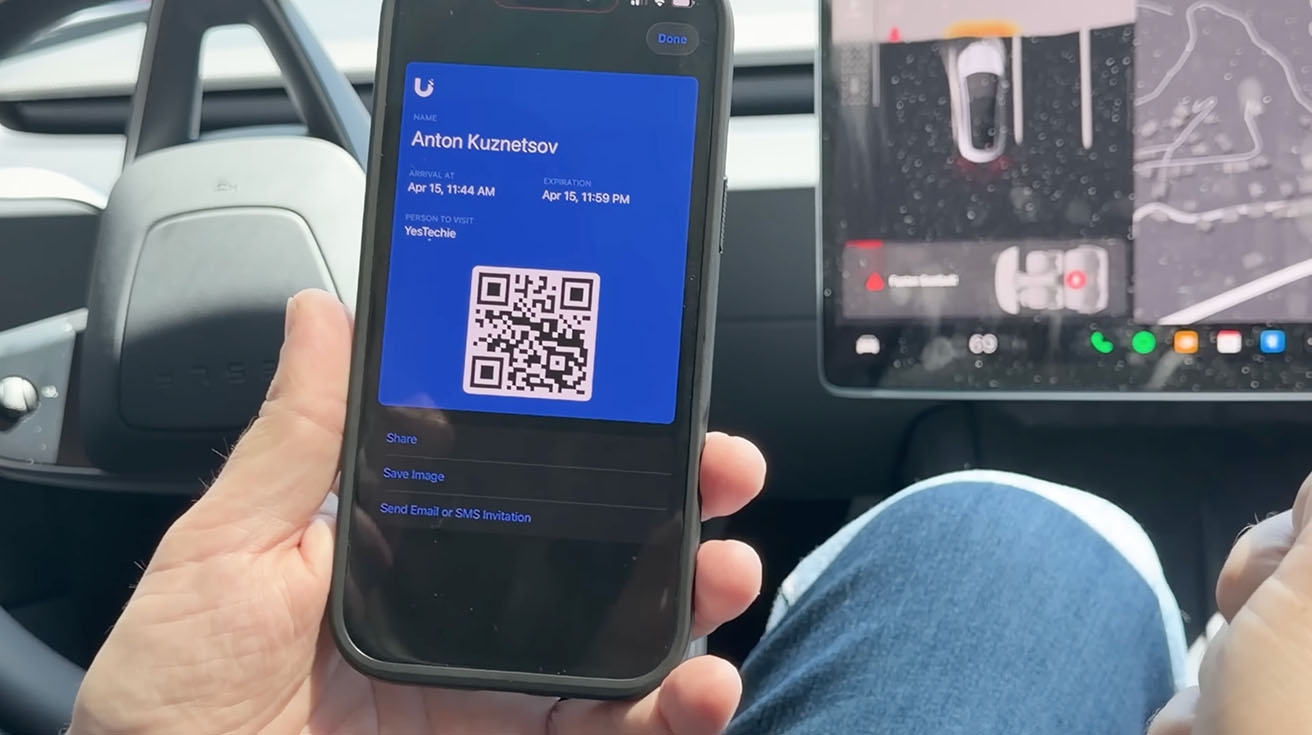

Creating Visitor QR Passes via UniFi Identity
Guest entry and delivery management were fully transitioned to digital credentials using temporary visitor QR passes. Within their mobile app, residents have an administrative dashboard to generate custom access codes. The configuration workflow is straightforward: the resident inputs the visitor’s name, selects which gate barriers are authorized (such as granting entry to the lower gate only or opening both checkpoints), and sets a strict active time window.
These windows can be restricted to specific hours, a single day, or set on a recurring weekly schedule for regular maintenance staff like housekeepers or landscapers. Once generated, the system outputs a secure, unique QR code that the resident can instantly text or email to the guest. This architecture establishes a strict digital audit trail, logging the exact time and identity of every person entering the perimeter, a feature missing from old-school keypad setups used in traditional installations of the UniFi Intercom system at double door gates.
Testing the Visitor Pass & Mobile Tap
We ran a live field test of the visitor workflow to verify the intercom’s processing speed. When a guest arrives at the gate line, they present the QR code on their phone screen to the optical scanner on the UniFi Intercom faceplate. The hardware reads the code, verifies the active time window against the local database, displays an automated "Welcome, Anton" greeting on the screen, and sends a secure signal to open the gate in under two seconds.
For the residents themselves, the entry sequence is even faster via the Mobile Tap feature. Utilizing built-in NFC and Bluetooth stack authentication, residents do not even need to open their phone's user interface. With the UniFi Identity app running silently in the background, the user simply taps their smartphone against the intercom chassis. The system instantly recognizes the encrypted digital token, greets the resident by name, and cycles the gate open. It is a completely touchless, highly secure everyday access workflow.
AI-Powered Onboarding: 160 Residents in 1 Hour

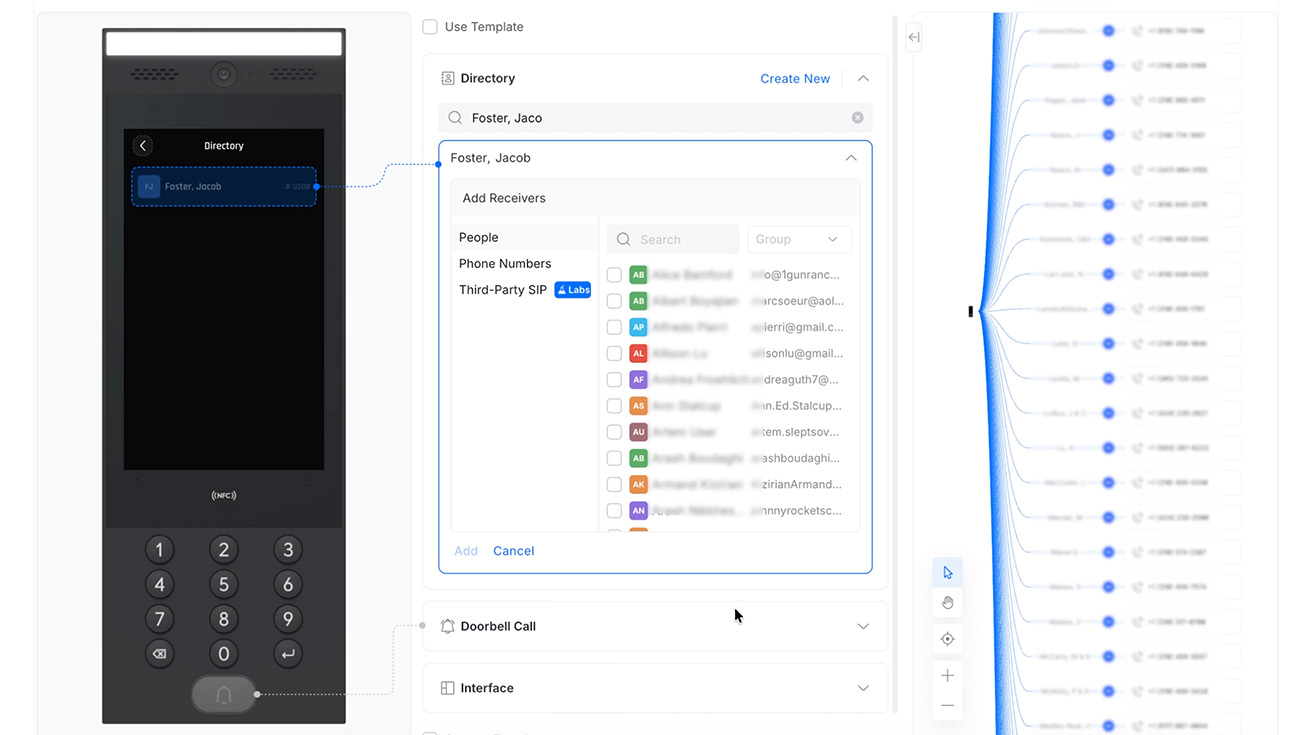

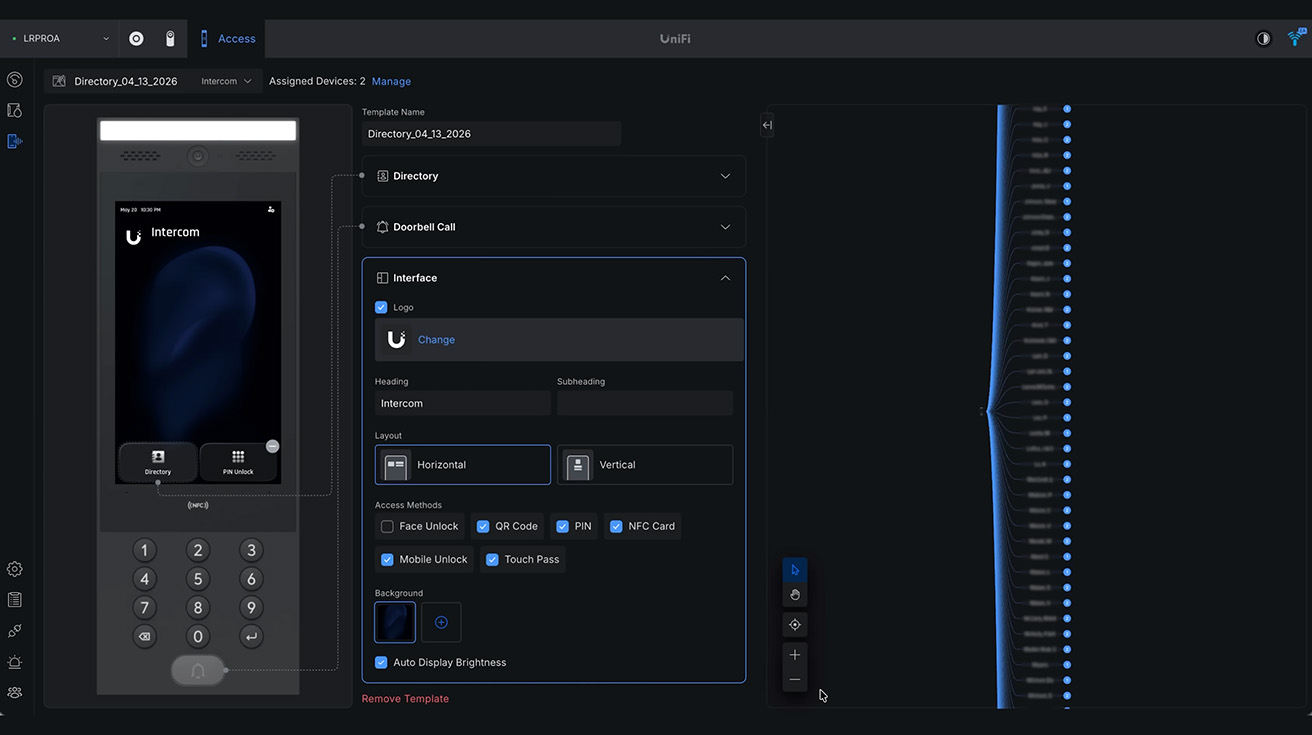

The most difficult bottleneck of any large HOA security migration is the initial user onboarding phase. For this community, we needed to register 160 users, link their mobile phone numbers for intercom directory routing, build the digital call directory, and map their license plates - with many households operating two or three separate vehicles. Managing this data entry manually would take days of administrative work and inevitably introduce typos and formatting errors.
Our team solved this by deploying an automated data-processing script to handle the migration in a single batch. We extracted the raw database layout from the property manager, structured the fields, and imported the entire user base into UniFi Access simultaneously. The automation mapped users to their respective households, linked their phone numbers, and populated the active LPR scanning profiles. The entire onboarding process took less than an hour, proving the massive efficiency of treating physical security deployment like optimized code.

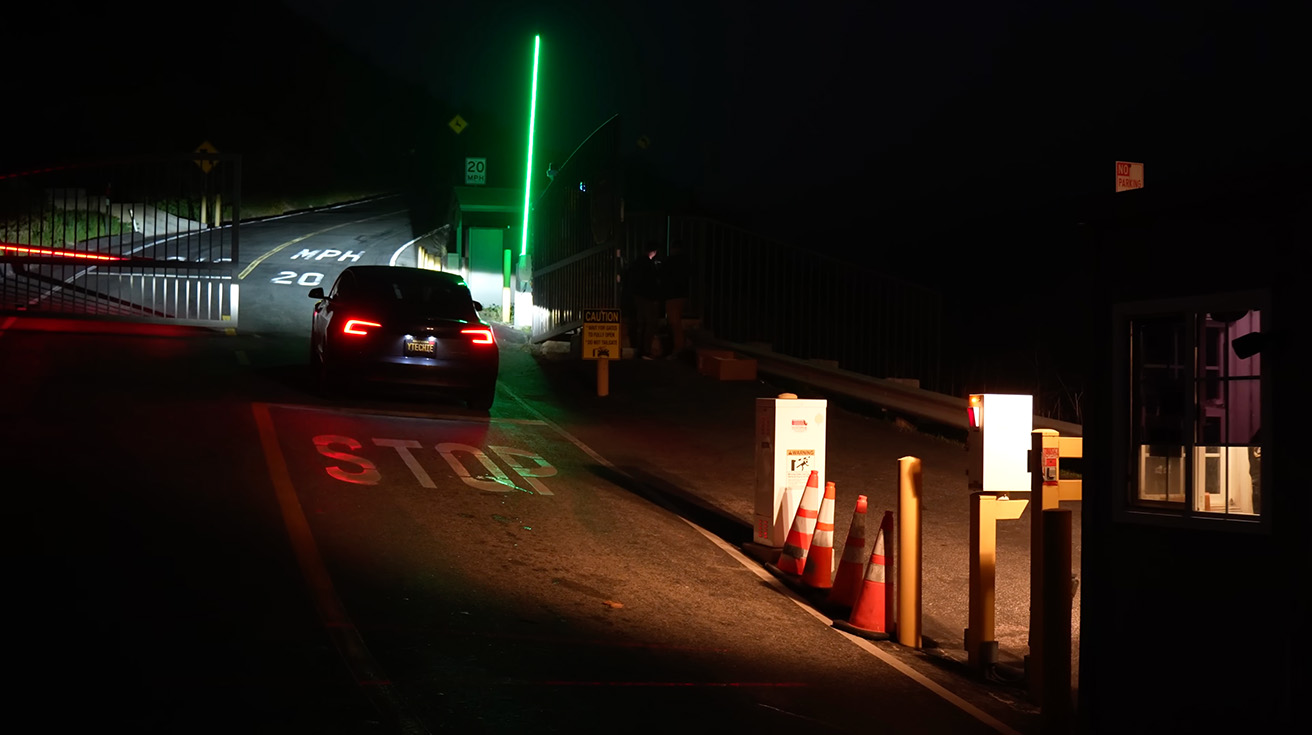

Final Summary & Working with YesTechie
The transition from a fire-damaged, unreliable analog database to a centralized UniFi user directory was completed with zero operational downtime. By bundling users into specific household profiles and linking their license plates and phone numbers under a single interface, daily management for this Malibu community is now completely transparent. Residents benefit from three secure, modern entry methods (LPR camera tracking, proximity Mobile Tap, or remote app commands), while the HOA board maintains an auditable, unalterable log of every single entry event across the property.
If you are an HOA board member, property manager, or facility director dealing with an outdated or failing access network, the YesTechie team is ready to step in. We don't just install off-the-shelf hardware. YesTechie engineers the critical technology solutions that power today's most demanding industries, bringing the same structural discipline required in defense, aerospace, and manufacturing straight to your property's perimeter.
As Certified Ubiquiti UniFi Integrators, we leverage over two decades of technical expertise to architect the intelligent ecosystems of a modern enterprise. We specialize in deploying AI-powered security, advanced access control, and resilient networks that completely eliminate recurring software licensing fees and optimize cable infrastructure. We manage the entire project lifecycle, from running long-distance fiber backbones to calibrating precision LPR fields and onboarding your management staff.
To see how we apply these same architectural principles to commercial properties, review our case study on Ubiquiti Access Control Installation for the Office, or reach out directly through our official service portal to schedule an on-site technical layout consultation and build the secure, reliable technological foundation your facility needs to operate with confidence.
Check out the video from this deployment:
FAQ: Gated Community Security & UniFi Integration
Can UniFi Access handle license plate recognition for gate entry?
Yes. When integrated with high-performance cameras like the G6 Pro and the UniFi Access Hub, the platform utilizes built-in AI analytics to read vehicle license plates. It matches the scan against the active resident directory and instantly sends a dry-contact trigger to open the automated driveway gates for verified vehicles.
How are temporary visitors managed in a gated community setup?
Residents can use the UniFi Identity app to generate temporary Visitor QR Passes. These passes are restricted to specific dates, times, and entry points. Upon arrival, the guest scans the code at the UniFi Intercom to open the gate. Visitors can also use the intercom's digital directory to make a direct video call to the resident's mobile device to request entry.
How does the system perform in areas with poor cellular service?
We eliminate cellular data dead zones at the gate perimeters by deploying dedicated wireless infrastructure, such as the UniFi U7 Pro Outdoor access point, at the entry lanes. This creates a strong, localized Wi-Fi zone, allowing approaching residents and delivery drivers to instantly connect and load their mobile app tokens or QR codes without carrier delays.
Is migrating a large community database to UniFi Access time-consuming?
No, when handled by an integrator using automated deployment tools. Instead of entering hundreds of names, phone numbers, and license plates manually, our team uses custom data scripts to import and map the entire HOA user list in a single batch. This populates the intercom directories and LPR databases in less than an hour.
How does the LPR camera handle cars that do not have a front license plate?
To accommodate vehicles missing front plates, we deploy a multi-camera array at the gate line. One camera targets the front of the vehicle, and a secondary camera is positioned to scan the rear plate as the vehicle passes the approach threshold. Precision recognition zones are then configured in UniFi Protect to ignore exiting vehicles on the cross-lane.
Can the community gates be cycled remotely if management is off-site?
Yes. The UniFi Identity Endpoint app allows authorized administrators and residents to trigger the gate control relays from anywhere in the world via a secure internet connection. This remote capability bypasses any proximity restrictions, making it easy to grant entry to emergency services, maintenance crews, or guests when no one is at the security gate.
