WiFi Network Installation for Cold Storage Warehouse
Environment:
The main large cold storage warehouse is where sorting and packaging of goods for import/export take place. There are nine separate freeze chambers with various temperatures for different types of products (flowers, vegetables/fruits, meat, etc.).
- Temperature in the main area: 34°F
- Temperature in separate refrigerated areas: 32°F to 0°F
- Ceiling height: 30 feet

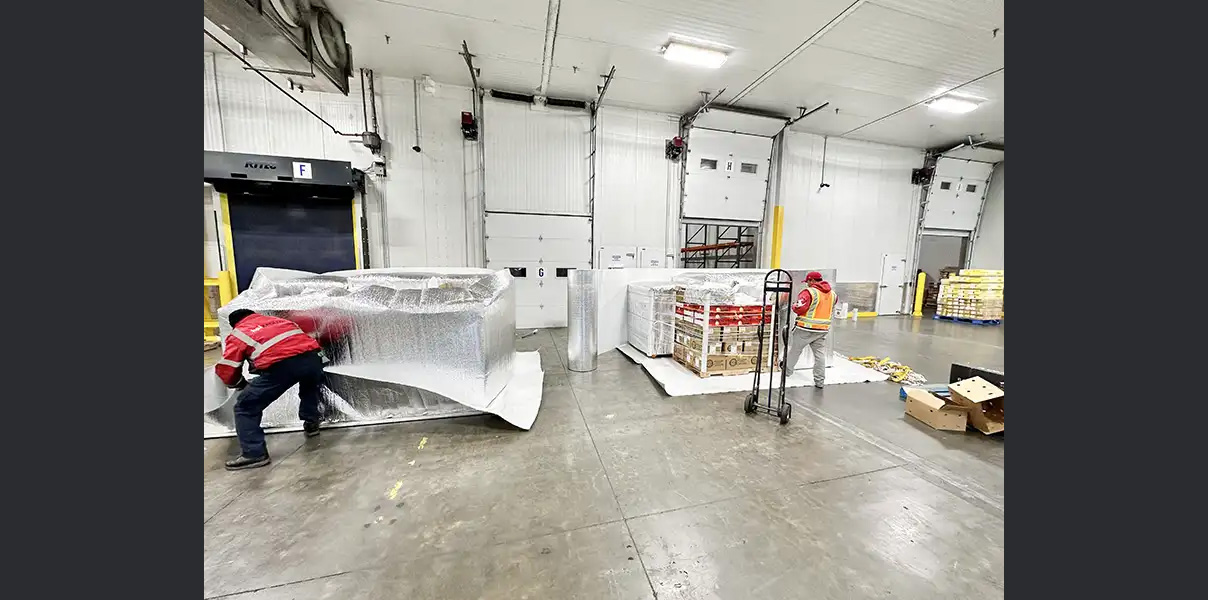

[Image: WIFI Access Point in cold environment — https://firebasestorage.googleapis.com/v0/b/yestechiecom.appspot.com/o/Projects%2FHPL%20APPOLO%2Fcold_hub.webp?alt=media&token=3010c478-6663-4aa5-8b72-cc11a4b584f9]
Requirements:
Seamless WiFi coverage throughout the entire hub, including the separate refrigerated areas.
Equipment:
- U6 Long-Range Access Points for the main area
- U6 Pro Access Points for refrigerated areas

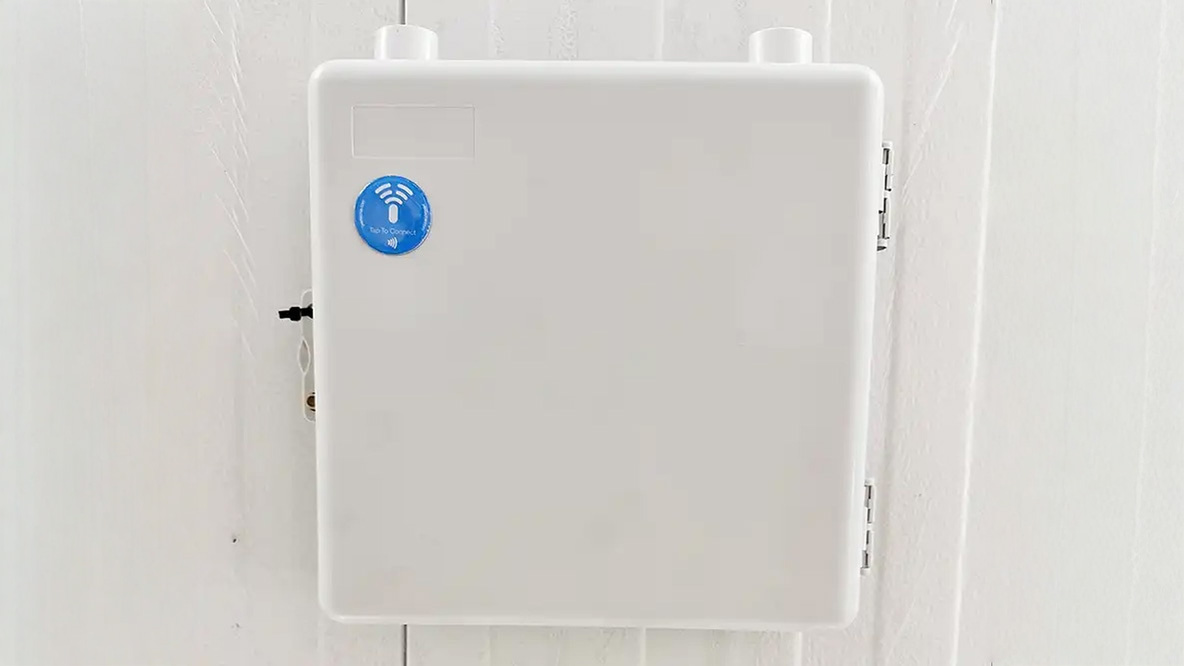

[Image: Weatherproof enclosure for wifi access point — https://firebasestorage.googleapis.com/v0/b/yestechiecom.appspot.com/o/Projects%2FHPL%20APPOLO%2Fweatherproof_box.webp?alt=media&token=24580928-332d-43ee-85ca-ea909df1994d]
Installing WiFi Access Points in Cold Environments
When setting up WiFi access points in cold environments like a cold logistics hub, it’s crucial to consider several factors to ensure reliable and robust network performance.
Temperature:
Operating temperature of Ubiquiti access points: -30 to 60°C (-22 to 140°F)
Humidity:

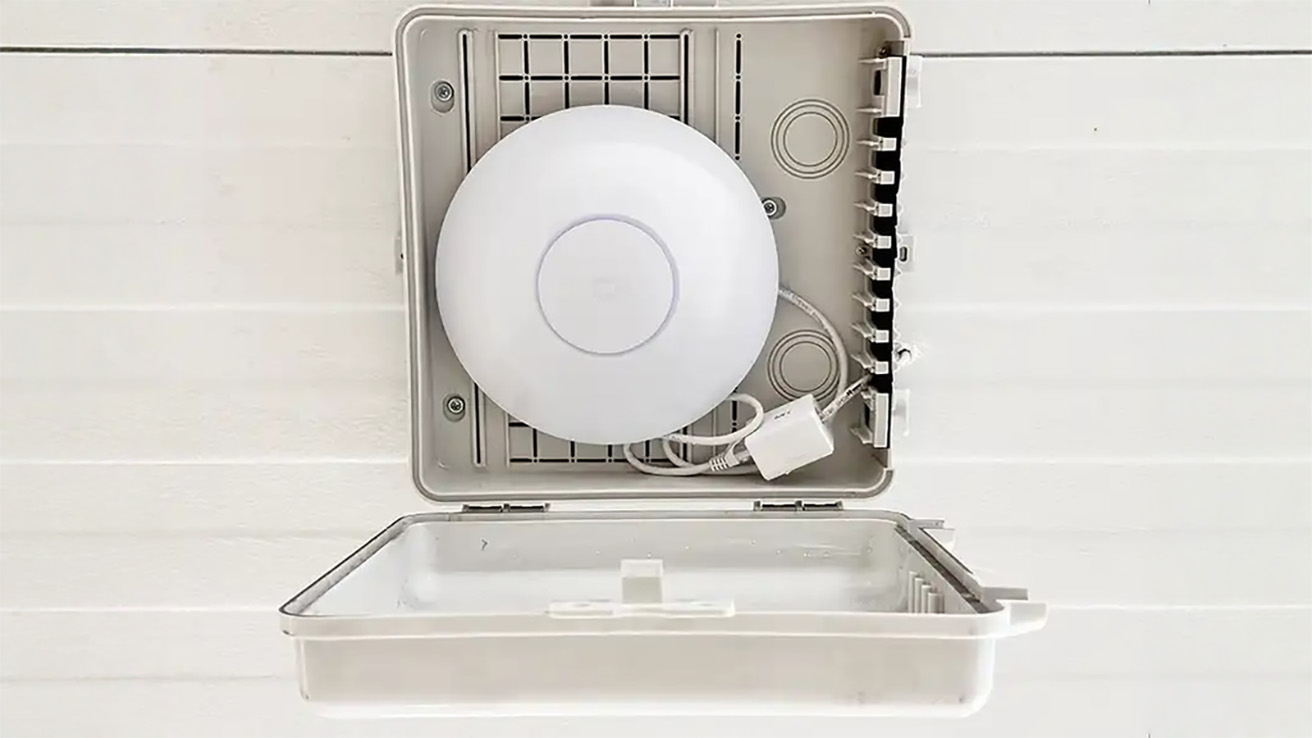

To protect against moisture, we used sealed weatherproof boxes.
[Image: Image — https://firebasestorage.googleapis.com/v0/b/yestechiecom.appspot.com/o/Projects%2FHPL%20APPOLO%2FAP_in_the_box.webp?alt=media&token=e7b01312-3d3b-4dc3-9198-923ab90b1d15]
Access Points Placement:
Three U6-LR access points were strategically placed to cover the large open space.
Nine U6-Pro access points, with one placed in each separate chamber to ensure seamless connectivity even in colder environments.
